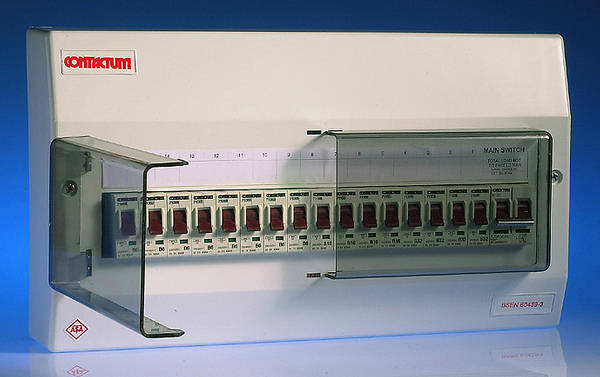

16 Way Insulated Consumer Unit - 100A Switch
Product Code: CM P16N
0
CM P16N
Loading …
Supplied less MCB's
Dimensions:
Height: 232mm
Width: 396mm
Depth: 116mm (inc. window)
Dimensions:
Height: 232mm
Width: 396mm
Depth: 116mm (inc. window)
16 Way Insulated Board with 100 Amp Switch
This unit makes installation easy with extra generous space between the terminal bars and MCBs.
MCBs are secured by a full din rail and the MCBs are removable from the run of busbar.
- MCBs (bought separately) have a terminal capacity of 25mm2 and the terminal bars 16mm2.
- Isolator: BS EN 60947-3 category AC22 terminal capacity 50mm2
- The enclosure is British made from a fire resistant material and the assembled unit is certified by ASTA to the rigorous BS 60439-3 standard.
Supplied less MCB's
Dimensions:
Height: 232mm
Width: 396mm
Depth: 116mm (inc. window)
Dimensions:
Height: 232mm
Width: 396mm
Depth: 116mm (inc. window)
Technical:Instructions - 198kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
CM P16N
16 Way Insulated Consumer Unit - 100A Switch |
Contactum MCB's ( Type B ) - 10KA
Loading …
Contactum
SP MCB's ( Type B ) - 10KA
SP MCB's ( Type B ) - 10KA
Contactum MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
|
