Category CAT6A - 4pr U/FTP Network Cable LSZH - Blue
Loading …
CA CAT6ALSZH/100
See product for Accessories
Category CAT6A
4pr U/FTP Network Cable LSZH - Blue
4pr U/FTP Network Cable LSZH - Blue
Application:
Internal Data transmission up to 10Gb/s.
General purpose foil screened single pair cables with a small outer diameter, frequently used in audio, data and instrumentation applications.
Polyethylene insulation results in lower signal loss than standard PVC insulation.
Internal Data transmission up to 10Gb/s.
General purpose foil screened single pair cables with a small outer diameter, frequently used in audio, data and instrumentation applications.
Polyethylene insulation results in lower signal loss than standard PVC insulation.
- Conductor Diam: 0.55 ±0.005mm.
- AWG: 23.
- Insulation: PE.
- Insulation Thickness (mm): 0.36
- Insulation Diameter (mm): 1.28 ±0.05
- Insulation Colours:
Blue, White/Blue;
Orange, White/Orange;
Green, White/Green;
Brown, White/Brown - Max Conductor DC resistance @ 20°C: <93.8O/km
- Rated Temperature: 70°C
- Impedance (1-100MHz): 100O ±15O
- Standards: ISO/IEC 11801, ANSI/TIA 568-C.2, CE2014/30/EU, LVD 2014/35/EU,RoHS2 2011/65/EU
- Al-MYLAR Shield: >=115% on each pair on each pair.
- Drain Wire: Tinned Copper Conductor with a diameter: 0.55 ±0.005.
- Nylon Rip-Cord: White 210D.
- Jacket: LSZH.
- Jacket Thickness (mm): 0.50 ±0.05.
- Overall Diameter (mm): 6.80 ±0.50.
- Jacket Colour: Blue RAL 5012.
- Sheath Printing: Cat 6A U/FTP 4PR 23AWG LSZH ISO/IEC 11801 ANSI/TIA 568C.2 (PO) (m)
- Reaction to Fire: Eca.
| See product for Accessories |
Technical:CACAT6ALSZH/100 Network Wiring |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Metres
|
|---|---|

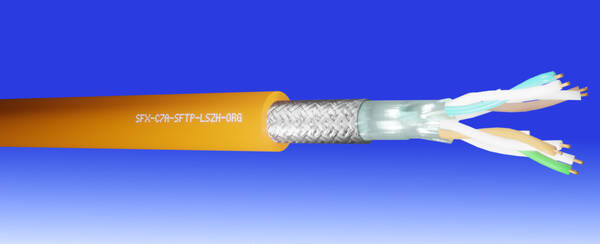

Category CAT7A - 4pr S/FTP Network Cable LSZH - Orange - 100Mtr
Loading …
CA CAT7ALSZH/100
See product for Accessories
Category CAT7A
4pr S/FTP Network Cable LSZH
Orange - 100Mtr
4pr S/FTP Network Cable LSZH
Orange - 100Mtr
Overall screened multicored data cable RS232.
Uses include RS232, instrumentation and sound applications where balanced lines are not required.
Conductor: Bare Copper.
Uses include RS232, instrumentation and sound applications where balanced lines are not required.
Conductor: Bare Copper.
- Conductor Diam: 0.58 ±0.01mm.
- AWG: 23.
- Insulation: Skin-Foam-Skin PE.
- Insulation Thickness (mm): 0.18
- Insulation Diameter (mm): 1.38 ±0.10
- Insulation Colours:
Blue,White/Blue;
Orange,White/Orange;
Green,White/Green;
Brown/White/Brown. - Max Conductor DC resistance @ 20°C: <93.8O/km
- Rated Temperature: 70°C
- Impedance (1-100MHz): 100O ±15O/100O ±18O/100O ±25O
- Application: Internal Data transmission up to 40Gb/s up to 30m in data centres.
- Standards: ISO/IEC 11801, ANSI/TIA 568C.2-D, CE2014/30/EU, LVD 2014/35/EU, RoHS2 2011/65/EU.
- Al-MYLAR Shield: >=115% on each pair on each pair.
- Drain Wire: Tinned Copper Conductor with a diameter: 0.40 ±0.01.
- Braid: Aluminium-Magnesium alloy.
- Braid Construction: 0.12 ±0.008 x 8 x 6.
- Braid Coverage: >=40%.
- Nylon Rip-Cord: White 210D.
- Jacket: LSZH.
- Jacket Thickness (mm): 0.55 ±0.05.
- Overall Diameter (mm): 7.80 ±0.50.
- Jacket Colour: Orange RAL 2003.
- Sheath Printing: Cat 7A S/FTP 4 PR 23AWG LSZH ISO/IEC 11801 EN 50173-1:2011 (PO) (m)
- Reaction to Fire: Dca -s1b -a1 -d2.
| See product for Accessories |
Technical:CACAT7ALSZH/100 Network Wiring |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Metres
|
|---|---|

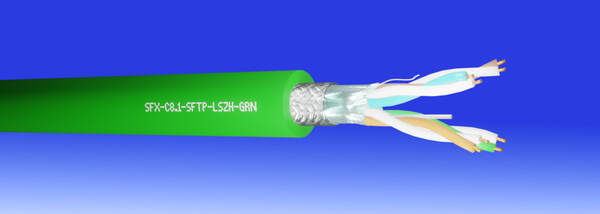

Category CAT8.1 - 4pr S/FTP Network Cable LSZH - Green - 100Mtr
Loading …
CA CAT8.1LSZH/100
See product for Accessories
Category CAT8.1
4pr S/FTP Network Cable LSZH
Green - 100Mtr
4pr S/FTP Network Cable LSZH
Green - 100Mtr
Overall screened multicored data cable RS232.
Uses include RS232, instrumentation and sound applications where
balancedlines are not required - can be used for Paxton Readers.
This cabling is specially designed to transport data at a speed of 40 Gb / s over 30 meters.
It is aimed at data center applications for connecting equipment that has 40GBase-T ports.
Conductor: Bare copper.
Uses include RS232, instrumentation and sound applications where
balancedlines are not required - can be used for Paxton Readers.
This cabling is specially designed to transport data at a speed of 40 Gb / s over 30 meters.
It is aimed at data center applications for connecting equipment that has 40GBase-T ports.
Conductor: Bare copper.
- Conductor Diam: 0.596 ±0.005mm.
- AWG: 22.
- Insulation: Skin-Foam-Skin PE.
- Insulation Thickness (mm): 0.44
- Insulation Diameter (mm): 1.48 ±0.05.
- Max Conductor DC resistance @ 20°C: <95O/km
- Rated Temperature: 70°C
- Impedance (1-100MHz): 100O ±5
- Application: Internal Data transmission up to 40Gb/s up to 30m in data centres.
- Standards: ISO/IEC 11801, ANSI/TIA 568C.2-D, CE2014/30/EU, LVD 2014/35/EU, RoHS2 2011/65/EU.
- Al-MYLAR Shield: >=115% on each pair on each pair.
- Drain Wire: Tinned Copper Conductor with a diameter: 0.40 ±0.01.
- Braid: Aluminium-Magnesium alloy.
- Braid Construction: 0.12 ±0.008 x 8 x 6.
- Braid Coverage: >=40%.
- Nylon Rip-Cord: White 210D.
- Jacket: LSZH.
- Jacket Thickness (mm): 0.55 ±0.05.
- Overall Diameter (mm): 8.00 ±0.50.
- Jacket Colour: Green RAL 6018.
- Sheath Printing: Cat 8.1 S/FTP 4PR 23AWG LSZH ISO/IEC 11801 ANSI/TIA 568C.2-D (PO) (m).
- Reaction to Fire: Dca -s1b -a1 -d2.
| See product for Accessories |
