Navara SF Select LED Bulkhead - CCT & Wattage Switchable - IP65
Loading …
GL SF330
GL SF331
Diameter: 300mm
Projection: 84mm
Conduit entries:
20mm
Navara SF Select LED Bulkhead
CCT & Wattage Switchable - IP65
CCT & Wattage Switchable - IP65
The Navara SF Select surface fittings are the ultimate bulkhead solution.
As standard, fittings are triple CCT & multi-wattage selectable.
Selectable:
Colour temperature of 3000K, 4000K or 6000K
Wattage output of 10W, 14W or 20W
Suitable for wall or ceiling mounting.
As standard, fittings are triple CCT & multi-wattage selectable.
Selectable:
Colour temperature of 3000K, 4000K or 6000K
Wattage output of 10W, 14W or 20W
Suitable for wall or ceiling mounting.
- Wattage selectable: 10W, 14W or 20W
- Colour temperature selectable: 3000K, 4000K or 6000K
- CRI: Ra>84
- Up to 128 lumens per circuit Watt
- Lumen output (3000/4000/6000K):
10W - 1145/1261/1212lm
14W - 1457/1658/1559lm
20W - 1819/2126/1947lm - Wall or ceiling mountable
- Multiple cable entries (side or rear - 20mm)
- Suitable for Besa Box mounting
- Class II
- IP65/IK10
- Polycarbonate body and diffuser
- L70 - 40,000hrs
- 5 year warranty
- Available in Standard & Emergency versions
Diameter: 300mm
Projection: 84mm
Conduit entries:
20mm
Technical:Datasheet - 750kb pdf Instructions - 360kb pdf Instructions - 790kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
JCC RadiaLED Rapid 12W 4000K Bulkhead White - IP65
Loading …
JCC
RadiaLED Rapid 12W 4000K Bulkhead
White - IP65
RadiaLED Rapid 12W 4000K Bulkhead
White - IP65
Designed with electricians, for electricians.
The RadiaLED Rapid range of bulkheads have been designed specifically with the installer/end user in mind. Following feedback from electricians, JCC have created a product which is 2.5x faster to install than traditional bulkheads.
RadiaLED bulkheads feature a range of cable entry points for maximum flexibility during installation, including central and offset rear entry points, in addition to 20mm conduit entry points on the top, bottom, sides and rear.
The wiring terminal is detachable to allow for a faster, less fiddly wiring connection. In order to further increase the speed of installation, the LED gear tray features a clip-in, tool-less design which also allows for ease of maintenance or replacement in the future. A nylon tether keeps the gear tray attached to the fitting- ideal for working at height to alleviate any risk of dropping components.
The RadiaLED features a clip-on white rim, rather than a twist-on variant, to allow the installer to easily conceal any conduit entry points utilised during installation, providing a neat finish.
The RadiaLED Rapid range of bulkheads have been designed specifically with the installer/end user in mind. Following feedback from electricians, JCC have created a product which is 2.5x faster to install than traditional bulkheads.
RadiaLED bulkheads feature a range of cable entry points for maximum flexibility during installation, including central and offset rear entry points, in addition to 20mm conduit entry points on the top, bottom, sides and rear.
The wiring terminal is detachable to allow for a faster, less fiddly wiring connection. In order to further increase the speed of installation, the LED gear tray features a clip-in, tool-less design which also allows for ease of maintenance or replacement in the future. A nylon tether keeps the gear tray attached to the fitting- ideal for working at height to alleviate any risk of dropping components.
The RadiaLED features a clip-on white rim, rather than a twist-on variant, to allow the installer to easily conceal any conduit entry points utilised during installation, providing a neat finish.
Technical:JC070075 Datasheet - 450kb pdf RadiaLED Instructions - 1.3mb pdf JC070076 Datasheet - 460kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Timeguard 12W Slim LED Wall/Ceiling Light
Loading …
SM SR12B
SM SR12W
Dimensions
Diameter 211mm,
Depth 55mm
Diameter 211mm,
Depth 55mm
Timeguard
12W Slim LED Energy Saver
Wall/Ceiling Light IP54
12W Slim LED Energy Saver
Wall/Ceiling Light IP54
A range of powerful and energy saving wall and ceiling lights, instantly bright like halogens but at a fraction of the running costs.
The robust polycarbonate lens and housing makes them ideal for industrial, commercial and home installations for both indoor and outdoor use.
The robust polycarbonate lens and housing makes them ideal for industrial, commercial and home installations for both indoor and outdoor use.
Dimensions
Diameter 211mm,
Depth 55mm
Diameter 211mm,
Depth 55mm
Technical:SMSR12B Instructions 276kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
LEDlite 12W LED Ceiling Light
Loading …
Dia: 255mm
Depth: 60mm
Depth: 60mm
LEDlte
12W LED Ceiling Light 4000K
Aluminium Trim, Opal Cover
12W LED Ceiling Light 4000K
Aluminium Trim, Opal Cover
LED Ceiling Lights with magnetic LED module, easy to install
and maintain. Ideal for common areas of domestic and
commercial environments: Multiple Blocks of Flats, Workshops,
Garages, Warehouses, Sports Halls etc.
and maintain. Ideal for common areas of domestic and
commercial environments: Multiple Blocks of Flats, Workshops,
Garages, Warehouses, Sports Halls etc.
Dia: 255mm
Depth: 60mm
Depth: 60mm
Technical:Data Sheet - 3Mb PDF Install - 1.6Mb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Timeguard LED Round Bulkhead Lights
Loading …
7w - Dia:150mm x D:55mm.
15w - Dia:185mm x D:65mm
25w - Dia:240mm x D:70mm.
Timeguard
LED Round Bulkhead Lights
LED Round Bulkhead Lights
15 watts = 80 watts Lighting
25 watts = 135 watts Lighting
A powerful and energy saving alternative to standard bulkhead lights.
LED Bulkhead Lights are instantly bright like halogens but with only 20% of the running costs.
Wide light diffusion pattern.
Robust die cast housing with tough polycarbonate lens suitable for industrial, commercial and home installations.
IP65 weatherproof rating.
7w - Dia:150mm x D:55mm.
15w - Dia:185mm x D:65mm
25w - Dia:240mm x D:70mm.
Technical:SMBHR15W Instructions 280kb pdf SMBHR25W Instructions 280kb pdf SMBHR7W Instructions 280kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

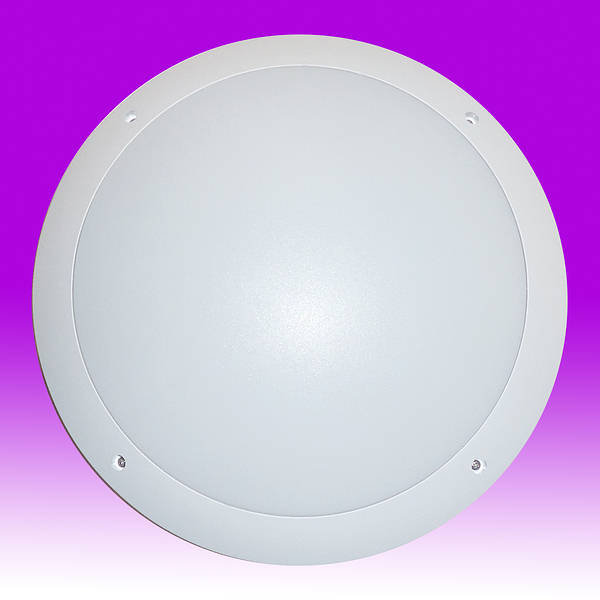

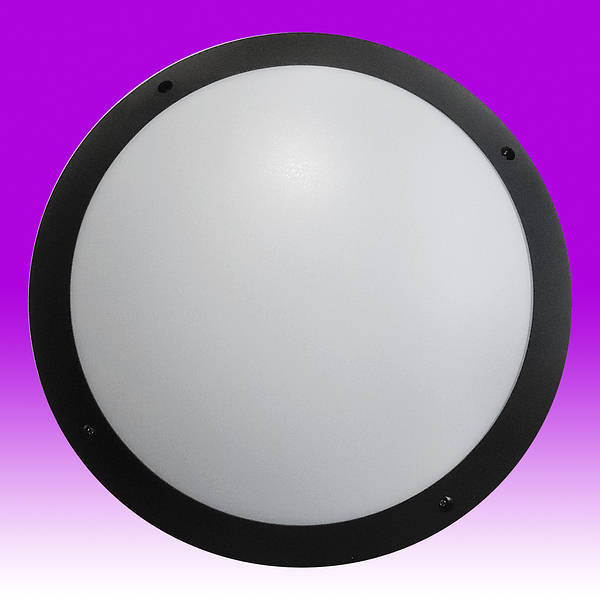

LED Wall / Ceiling Light
Loading …
LED Wall / Ceiling Light - Black or White
11W LED - 4000K
11W LED - 4000K
a multitude of applications in a domestic or commercial setting including perimeter lighting,
paths, gardens and porches, communal areas, staircases and many more.
Technical:Datasheet - 225kb pdf Installation - 990kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
LED Wall / Ceiling Light with Sensor
Loading …
LED Wall / Ceiling Light - Black or White
11W LED - 4000K
with Microwave Movement Sensor
11W LED - 4000K
with Microwave Movement Sensor
a multitude of applications in a domestic or commercial setting including perimeter lighting,
paths, gardens and porches, communal areas, staircases and many more.
Technical:Datasheet - 225kb pdf Installation - 990kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

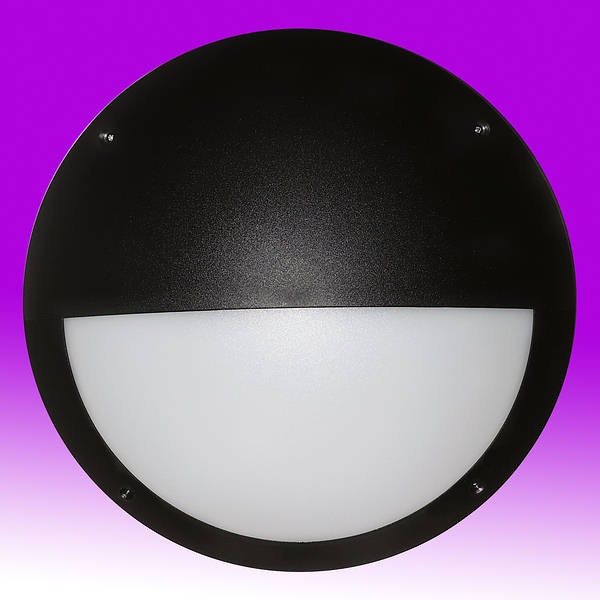

LED Wall Light
Loading …
LED Eyelid Wall Light - Black or White
11W LED - 4000K
11W LED - 4000K
a multitude of applications in a domestic or commercial setting including perimeter lighting,
paths, gardens and porches, communal areas, staircases and many more.
Technical:Datasheet - 225kb pdf Installation - 990kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
LED Wall Light With Sensor
Loading …
LE EYEMBK
LED Eyelid Wall Light
11W LED - 4000K
with Microwave Movement Sensor
11W LED - 4000K
with Microwave Movement Sensor
a multitude of applications in a domestic or commercial setting including perimeter lighting,
paths, gardens and porches, communal areas, staircases and many more.
Technical:Datasheet - 225kb pdf Installation - 990kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
12W LED Bulkhead 4000K - IP54
Loading …
Contract
12W LED Bulkhead 4000K - IP54
12W LED Bulkhead 4000K - IP54
230V 12W IP54 LED Bulkhead. Robust, low energy, LED, surface mounted, exterior/interior, circular bulkhead.
Suitable for both commercial and domestic use.
Rated IP54 and produces 1000 lm. Cool white .
Light source included. Long life , Low Maintenance, Energy Efficient.
Suitable for both commercial and domestic use.
Rated IP54 and produces 1000 lm. Cool white .
Light source included. Long life , Low Maintenance, Energy Efficient.
Technical:RTBL12 Datasheet RTBL12 Instructions RTBL12 Line Drawing |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
12W LED Bulkhead 4000K - IP54 Special Offer |
