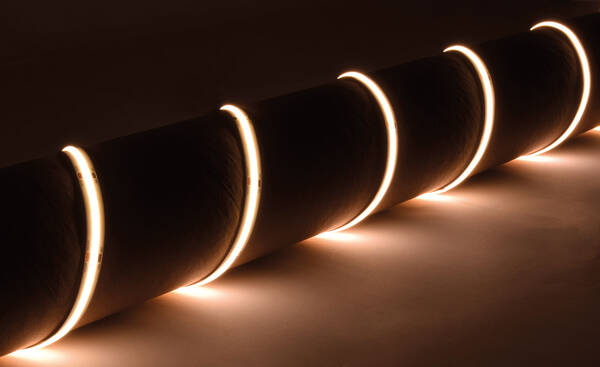

24V COB LED Tape 5m
See product for Accessories, Power Supplies and Profiles
24V COB LED Tape
5m Reel
5m Reel
The COB (chip on board) technology consists of 528 tightly packed LEDs per metre and a phosphor layer coating
which diffuses the LEDs into a seamless array of light.
The flexible COB strip is supplied on a 5m reel and can be cut to the desired length along designated
cutting points, situated at 45mm intervals.
Each strip is equipped with a self-adhesive backing for easy installation.
Flexible and lightweight, the 24V DC COB strip has a high CRI of 90 making it suitable for a wide variety of applications, such as in hospitality, retail, offices, displays, exhibitions and more.
IP20 rated - for indoor use only.
Power supply not included.
which diffuses the LEDs into a seamless array of light.
The flexible COB strip is supplied on a 5m reel and can be cut to the desired length along designated
cutting points, situated at 45mm intervals.
Each strip is equipped with a self-adhesive backing for easy installation.
Flexible and lightweight, the 24V DC COB strip has a high CRI of 90 making it suitable for a wide variety of applications, such as in hospitality, retail, offices, displays, exhibitions and more.
IP20 rated - for indoor use only.
Power supply not included.
- Voltage: 24V DC
- Power consumption per metre: 12W
- Current: 500mA per metre
- Beam angle: 180°
- Reel length: 5m
- Cut intervals: 45mm
- LED quantity per metre: 528
- LED spacing: 2mm
- LED type: Sanan
- Colour rendering index: Ra>90
- Fitted with a 2.1mm jack for easy power supply connection
- IP Rating: IP20
| See product for Accessories, Power Supplies and Profiles |
Technical:SK156665 Instructions - 210kb pdf SK156666 Instructions - 210kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

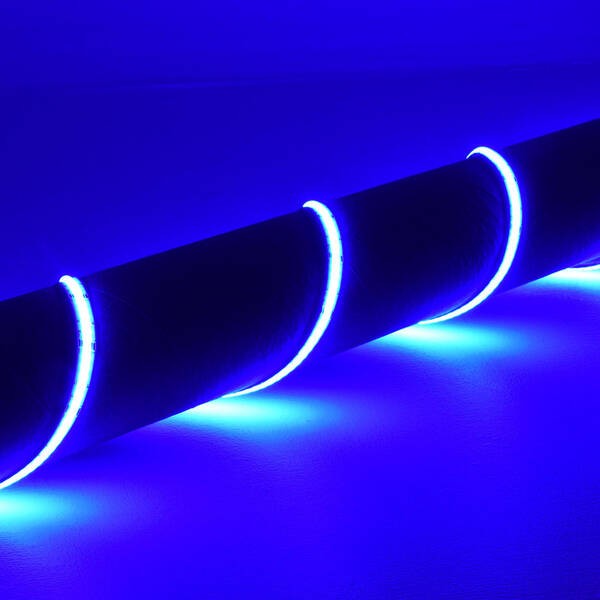

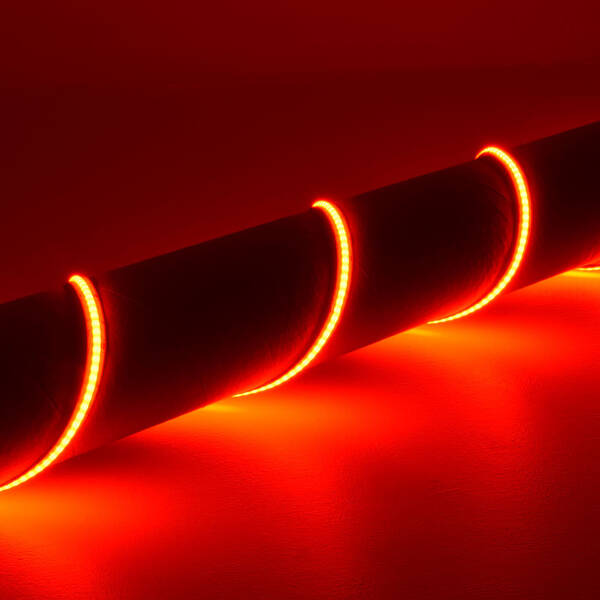

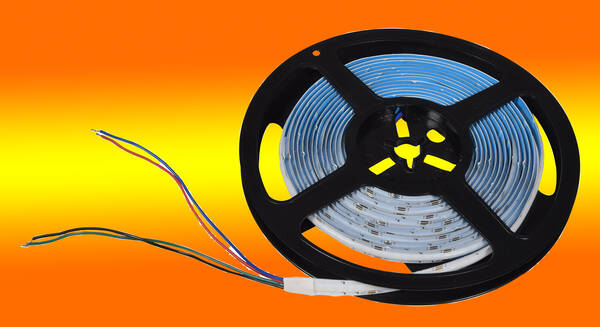

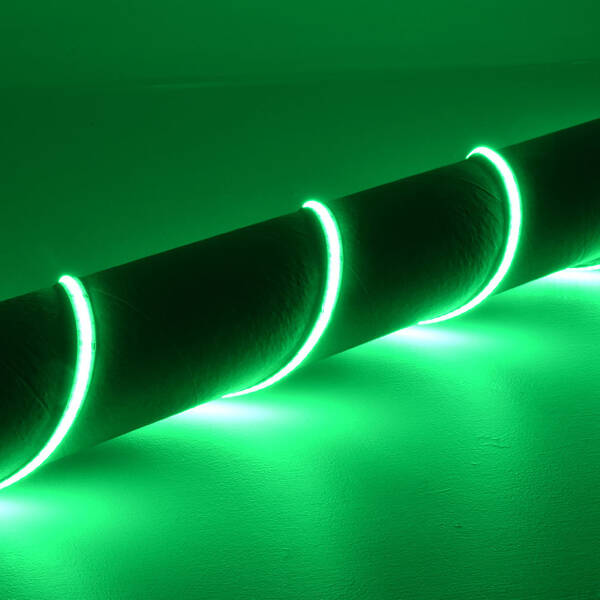

24V RGB COB LED Tape - 5m
See product for Accessories, Power Supplies and Profiles
24V RGB COB LED Tape - 5m
Multi-colour RGB COB LED tape provides a continuous linear lighting solution.
The COB (chip on board) technology consists of 840 tightly packed LEDs per metre and a phosphor layer coating
which diffuses the LEDs into a seamless array of light.
The flexible COB strip is supplied on a 5m reel and can be cut to desired length along the designated
cutting points, situated at 50mm intervals.
Each strip is equipped with a self-adhesive backing for easy installation.
Flexible and lightweight, the 24V DC COB tape is suitable for a wide variety of applications, such as in
hospitality, retail, offices, displays, exhibitions and more.
IP20 rated - for indoor use only.
Power supply not included.
The COB (chip on board) technology consists of 840 tightly packed LEDs per metre and a phosphor layer coating
which diffuses the LEDs into a seamless array of light.
The flexible COB strip is supplied on a 5m reel and can be cut to desired length along the designated
cutting points, situated at 50mm intervals.
Each strip is equipped with a self-adhesive backing for easy installation.
Flexible and lightweight, the 24V DC COB tape is suitable for a wide variety of applications, such as in
hospitality, retail, offices, displays, exhibitions and more.
IP20 rated - for indoor use only.
Power supply not included.
- Voltage: 24V DC
- Number of LEDs: 840/m
- Power consumption per metre: 11.64W/m
- Current: 485mA/m
- Colour: RGB
- Colour rendering index: Ra>80
- Lumens: 100lm/w
- Beam angle: 120°
- Cut intervals: 50mm
- Reel length: 5m
- LED type: Sanan
- LED spacing: 0.97mm
- Cross section: 10 x 2.2mm
- IP rating: IP20
| See product for Accessories, Power Supplies and Profiles |
Technical:SK156667 Instructions - 205kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

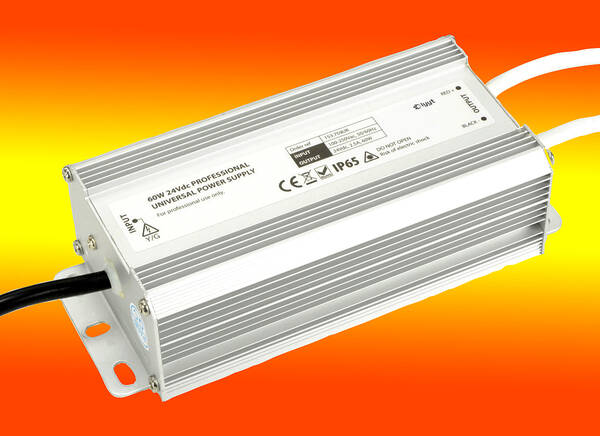

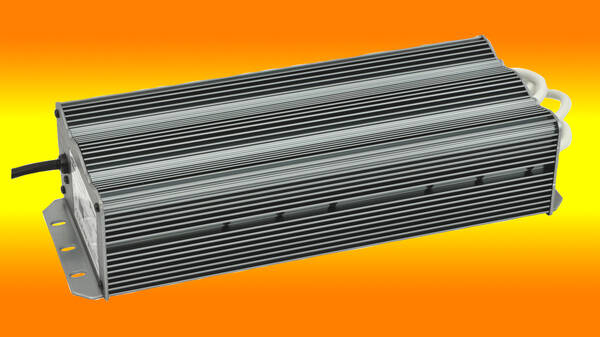

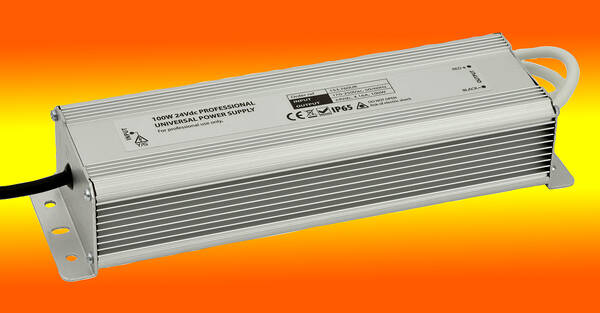

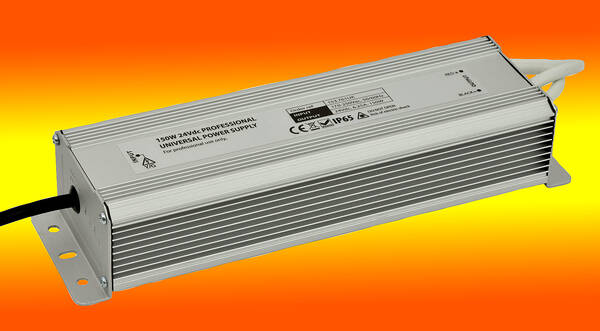

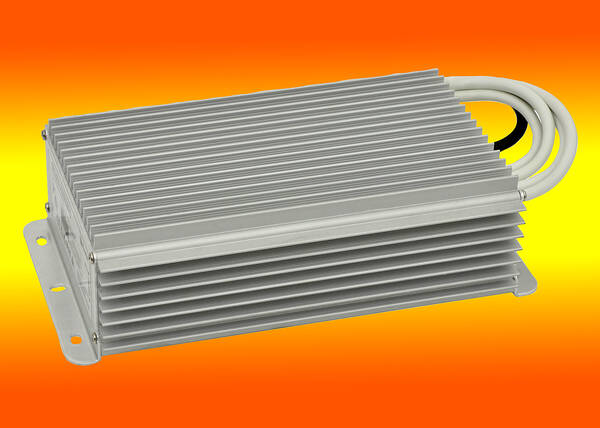

Power Supplies 24V DC
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Aluminium Profiles for LED Tape Installation - 1 Mtr
Aluminium Profiles for LED Tape Installation
1 Mtr Lengths
1 Mtr Lengths
Supplied complete with diffuser and installation accessories
Batten, crown and arc diffusers can be snap-fit
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Aluminium Profiles for LED Tape Installation - 2 Mtr
Aluminium Profiles for LED Tape Installation
2 Mtr Lengths
2 Mtr Lengths
A range of extruded aluminium profile strips with diffusers and fitting accessories for LED tape installation. Ideal for illuminating furniture or architectural details.
Supplied complete with diffuser and installation accessories
Batten, crown and arc diffusers can be snap-fit
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

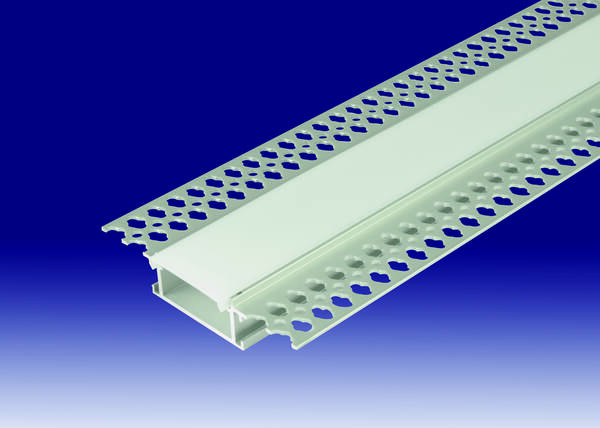

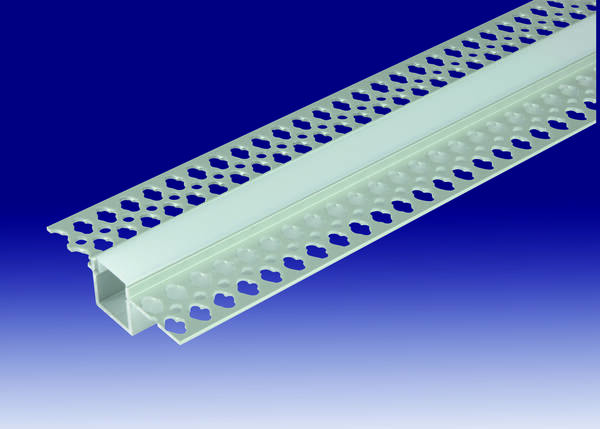

Aluminium Profiles - Plaster in Profiles
Aluminium Profiles for LED Tape Installation
Flush - Plaster in Profiles
1 Mtr Lengths
Flush - Plaster in Profiles
1 Mtr Lengths
Plaster-in LED Tape Profiles offer a premium finish for those looking to build LED lights into a more permanent fixture.
This flush mounted profile requires 1 strip of LED tape max 12mm wide
and is supplied with a white diffuser to give an ambient glow.
This flush mounted profile requires 1 strip of LED tape max 12mm wide
and is supplied with a white diffuser to give an ambient glow.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

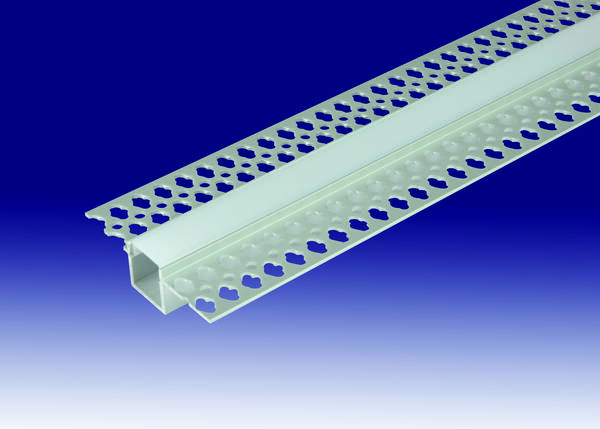

Aluminium Flush - Plaster in Profiles for LED Tape Installation - 2 Mtr
Aluminium Profiles for LED Tape Installation
Flush - Plaster in Profiles
2 Mtr Length
Flush - Plaster in Profiles
2 Mtr Length
Please Note 2 Mtr Lengths can only be collected or delivered by our Local Van delivery service
Plaster-in LED Tape Profiles offer a premium finish for those looking to build LED lights into a more permanent fixture.
This flush mounted profile requires 1 strip of LED tape max 12mm wide
and is supplied with a white diffuser to give an ambient glow.
Plaster-in LED Tape Profiles offer a premium finish for those looking to build LED lights into a more permanent fixture.
This flush mounted profile requires 1 strip of LED tape max 12mm wide
and is supplied with a white diffuser to give an ambient glow.
|
