Alabama LED Emergency Exit Box - Self Test
Loading …
EM AB3ST
Height: 196mm.
Width: 392mm.
Depth: 30mm.
Alabama LED Emergency Exit Box
Maintained
Self Test
Maintained
Self Test
Wall Mounting
The EMAB3ST is a LED maintained emergency exit box, low energy, ultra slim alternative to conventional exit boxes.
It has self-test functionality, 3 hour maintained mode as standard
Interchangeable up, down, left & right arrow exit legends included.
Applications: corridors, exits, escape routes.
The EMAB3ST is a LED maintained emergency exit box, low energy, ultra slim alternative to conventional exit boxes.
It has self-test functionality, 3 hour maintained mode as standard
Interchangeable up, down, left & right arrow exit legends included.
Applications: corridors, exits, escape routes.
- Input Voltage: 220-240V/AC.
- Power: 3.8W.
- Light Output: 25Lm (charging) - 48Lm (discharging).
- Viewing Distance: 30m max.
- Test method: Self-test.
- CCT: 6500K.
- IP Rating: IP20.
- Protection Class: Class II.
- Housing: PC Body & Acrylic Lit Panel.
- Wall Mounting.
- Battery: LiFePO4 3.2V 1500mAh.
- 4 Legends included.
Height: 196mm.
Width: 392mm.
Depth: 30mm.
Technical:EMAB3ST Datasheet 540kb EMAB3ST Instructions 630kb - pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
LED 3W Ultra Slim Emergency Bulkhead - Self Test
Loading …
EM SB3ST
LED 3W Ultra Slim Emergency Bulkhead
Self Test
Self Test
The EMSB3ST is a LED maintained emergency exit bulkhead, low energy, ultra slim alternative to conventional exit bulkheads.
It has self-test functionality, 3 hour maintained mode as standard and can also be configured for non maintained operation.
Interchangeable up, down, left & right arrow exit legends included.
Applications: corridors, exits, escape routes.
It has self-test functionality, 3 hour maintained mode as standard and can also be configured for non maintained operation.
Interchangeable up, down, left & right arrow exit legends included.
Applications: corridors, exits, escape routes.
Technical:EMSB3ST Datasheet 3.2mb - pdf EMSB3ST Instructions 600kb - pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

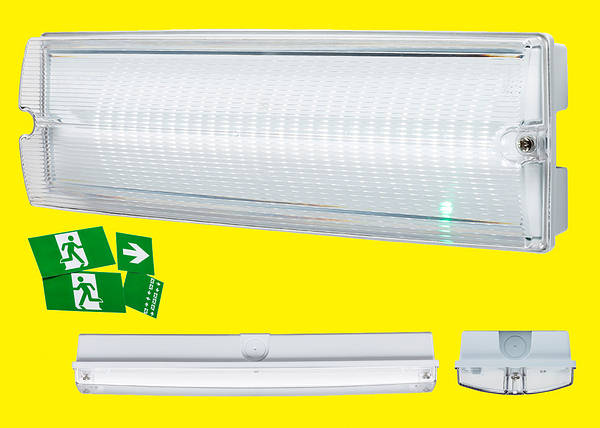

Emergency Exit Fitting - IP65
Loading …
4W LED Emergency Exit Bulkhead - IP65
3hr Maintained & Non-Maintained
3hr Maintained & Non-Maintained
Low profile LED emergency bulkhead that can be configured for maintained and non-maintained use,
with minimum of 3 hour emergency illumination.
Polycarbonate body and diffuser, IP65 rated, suitable for indoor and outdoor use.
Easy installation via hinged gear tray and push-fit connector block. Self-adhesive legend kit supplied as standard.
Ideal for emergency illuminating of exit routes.
with minimum of 3 hour emergency illumination.
Polycarbonate body and diffuser, IP65 rated, suitable for indoor and outdoor use.
Easy installation via hinged gear tray and push-fit connector block. Self-adhesive legend kit supplied as standard.
Ideal for emergency illuminating of exit routes.
Technical:EMLED3L Datasheet - 220kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

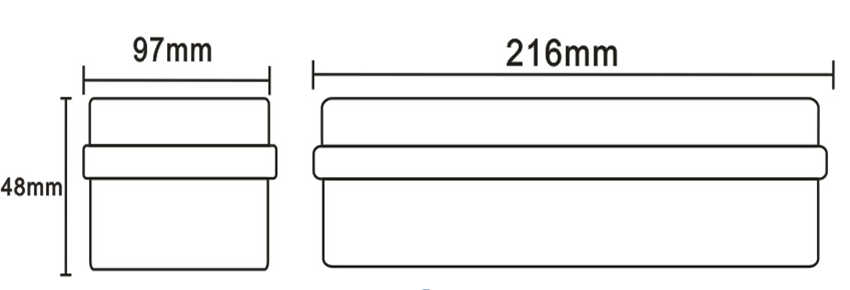

Emergency Bulkhead - IP65 3w LED
Loading …
Length: 218mm
Width: 100mm
Height: 48mm
Width: 100mm
Height: 48mm
Emergency Exit Fitting - IP65
Ultra Slim
3w LED - Maintained & Non Maintained.
Ultra Slim
3w LED - Maintained & Non Maintained.
Low profile ultra slim design.
Manufactured from robust polycarbonate.
Hinged screwless gear tray for fast and simple installation.
Ideal for interior or exterior use. for use in illuminating routes and exits.
Length: 218mm
Width: 100mm
Height: 48mm
Width: 100mm
Height: 48mm
Technical:EMLED2 Datasheet EMLED2 Instructions EMLED2 Line Drawing |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

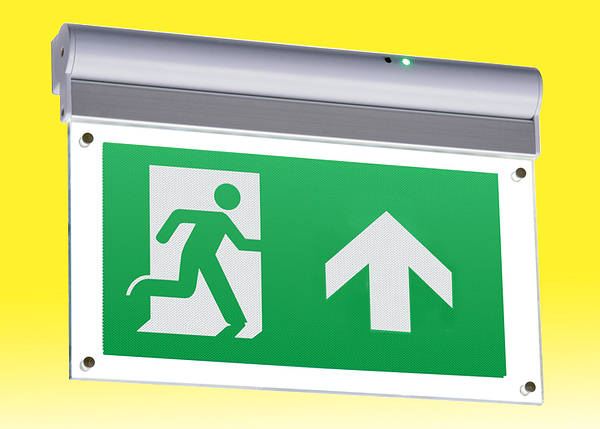

LED Emergency Exit Sign - Wall Mounted
Loading …
See product for Accessories
LED Emergency Exit Sign
Maintained and Non-maintained
Wall Mounted
Maintained and Non-maintained
Wall Mounted
Manufactured from a Light Weight Metal Frame
Interchangeable PC Legends (Supplied as standard with Arrow Up.)
(Optional Legends available see below).
Can be used in a maintained or non maintained mode.
Approx. Life 40,000 hrs.
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

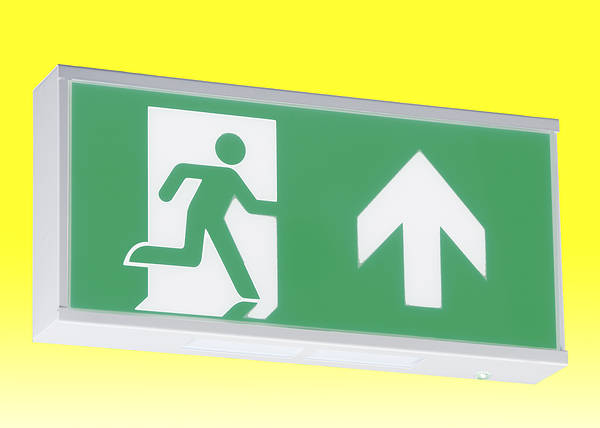

Emergency EXIT Sign LED - Double Sided
Loading …
Shown Wall Mounted
See product for Accessories
Emergency EXIT Sign LED - Double Sided
Wall or Ceiling Mounted
Maintained & Non-maintained
Wall or Ceiling Mounted
Maintained & Non-maintained
LED emergency exit sign, complete with Arrow Up legend.
Fitting has an unique hanger and hinge system, supports a dual-mount wall or ceiling installation.
Typically installed above doorways, this fitting can be utilised for maintained or non-maintained use.
Operating a minimal 3 hour illumination during loss of power, ensuring illuminated exit routes during evacuations.
Fitting has an unique hanger and hinge system, supports a dual-mount wall or ceiling installation.
Typically installed above doorways, this fitting can be utilised for maintained or non-maintained use.
Operating a minimal 3 hour illumination during loss of power, ensuring illuminated exit routes during evacuations.
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

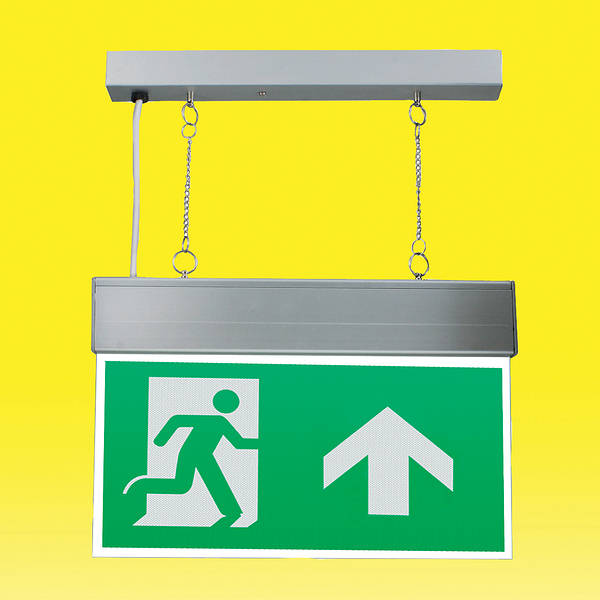

LED Emergency Exit Sign - Suspended
Loading …
See product for Accessories
LED Emergency Exit Sign
Maintained and Non-maintained
Suspended
Maintained and Non-maintained
Suspended
complete with high output LEDs
Interchangeable PC Legends (Supplied as standard with Arrow Up.)
(Optional Legends available see below).
Complete with 1.5mtr Suspension Kit terminating in Ceiling Plate.
Non maintained & Maintained
This Luminaire is both efficient and has a long life expectancy approx 40,000 hours.
| See product for Accessories |
Technical:EMSWING Datasheet EMSWING Instructions EMSWINGR Datasheet |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
LED Blade Exit Emergency Light - Self Test
Loading …
EM BL3ST
Dimensions:
Height: 211mm
Width: 285mm
Depth: 35mm
See product for Accessories
LED Blade Exit Emergency Light
Self Test
Self Test
The EMBL3ST is a LED maintained emergency exit sign, low energy, ultra slim alternative to conventional exit signs.
It has self-test functionality and 3 hour maintained mode as standard.
Rotatable legend design allows for selection of exit direction to increase flexibility.
LiFePO4 Lithium battery provides improved energy consumption, product reliability and lifetime.
Different mounting options available:
Suspension, Recessed, Ceiling surface, Wall surface mounting.
It has self-test functionality and 3 hour maintained mode as standard.
Rotatable legend design allows for selection of exit direction to increase flexibility.
LiFePO4 Lithium battery provides improved energy consumption, product reliability and lifetime.
Different mounting options available:
Suspension, Recessed, Ceiling surface, Wall surface mounting.
- Applications: corridors, exits, escape routes
- Self-test function (BS5266 compliant)
- Multiple mounting options
- Easy rotating PVC legends included
- Battery: LongLife LiFePO4 3.2V 1000mAh
- Warranty: 3 years (excluding battery)
- Power: 2.5W
- Light output: 45lm (charging), 25lm (discharging)
- Viewing distance: 30m max.
- CCT: 6500K
- Class: II
Dimensions:
Height: 211mm
Width: 285mm
Depth: 35mm
- See each product
| See product for Accessories |
Technical:See each product |
|
