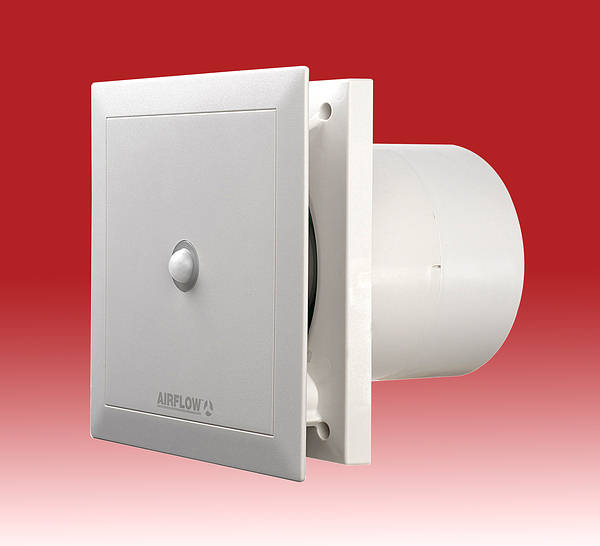

Airflow QuietAir 5"/120mm Extractor Fan + PIR & Timer
Product Code: AD QT120PT
5019009307619
9041500
Loading …
176mm x 176mm.
Depth: 39mm.
Rating IP45.
Power: 10/13 Watts.
Airflow: 150/170m3/hr.
Sound Level Max - 32dBA.
Airflow QuietAir Fan
120mm 2 Speed + PIR & Timer
Special Offer
Free 3mtr x 5" Flexible Duct + Grille
120mm 2 Speed + PIR & Timer
Special Offer
Free 3mtr x 5" Flexible Duct + Grille
Ultra LOW ENERGY
EcoSTART TECHNOLOGY
The powerful performance QuietAir QT120PT is designed to provide extraction levels
that exceed the requirements of the latest building regulations Approved Document F.
QuietAir, is a range of elegant, discreet axial fans that are supremely quiet with Eco start
that activates after 2 minutes, only when they are really needed.
By using exceptionally low energy they help to reduce carbon your electricity bill.
Operated by Motion Sensor and adjustable timer.
Application
Suitable for toilets, en-suites, bathrooms, small rooms, utility rooms and kitchen (adjacent to hob)
- Quiet, only 32 dB(A)*
- Power consumption only 10 watts*
- Two speed options, 150 m3/hr* and 170 m3/hr
- Motion sensor with overrun timer
- High efficiency impeller delivers up to 120m3/hr through long lengths of rigid ducting, including 90 degree bends
- Use in wet zone 1 when protected by an RCD and installed in accordance with latest IEE wiring regulations
- Integral flow straightener and back draught flap
- Low specific fan power for SAP assessments
- Clip-on cover for ease of cleaning
- Innovative room refresh option (interval timer) programmable for automatic long term routine ventilation.
- Complies with latest 2010 Building Regulations Approved Document F
- Airflow 150/170 m3/hr, 41.6/47.2 l/sec
- Airflow 31Pa @ 120 m3/hr, 33.3 l/sec
- Axial high efficiency impeller
- Long life ball-bearing motor with 40,000 hours life
- Wall/ceiling mounting
- Sound pressure 32/36 dB(A) @ 3m
- Fixed run-on timer 15 minutes
- Power 10/13 watts
- Low SFP (Specific fan power) 0.24 w/l/s*
- Voltage - 230/1/50-60Hz
- Rating IP45
- Max. ambient temperature 40 degree
176mm x 176mm.
Depth: 39mm.
Rating IP45.
Power: 10/13 Watts.
Airflow: 150/170m3/hr.
Sound Level Max - 32dBA.
Technical:Data Sheet 250kb pdf Installation pdf 500kb pdf QuietAir Brochure - 2.85mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
AD QT120PT
Airflow QuietAir 5"/120mm Extractor Fan + PIR & Timer |
