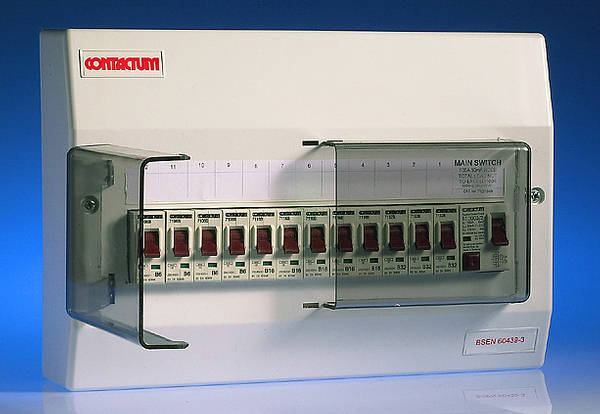

12 Way Insulated Consumer Unit - 100A 30mA RCD
Product Code: CM P12/100N
0
CM P12/100N
Loading …
Supplied less MCB's
Dimensions:
Height: 232mm
Width: 330mm
Depth: 116mm (inc. window)
Dimensions:
Height: 232mm
Width: 330mm
Depth: 116mm (inc. window)
12 Way Insulated Board with 100 Amp 30mA RCD
for all circuits in the event of an earth leakage trip.
It is a requirement of the wiring regulations that any socket that could be used
for supplying power outdoors must be RCCB protected..
This unit makes installation easy with extra generous space between the terminal bars and MCBs.
MCBs are secured by a full din rail and the MCBs are removable from the run of busbar.
- MCB (bought separately) have a terminal capacity of 25mm2 and the terminal bars 16mm2.
- RCD: BS EN 91009 terminal capacity 35mm2
- The enclosure is British made from a fire resistant material and the assembled unit is certified by ASTA to the rigorous BS 60439-3 standard.
Supplied less MCB's
Dimensions:
Height: 232mm
Width: 330mm
Depth: 116mm (inc. window)
Dimensions:
Height: 232mm
Width: 330mm
Depth: 116mm (inc. window)
Technical:Instructions - 198kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
CM P12/100N
12 Way Insulated Consumer Unit - 100A 30mA RCD |
Contactum MCB's ( Type B ) - 10KA
Loading …
Contactum
SP MCB's ( Type B ) - 10KA
SP MCB's ( Type B ) - 10KA
Contactum MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
