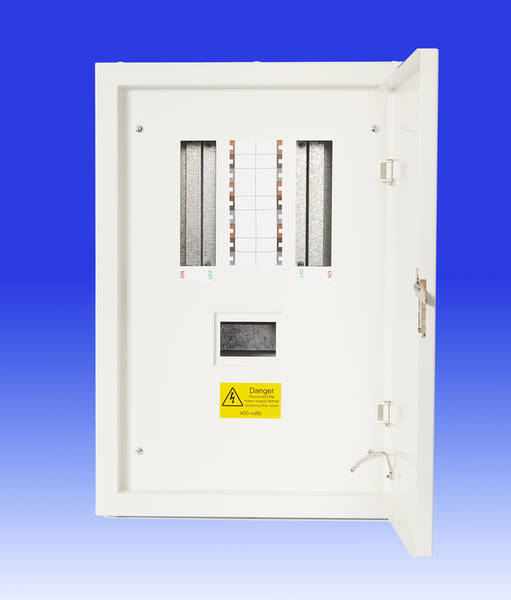

6 Way TP&N Distribution Board without Incomer New
Product Code: CP DDB125PIR06
5056199087846
DDB125PIR06
Loading …
586 x 415 x 120mm.
Contactum
6 Way TP&N Distribution Board
Without Incomer
6 Way TP&N Distribution Board
Without Incomer
4 Way Provision for Iso/RCD Type B Board Rated 125A
Enclosure: 1.2 mm galvanised steel.
No of outgoing triple pole ways: 4,6,8,12,16.
Mounting type: Surface.
Enclosure: 1.2 mm galvanised steel.
No of outgoing triple pole ways: 4,6,8,12,16.
Mounting type: Surface.
-
Features:
6 TP / 18 SP ways.
Removable pan assembly.
RAL 9016 textured finish.
125A busbar.
Tin plated copper busbar.
Removable top & bottom gland plates. - Choice of incomers
4 pole 125A isolator.
4 pole RCD’s.
Enclosure IP4X.
Door locking feature.
-
Electrical Characteristics:
Electrical supply type: 3 phase AC.
Maximum operating voltage: 415 VAC.
Supply frequency: 50 Hz.
Busbar rating: maximum rating: 125A.
Rated short time withstand current (Icw): 20kA - 0.25s.
Rated impulse withstand voltage (Uimp): 4kV.
Incoming isolator: 4 pole (3 phase and neutral). - Single pole conversion kit. (Optional).
- Metering and Surge Arrestor Kits are supplied complete with all accessories and cabling to fully install onto B Board.
586 x 415 x 120mm.
Technical:TP Boards Datasheet 1.7mb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
CP DDB125PIR06
6 Way TP&N Distribution Board without Incomer New |
