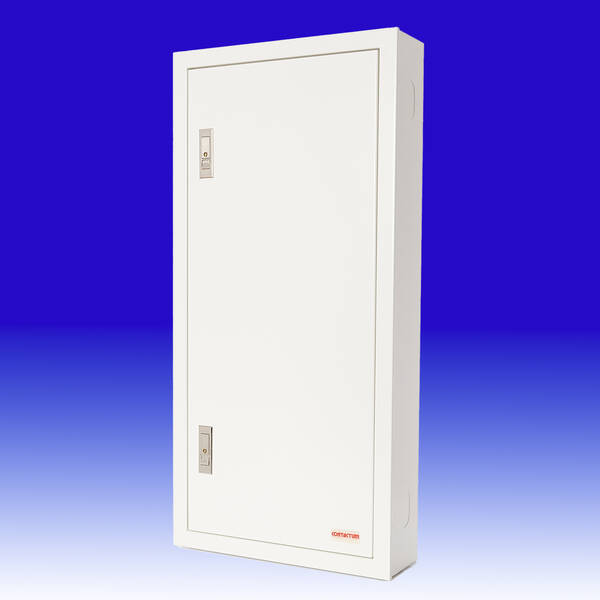

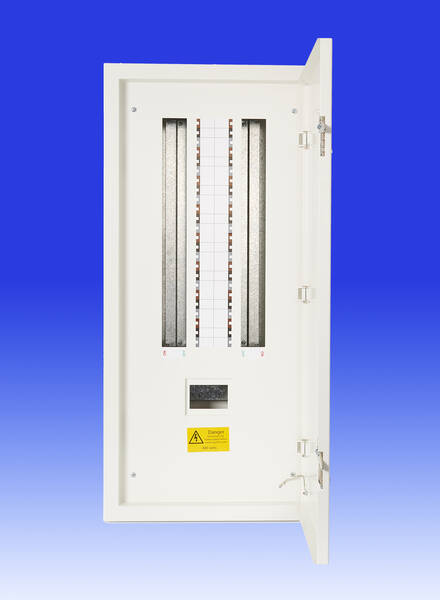

16 Way TP&N Distribution Board without Incomer New
Product Code: CP DDB125PIR16
5056199087877
DDB125PIR16
Loading …
856 x 415 x 120mm.
Contactum
16 Way TP&N Distribution Board
Without Incomer
16 Way TP&N Distribution Board
Without Incomer
4 Way Provision for Iso/RCD Type B Board Rated 125A
Enclosure: 1.2 mm galvanised steel.
No of outgoing triple pole ways: 4,6,8,12,16.
Mounting type: Surface.
Enclosure: 1.2 mm galvanised steel.
No of outgoing triple pole ways: 4,6,8,12,16.
Mounting type: Surface.
-
Features:
416TP / 48 SP ways.
Removable pan assembly.
RAL 9016 textured finish.
125A busbar.
Tin plated copper busbar.
Removable top & bottom gland plates. - Choice of incomers
4 pole 125A isolator.
4 pole RCD’s.
Enclosure IP4X.
Door locking feature.
-
Electrical Characteristics:
Electrical supply type: 3 phase AC.
Maximum operating voltage: 415 VAC.
Supply frequency: 50 Hz.
Busbar rating: maximum rating: 125A.
Rated short time withstand current (Icw): 20kA - 0.25s.
Rated impulse withstand voltage (Uimp): 4kV.
Incoming isolator: 4 pole (3 phase and neutral). - Single pole conversion kit. (Optional).
- Metering and Surge Arrestor Kits are supplied complete with all accessories and cabling to fully install onto B Board.
856 x 415 x 120mm.
Technical:TP Boards Datasheet 1.7mb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
CP DDB125PIR16
16 Way TP&N Distribution Board without Incomer New |
Contactum TP&N Distribution Board - Incomers
Loading …
CP D1254
CPR100003A
Contactum
TP&N Distribution Board
Incomers
TP&N Distribution Board
Incomers
Technical:TP Boards Datasheet 1.7mb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Contactum TP&N Distribution Board - Options
Loading …
CP DDBM/SENC
CP DDBT2S4031KIT
CP DDBSCMIDMKIT
CP DDBSCMKIT
See product for Accessories
Contactum
TP&N Distribution Board
Options
TP&N Distribution Board
Options
| See product for Accessories |
Technical:TP Boards Datasheet 1.7mb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Contactum - 6A 10KA Class A - B Curve Compact RCBO
Loading …
Contactum
10KA Class A - B Curve Compact RCBO
10KA Class A - B Curve Compact RCBO
for use with Defender TP&N Distribution Boards
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Contactum - Contactum 10KA Class A - C Curve Compact RCBO 10KA Class A - C Curve Compact RCBO
Loading …
Contactum
10KA Class A - C Curve Compact RCBO
10KA Class A - C Curve Compact RCBO
for use with Defender TP&N Distribution Boards
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Contactum MCB's ( Type B ) - 10KA
Loading …
Contactum
SP MCB's ( Type B ) - 10KA
SP MCB's ( Type B ) - 10KA
Contactum MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Contactum MCBs ( Type C ) - 10KA
Loading …
Contactum
MCBs ( Type C ) - 10KA
MCBs ( Type C ) - 10KA
Contactum MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Contactum TP MCB's ( Type B ) - 10KA
Loading …
Contactum
TP MCB's ( Type B ) - 10KA
TP MCB's ( Type B ) - 10KA
Contactum MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Contactum TP MCB's ( Type C ) - 10KA
Loading …
Contactum
TP MCB's ( Type C ) - 10KA
TP MCB's ( Type C ) - 10KA
Contactum MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
|
