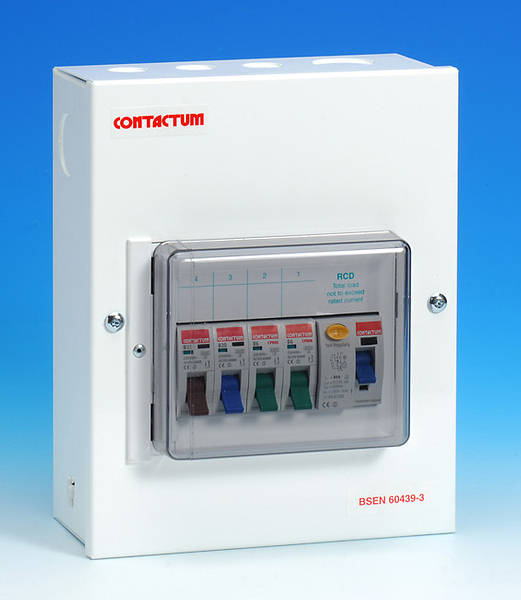

4 Way Metal Consumer Unit - 80A RCD
Product Code: CP R048M
5055556223071
CPR048M
Loading …
Standards:
Consumer unit - BS EN 60439-3
RCD - BS EN 61008 Type A
Terminal capacities:
80A RCD - 35mm²
Neutral / Earth bars 16mm²
Dimensions (mm)
H-240 W-230 D-90 + 26 (door)
Contactum "CP" Range
4 Way Metal Consumer Unit - 80 Amp 30mA RCD
4 Way Metal Consumer Unit - 80 Amp 30mA RCD
Supplied less MCB's
- Designed and manufactured in London
- Tested to BS EN 60439-3 in a UKAS accredited laboratory
- Generous cabling space
- Secure 3 point fixing
- Coloured MCB dolly's for easy identification
- Scroll Down for Flush Mounting Plate Option
- All devices lockable off
- Full range of command and control devices
- Up to 25 year guarantee
- Full customer design service available
- Knockouts -
Top & bottom: 1 x 32mm, 3 x 20mm,
Sides: 1 x 32mm
Back:, 1 x Oblong 20mm x 45mm
Standards:
Consumer unit - BS EN 60439-3
RCD - BS EN 61008 Type A
Terminal capacities:
80A RCD - 35mm²
Neutral / Earth bars 16mm²
Dimensions (mm)
H-240 W-230 D-90 + 26 (door)
Technical:CP Range Catalogue - 450kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
CP R048M
4 Way Metal Consumer Unit - 80A RCD |
Contactum - NEW "CP" Range - 6kA Type B SP MCB
Loading …
CP B0606B
CP B0610B
CP B0616B
CP B0620B
CP B0632B
CP B0640B
CP B0650B
CP B0663B
Width: 17mm
Height: 84mm
Depth: 73mm
Contactum NEW "CP" Range
6kA Type B SP MCB
6kA Type B SP MCB
Replaces CPB MCBs
- Rated voltage: 220-250V
- Breaking capacity: 6kA
- B Curve
- Single pole
- Colour coded dolly switch to allow quick
visual identification of ratings - Conforms to BS EN 60898
Width: 17mm
Height: 84mm
Depth: 73mm
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Contactum MCBs ( Type C ) - 10KA
Loading …
Contactum
MCBs ( Type C ) - 10KA
MCBs ( Type C ) - 10KA
Contactum MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Contactum - 6KA Type A B Curve SP Compact RCBO's
Loading …
Contactum
6KA Type A SP Compact RCBO's
B Curve
6KA Type A SP Compact RCBO's
B Curve
Type A as standard, Faster installation time, Faster testing time and Compact in size. Available in B or C tripping curve, 6kA & 10kA breaking capacities from 6-50A making it one of the most comprehensive ranges on the market today.
The removal of the functional earth reduces the number of connections on the installation as well as removing the need to remove the functional earth whilst carrying insulation resistance testing. This clear improvement on installation time, without compromising the quality or safety of this product range.
The removal of the functional earth reduces the number of connections on the installation as well as removing the need to remove the functional earth whilst carrying insulation resistance testing. This clear improvement on installation time, without compromising the quality or safety of this product range.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Contactum - 6KA Type A C Curve SP Compact RCBO's
Loading …
Contactum
6KA Type A SP Compact RCBO's
C Curve
6KA Type A SP Compact RCBO's
C Curve
Type A as standard, Faster installation time, Faster testing time and Compact in size. Available in B or C tripping curve, 6kA & 10kA breaking capacities from 6-50A making it one of the most comprehensive ranges on the market today.
The removal of the functional earth reduces the number of connections on the installation as well as removing the need to remove the functional earth whilst carrying insulation resistance testing. This clear improvement on installation time, without compromising the quality or safety of this product range.
The removal of the functional earth reduces the number of connections on the installation as well as removing the need to remove the functional earth whilst carrying insulation resistance testing. This clear improvement on installation time, without compromising the quality or safety of this product range.
|
