10 Way Vandal Resistant Audio Door Entry & Proximity Access System
Product Code: DE CSP10/VR
0
CSP-10/VR
Loading …

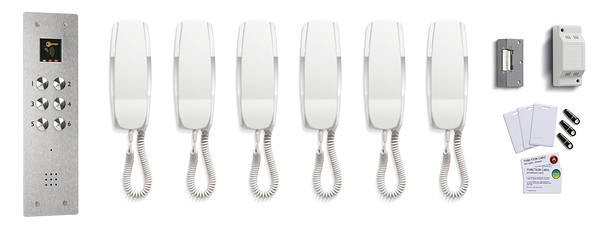

6 Way System Shown
systems utilising the exclusive Paxton standalone compact
reader.

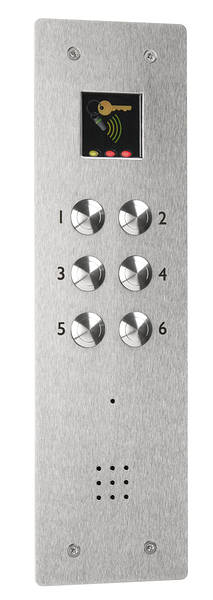

6 Way Panel Shown
10 Way
Vandal Resistant
Audio Door Entry & Proximity Access System
Vandal Resistant
Audio Door Entry & Proximity Access System
It is common for a door entry telephone system to be combined
with a proximity access system for the benefit of residents, tenants or staff.
CSP Vandal Resistant Front Door Panels (any size)
The vandal resistant panels are manufactured from 2.5 mm 316 marine grade stainless steel.
Panels are flush mounted and fixed to the back-box by tamper proof bolts (a special key is required to remove the panel).
Optionally, the panels can be supplied with stainless steel housing for surface mounting.
A single IP68 stainless steel vandal resistant button is provided
for each flat and the option of one for Tradesmen.
Each panel is custom engraved to client's specifications.
The engraving of flat numbers is included in the price of each system.
Further engraving (e.g. Block names) can be included for a modest surcharge
Please allow 3 - 5 days delivery for engraving
Panels should be sited in a position that is protected from adverse weather conditions.
- These systems are conveniently packaged with all necessary components to complete an installation including a starter pack of keyfobs.
- Additional packs of keyfobs can be purchased to the required number - 10,000 keyfob capacity.
- A CSP series system comprises of;
Standard wall mounting telephones
Aluminium door entry panel with compact proximity reader
(Panels above 7 buttons are vandal resistant stainless steel)
Speech unit
12V DC power supply
Flush mounting box
Surface lock release
Starter keyfob pack (includes an ‘enrolment’ card, a ‘fail-open’ card and 3 user keyfobs & shadow cards)
Full installation and programming instructions
- The proximity system is the ideal access control solution in situations where no central programming or reporting is required. Validating and voiding of users is achieved with a unique shadow card system, and all system programming is performed with the easy to use function cards.
- All packaged systems include a starter pack of key-fobs and additional key-fobs can be purchased to the required number.
- The lock output is fail-secure as a default with a timed lock output set at 5 seconds. Alternatively, the fail-open card (included in the starter key-fob pack) can be used to change the lock output to operate a fail-safe lock mechanism.
systems utilising the exclusive Paxton standalone compact
reader.
6 Way Panel Shown
Technical:CSP Catalogue 270kb pdf CSP Manual 700kb pdf CSP Wiring 700kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
DE CSP10/VR
10 Way Vandal Resistant Audio Door Entry & Proximity Access System |
Door Lock Releases and Accessories
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
PAXTON Proximity Keyfob - Pack of 50 Special Offer |
|
