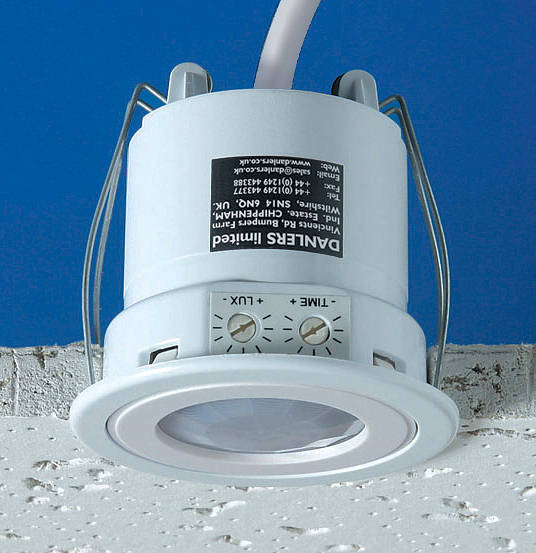

Danlers PIR Occupancy Ceiling Switch - 10As
Product Code: DN CEFLPIR10A
0
CEFL PIR 10A
Loading …
between 2.2 and 5m
Detection Area: 5m - 7m.
Dimensions:
72 diameter x 68mm.
Danlers
PIR Occupancy Switch Ceiling Switch - 10 Amps
Detection zone: 360°
PIR Occupancy Switch Ceiling Switch - 10 Amps
Detection zone: 360°
This detects the movement of a warm body, moving within its detection zone.
When such a movement is detected the load is switched on.
There is an adjustable time lag function,
The time lag is the time that must elapse with no movement detected
before the PIR occupancy switch will switch off.
There is a built-in adjustable photocell override,
which can be used to keep lights off when there is sufficient daylight available.
The photocell can be set to inactive when controlling heating, ventilation or air conditioning.
-
Adjustable time lag
adjustable in 9 steps (10 seconds to 40 minutes) - Adjustable Photocell range: 100 to 1000 lux and inactive
- Loading
Up to 10 amps (2500W at 230VAC) of any type of load, including fluorescent lights and fans. - Wiring in parallel
Several PIR switches can be wired in parallel
switches should be spaced every 5m in either direction - Walk test
- Detection zone: 360°
- Flush Mounted
- Detection area, Range and wiring see Detailed Spec below.
- Requires 63 or 64mm (2.5") diameter hole
in a false or plaster board ceiling
between 2.2 and 5m
Detection Area: 5m - 7m.
Dimensions:
72 diameter x 68mm.
Technical:Occupancy Switch Selection Detailed Spec Installation Notes |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
DN CEFLPIR10A
Danlers PIR Occupancy Ceiling Switch - 10As |
