Relay Module for 3000, 2110e, 160e & 140e Series Alarms
Product Code: EI 128R
5099383002782
Ei128R
Loading …
Diameter: 145mm
Depth: 30mm
Ei128R
Relay Module for 3000, 2110e, 160e & 140e Series Alarms
Relay Module for 3000, 2110e, 160e & 140e Series Alarms

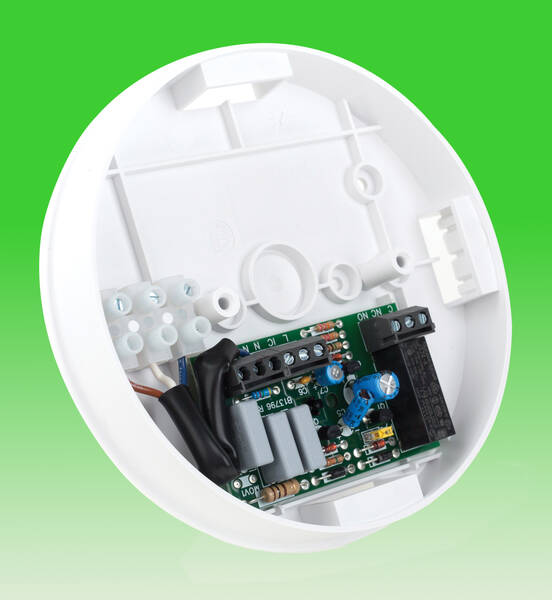

The Ei128R is a mains powered Relay Module that triggers external devices,
such as a strobe light or telecare device, if the alarms in the property activate.
The Relay is designed to operate whilst the alarm system is sounding, to signal ancillary devices such as door closers, extractors, remote sounders etc. When any of the interconnected alarms sound the signal will cause the relay contacts to switch.
Compatible with the 3000, Ei2110e Multi-Sensor Fire Alarm, 160e Series alarms and the 140e Series.
such as a strobe light or telecare device, if the alarms in the property activate.
The Relay is designed to operate whilst the alarm system is sounding, to signal ancillary devices such as door closers, extractors, remote sounders etc. When any of the interconnected alarms sound the signal will cause the relay contacts to switch.
Compatible with the 3000, Ei2110e Multi-Sensor Fire Alarm, 160e Series alarms and the 140e Series.
- Mains powered - operates on receipt of a signal from the interconnect line of a smoke, heat or CO alarm
- Volt free contacts - (Normally Open or Normally Closed) rated up to 240V AC/5 Amps, making it suitable for use with a wide range of AC or DC voltages
- Designed for siting under one of the smoke/heat alarms listed above. However, a cover is supplied if installing remotely or with 260 series CO alarms
- Fitted with a 4 way connector block for ease of wiring
- More than one Relay can be used in a set of interconnected alarms on the condition that no more than 12 units are used in the system (1 x Ei128R counts as one unit)
- Can be set for Continuous or Pulse operation by operation of a manual switch - when in Pulse operation mode, the relay contacts will automatically switch back to their original state after 5 seconds
- Features 3 x 25mm trunking knockouts for surface wiring and centre knockout for recess wiring
Diameter: 145mm
Depth: 30mm
Technical:EI128R Datasheet - 315kb pdf Instructions - 870kb pdf |
|
