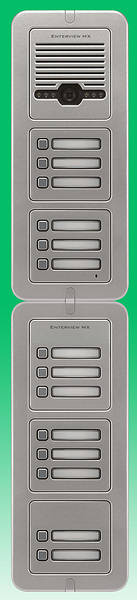

14 way Mono Multiway VDE - Flush
Product Code: EV MX14VF
5060224103043
EVMX14V-F
Loading …
Double Panel
H: 610mm
W: 125mm
D: 42mm with surface box
D: 12mm with flush box
Weight: 4KG
Example of Panel Lighting
H: 610mm
W: 125mm
D: 42mm with surface box
D: 12mm with flush box
Weight: 4KG
Example of Panel Lighting
ESP Multiway - Vertical
14 way Mono Multiway Video Door Entry - Flush
14 way Mono Multiway Video Door Entry - Flush
The EVMX is available in audio only , black and white video or full colour video variants
all having the option of including an entry code keypad to ease the entry of regular users .
The EVMX call stations are IP55 rated and therefore equally suitable for internal or external siteing.
Their tough brushed metal construction offers resistance to vandalism and a stylish design
that would enhance any location using either flush or surface mounting installation.
Aesthetics are further improved by soft blue backlighting of the call buttons and clear large identity labels .
Each call button within the call station can support up to 4 video phones in mono or colour as appropriate
plus an additional 2 audio only handsets.
The colour variant offers the option of handset type video phones
or the latest Handsfree technology featuring a superb 7 inch vibrant TFT display .
- Call stations flush or low profile surface mounting
- IP 55 rated weatherproof construction
- Up to four video phones plus two audio phones on each call station button on video variants
- Up to ten audio phones on each call station button on audio variants
- Hi intensity led illumination of callers on video variants
- Backlit blue buttons and identity labels
- Identity label template available
Double Panel
H: 610mm
W: 125mm
D: 42mm with surface box
D: 12mm with flush box
Weight: 4KG
Example of Panel Lighting
H: 610mm
W: 125mm
D: 42mm with surface box
D: 12mm with flush box
Weight: 4KG
Example of Panel Lighting
Technical:EV MX Installation 900kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
EV MX14VF
14 way Mono Multiway VDE - Flush |
Electric Lock Releases
Loading …
Electric Lock Releases
Fail Secure - remains locked in the event of a power failure
but can still be opened in the normal way
FAIL SAFE - Unlocks in the event of a power failure
Technical:Lock Dimmensions 20kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Exit Button for Magnetic and Electric Locks
Loading …
See product for Cable, Accessories, Boxes and Grommets
Exit Button for Electric Door Locks
and Mag Locks
and Mag Locks
for use alongside existing or new access control systems
where electronic lock functions and particularly mag-locks are employed.
The EV4EXIT is supplied with a metal super flush
mounting kit ( profile of less than 5mm)
but can also be fitted to all standard single switch
surface or flush back boxes
| See product for Cable, Accessories, Boxes and Grommets |
Technical:Installation & Operating InstructionsWarranty:ESP |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Green Emergency Door Release - Surface Mount
Loading …
See product for Cable
Green Emergency Door Release
Surface Mount
Surface Mount
| See product for Cable |
Technical:Instructions 445kb pdfWarranty:ESP |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
250kg Mag Lock c/w LZ Brackets
Loading …
See product for Accessories
250kg Mag Lock c/w LZ Brackets
- Electro Magnetic Lock - Single door
- Holding force - 250Kg
- Voltage 12v DC
- Current 420mA
- Weight 1.86Kg
-
" LZ " bracket is supplied
An " LZ " bracket is required on most inward opening doors
No bracket is normally required if the door opens outward .... quite rare
| See product for Accessories |
Technical:EVML250 Datasheet - 540kb pdf Instructions - 3.2mb pdfWarranty:ESP |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Accessories
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Metres
|
|---|---|
