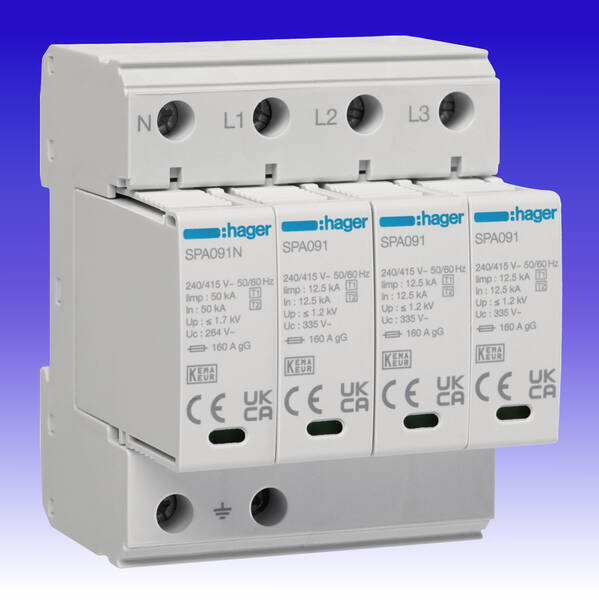

125A Surge Protection Kit Type I/II
Product Code: HG JK101SPD
5015652606475
JK101SPD
Loading …
Dimensions:
Length: 89.8mm
Width: 71mm
Depth: 65.7mm
125A Surge Protection Kit Type I/II
Type 1/2 Class I/II Surge Protection Kit for Hager 125A TP&N Distribution Boards to aid compliance with 18th Edition BS 7671.
A Surge protection device (SPD) kit specifically developed for Hager standard TPN (Type B) Distribution boards. This device protects electrical and electronic equipment against transients and the switching of transformers, lighting and motors. Developed to ensure optimal performance of SPD technology within Hager distribution boards. SPD is CT2 type to ensure compatibility
with all common UK Earthing arrangements e.g. TN-C-S (PME), TN-S and TT earthing arrangements.
This is an IEC Type 1/2 / class I/II SPD for 3 –phase power supply networks. A type 1 SPD is generally used in the primary board.
This SPD kit fits within the standard distribution board. Line, Neutral and Earth connections are via copper busbar and copper links, minimising SPD conductor losses, maximising the effective performance of the SPD (Up effective).
A Surge protection device (SPD) kit specifically developed for Hager standard TPN (Type B) Distribution boards. This device protects electrical and electronic equipment against transients and the switching of transformers, lighting and motors. Developed to ensure optimal performance of SPD technology within Hager distribution boards. SPD is CT2 type to ensure compatibility
with all common UK Earthing arrangements e.g. TN-C-S (PME), TN-S and TT earthing arrangements.
This is an IEC Type 1/2 / class I/II SPD for 3 –phase power supply networks. A type 1 SPD is generally used in the primary board.
This SPD kit fits within the standard distribution board. Line, Neutral and Earth connections are via copper busbar and copper links, minimising SPD conductor losses, maximising the effective performance of the SPD (Up effective).
- Power supply system:TN / TT
- Requirement class: SPD class II acc. to IEC 61643-11; SPD Type 2 acc. to EN 61643-11
- Max. continuous operating voltage Uc: L-N: 275V a.c. / N-PE: 260V a.c
- Nominal voltage Un: 230/400V AC 50/60 Hz
- Combination of high capacity voltage limiting varistors and N-PE spark gap
- Suitable for CT2 connection as per 534.4.3.2 BS7671 18th Edition
- Pluggable surge protection modules for ease of replacement
- Optical status indication for each cartridge:
Neutral = Healthy, Red = Replace - Each cartridge incorporates its own thermal disconnect mechanism
- Cartridges are mechanically coded to prevent mis-connection
- Cartridges can be routinely checked and changed if required without interrupting supply to loads
- No secondary back-up protection required in distribution boards of 125A In or less
Dimensions:
Length: 89.8mm
Width: 71mm
Depth: 65.7mm
Technical:HGJK101SPD Datasheet - 1.5mb pdf HGJKSPD Instructions - 1.15mb pdf |
|
