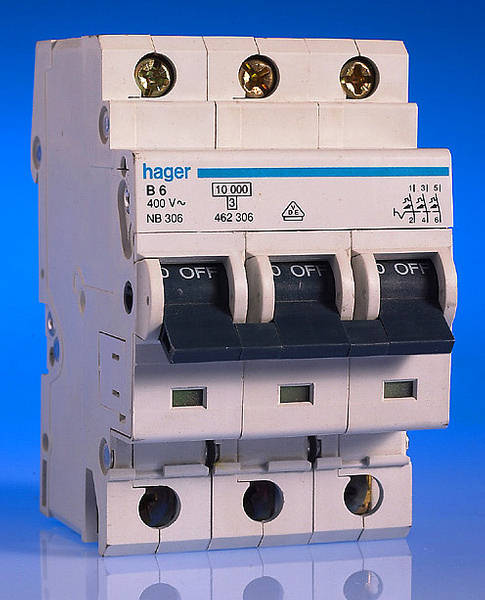

6A TP Hager MCB 10kA - B Curve
Product Code: HG NBN306
3250614623066
NBN306A / NBN306N
Loading …
25 mm on all mcb's
Hager Three Phase MCB 10kA ( Type B )
Rated 6 Amps
Rated 6 Amps
Hager MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
- Hager Commercial MCBs have a short circuit breaking capacity of 10000A (M10).
- The current carrying capacity of the cable should always exceed the current rating of the MCB to prevent damage.
- The operating dolly may be locked in either the ON or OFF position without affecting the ability of the trip mechanism to operate.
- When in the off position, a contact gap of 4 mm is achieved. Hager's MCBs may therefore be used as triple pole isolating switches where appropriate.
25 mm on all mcb's
Technical:MCB Selection |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
HG NBN306
6A TP Hager MCB 10kA - B Curve |
