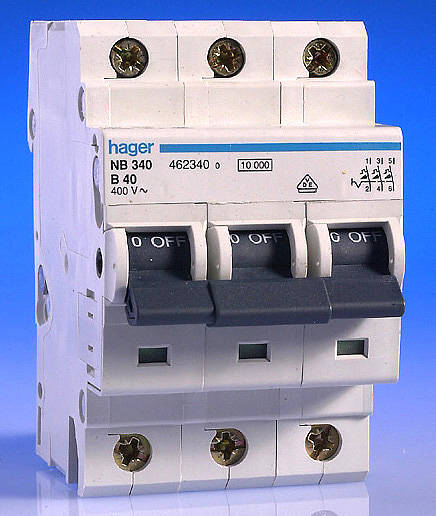

40A TP Hager MCB 10kA - B Curve
Product Code: HG NBN340
3250614623400
NBN340A / NBN340N
Loading …
25 mm on all mcb's
Hager Three Phase MCB 10kA ( Type B )
Rated 40 Amps
Rated 40 Amps
Hager MCB's detect overcurrents due to both overload and fault currents.
The MCB will operate and interrupt the supply to prevent damage to the installation.
- Hager Commercial MCBs have a short circuit breaking capacity of 10000A (M10).
- The current carrying capacity of the cable should always exceed the current rating of the MCB to prevent damage.
- The operating dolly may be locked in either the ON or OFF position without affecting the ability of the trip mechanism to operate.
- When in the off position, a contact gap of 4 mm is achieved. Hager's MCBs may therefore be used as triple pole isolating switches where appropriate.
25 mm on all mcb's
Technical:MCB Selection |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
HG NBN340
40A TP Hager MCB 10kA - B Curve |
