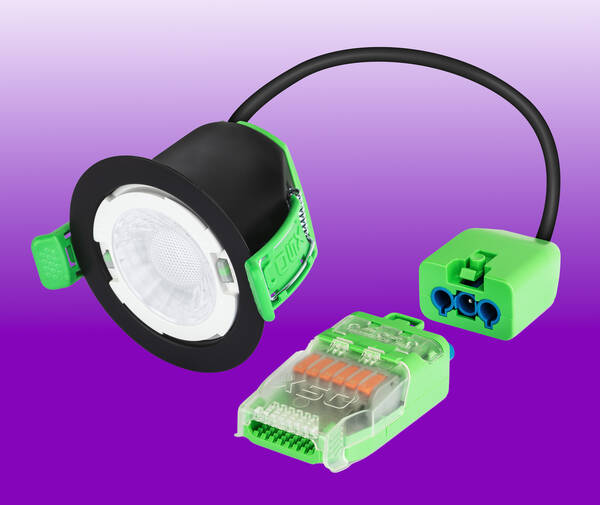

X50 Fire Rated 3.5W/5W LED 3CCT Downlight - IP65 (Less Bezel)
Product Code: JC 1101NB
5052544121579
JC1101/NB
Loading …
Shown with white bezel
Wattage & colour selectable from below the ceiling
Easy glide protective clips
Plug and play two-part connector
Unique easy access resistance testing terminals
Bezel diameter: Ø84mm
Depth: 55mm
Cut-out: Ø68-70mm
JCC
X50 Fire Rated 3.5W/5W LED 3CCT Downlight - IP65
(Less Bezel)
X50 Fire Rated 3.5W/5W LED 3CCT Downlight - IP65
(Less Bezel)
Wattage & colour selectable from below the ceiling
Adjust the Wattage and colour temperature via a simple switch. Choose between 3.5W or 5W,
and 3000K/4000K/5700K colour temperatures. Up to 140 lumens per circuit Watt.
Easy glide protective clips
The easy glide protective clips on X50 are designed to reduce ceiling damage and allow for simple ceiling access.
Plug and play two-part connector
Double hinged clear casing allows for clearer access to terminal blocks, whilst a clear cover provides reassurance of secure termination.
Unique easy access resistance testing terminals
Secure plug and play connection, allows for first fix termination. Includes three easy access probe testing terminals for insulation resistance testing. The easy access testing terminals have been designed to fit commonly used probe sizes.
Adjust the Wattage and colour temperature via a simple switch. Choose between 3.5W or 5W,
and 3000K/4000K/5700K colour temperatures. Up to 140 lumens per circuit Watt.
Easy glide protective clips
The easy glide protective clips on X50 are designed to reduce ceiling damage and allow for simple ceiling access.
Plug and play two-part connector
Double hinged clear casing allows for clearer access to terminal blocks, whilst a clear cover provides reassurance of secure termination.
Unique easy access resistance testing terminals
Secure plug and play connection, allows for first fix termination. Includes three easy access probe testing terminals for insulation resistance testing. The easy access testing terminals have been designed to fit commonly used probe sizes.
- Input voltage: 230-240V, 50/60Hz
- Two wattage and three colour selectable from beneath the ceiling
- Wattage selectable: 3.5W (480lm) / 5W (700lm)
- Colour temperature selectable: 3000K, 4000K or 5700K
- CRI: >80
- Beam angle: 60°
- Two-part first fix connector with dedicated testing terminals
- Double hinged terminal for easy access to terminal blocks
- Tested for use in Solid, I-Joist and Steel Open Web joist ceilings
- Triac dimmable as standard
- IP rating: IP65
- Six interchangeable bezel options
- Contains a light source of energy efficiency class B (3W) or C (5W)
- 5 year warranty
Bezel diameter: Ø84mm
Depth: 55mm
Cut-out: Ø68-70mm
Technical:X50 Brochure - 2.12mb pdf JC1101NB Datasheet - 215kb pdf Instructions - 1.8mb pdf |
|
