X50 Fire Rated 3.5W/5W LED 3CCT Downlight - IP65 - White (10 pack)
Product Code: JC 1101WHCP
5052544121623
JC1101/WH10
Loading …
Wattage & colour selectable from below the ceiling
Easy glide protective clips
Plug and play two-part connector
Unique easy access resistance testing terminals
Bezel diameter: Ø84mm
Depth: 55mm
Cut-out: Ø68-70mm
JCC
X50 Fire Rated 3.5W/5W LED 3CCT Downlight - IP65
(10 Pack c/w 10 White Bezels)
X50 Fire Rated 3.5W/5W LED 3CCT Downlight - IP65
(10 Pack c/w 10 White Bezels)

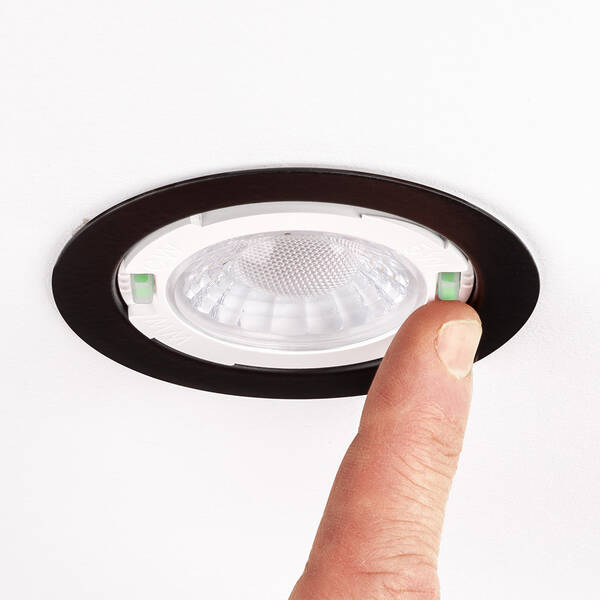

Wattage & colour selectable from below the ceiling
Adjust the Wattage and colour temperature via a simple switch. Choose between 3.5W or 5W,
and 3000K/4000K/5700K colour temperatures. Up to 140 lumens per circuit Watt.
Easy glide protective clips
The easy glide protective clips on X50 are designed to reduce ceiling damage and allow for simple ceiling access.
Plug and play two-part connector
Double hinged clear casing allows for clearer access to terminal blocks, whilst a clear cover provides reassurance of secure termination.
Unique easy access resistance testing terminals
Secure plug and play connection, allows for first fix termination. Includes three easy access probe testing terminals for insulation resistance testing. The easy access testing terminals have been designed to fit commonly used probe sizes.
Adjust the Wattage and colour temperature via a simple switch. Choose between 3.5W or 5W,
and 3000K/4000K/5700K colour temperatures. Up to 140 lumens per circuit Watt.
Easy glide protective clips
The easy glide protective clips on X50 are designed to reduce ceiling damage and allow for simple ceiling access.
Plug and play two-part connector
Double hinged clear casing allows for clearer access to terminal blocks, whilst a clear cover provides reassurance of secure termination.
Unique easy access resistance testing terminals
Secure plug and play connection, allows for first fix termination. Includes three easy access probe testing terminals for insulation resistance testing. The easy access testing terminals have been designed to fit commonly used probe sizes.
- Input voltage: 230-240V, 50/60Hz
- Two wattage and three colour selectable from beneath the ceiling
- Wattage selectable: 3.5W (480lm) / 5W (700lm)
- Colour temperature selectable: 3000K, 4000K or 5700K
- CRI: >80
- Beam angle: 60°
- Two-part first fix connector with dedicated testing terminals
- Double hinged terminal for easy access to terminal blocks
- Tested for use in Solid, I-Joist and Steel Open Web joist ceilings
- Triac dimmable as standard
- IP rating: IP65
- Six interchangeable bezel options
- Contains a light source of energy efficiency class B (3W) or C (5W)
- 5 year warranty
Bezel diameter: Ø84mm
Depth: 55mm
Cut-out: Ø68-70mm
Technical:X50 Brochure - 2.12mb pdf Instructions - 1.8mb pdf JC1101WHCP Datasheet - 170kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
JC 1101WHCP
X50 Fire Rated 3.5W/5W LED 3CCT Downlight - IP65 - White (10 pack) |
