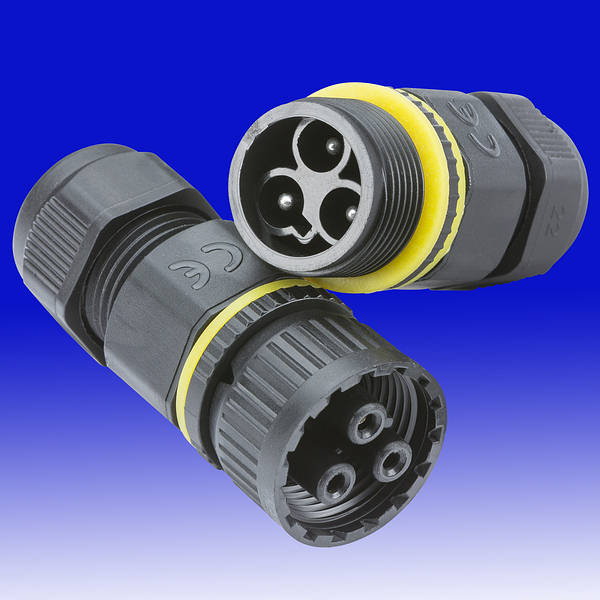

16A Plug and Socket Cable Connector (3 pole) - IP68
Product Code: KB JB0011
5055832960072
JB0011
Loading …
Length – 94mm.
Diameter – 24mm.
16A Plug and Socket Cable Connector
(3 pole) - IP68
(3 pole) - IP68
16A plug and socket cable connector (3 pole) - IP68.
Terminal capacity (mm) - 1.5mm.
Warranty – 3 Years
Terminal capacity (mm) - 1.5mm.
Warranty – 3 Years
- 16A, 3 pole, IP68 cable connector.
- Made from PA66, V-0, 960°C, PTI:250 with silver plated copper contacts and silicone sealing gasket.
- Screw fix terminal, min 5mm, Max.
- 12mm Max outer cable diameter.
- M22 size cable glands.
- CE, EN 62444:2013.
- Construction - Nylon (PA66).
- Max load (A) – 16A.
- Gland size – M22.
Length – 94mm.
Diameter – 24mm.

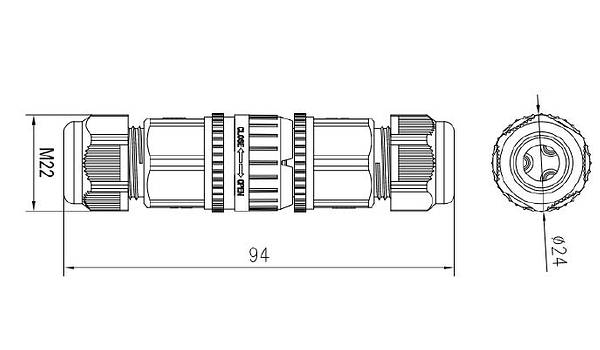

Technical:KBJB0011 Datasheet KBJB0011 Instructions KBJB0011 Line Drawing |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
KB JB0011
16A Plug and Socket Cable Connector (3 pole) - IP68 |
