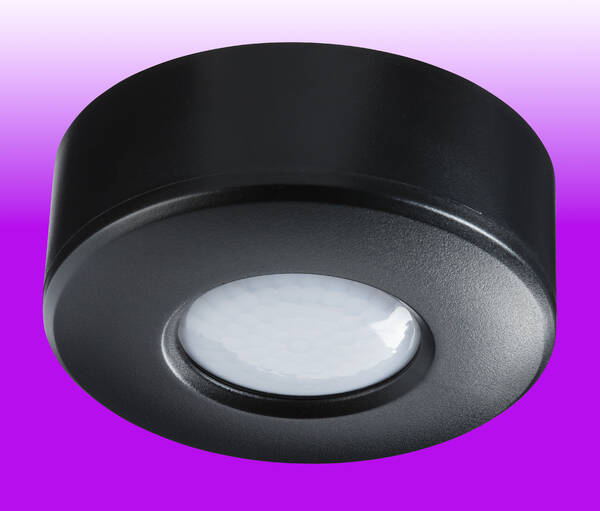

360° Surface or Recess Mounting PIR Sensor - IP20 - Black
Product Code: KB OS0025B
5056270847109
OS0025B
Loading …
Diameter: 93mm
Projection: 36mm
Cut-out: 73mm
Recessed depth: 28mm
Knightsbridge
360° Surface or Recess Mounting PIR Sensor - IP20
Black
360° Surface or Recess Mounting PIR Sensor - IP20
Black
2 in 1 PIR ceiling sensor.
Pre-fitted with ceiling springs for easy recess installation, or simply remove and use with surface box included.
Ideal for energy saving installations in the workplace, corridors, offices, toilets etc, where light control can make all the difference.
Pre-fitted with ceiling springs for easy recess installation, or simply remove and use with surface box included.
Ideal for energy saving installations in the workplace, corridors, offices, toilets etc, where light control can make all the difference.
- Input voltage: 230V, 50Hz
- Switching capacity: Max. 2000W incandescent / Max. 1000W LED
- Sensor type: PIR
- Sensor override: No
- Sensor detection angle: 360°
- Optimum detection range: 8m
- Light ON duration (adjustable): 10 seconds to 7 minutes.

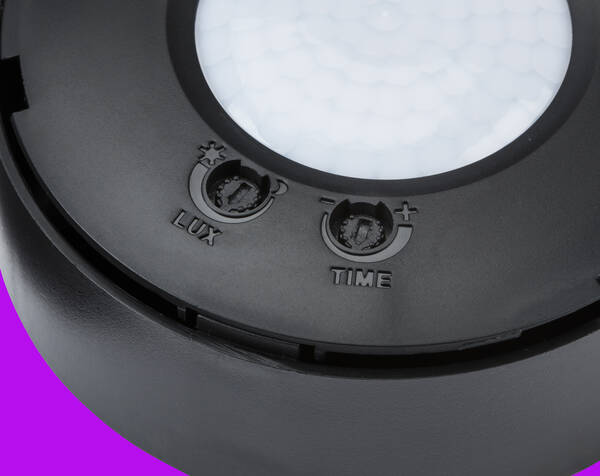

- Lux settings (adjustable): <10 to 2000 Lux.
- Construction: Polycarbonate.
- IP rating: IP20 - for indoor use only.
- Protection class: II.
- Warranty: 2 years.
Diameter: 93mm
Projection: 36mm
Cut-out: 73mm
Recessed depth: 28mm
Technical:KBOS0025B Datasheet - 200kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
KB OS0025B
360° Surface or Recess Mounting PIR Sensor - IP20 - Black |
