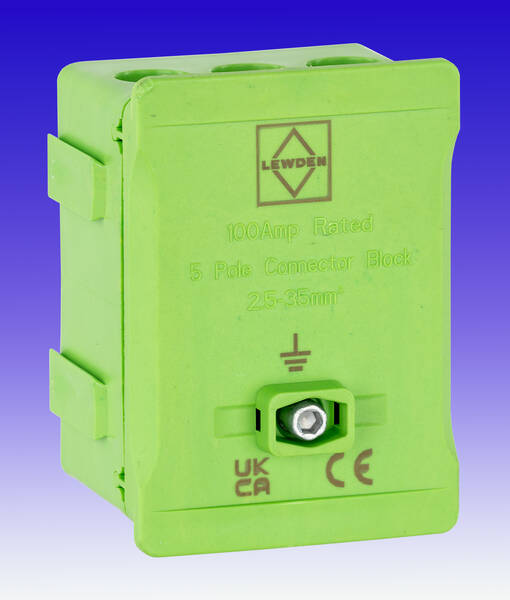

100A 5 Way Connector Block - Green
Product Code: LD CB5GN
5026992053034
DT1005GN
Loading …
Height: 70mm
Width: 49mm
Depth: 43mm
Lewden
100A 5 Way Connector Block - Green
100A 5 Way Connector Block - Green
5 way single pole terminal block, colour coded for easy identification of phase / neutral / earth.
- 5 way single pole terminal block
- Rating: 100A 230VAC
- Can accept up to 5 conductors (2.5-35mm²)
- Top and bottom cable entry points
- Dual screw terminations (4mm allen key) for secure
connection of conductors - Terminal tightening torque: 3Nm
-
Modular construction – terminal blocks can be close
coupled for ease of installation - Secure cover (3mm allen key) with wire locking capability
- Retained shutters for blanking of unused cable entries
- 960°C glow wire tested
- Ingress protection: IP20
- Applicable standards: BS EN60998-1 / BS EN 60998-2-1
Height: 70mm
Width: 49mm
Depth: 43mm
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
LD CB5GN
100A 5 Way Connector Block - Green |
