40W Dimmable Driver for LTSP40 & LTSP32CCT LED Panels
40W Dimmable Driver for LTSP40 & LTSP32CCT LED Panels

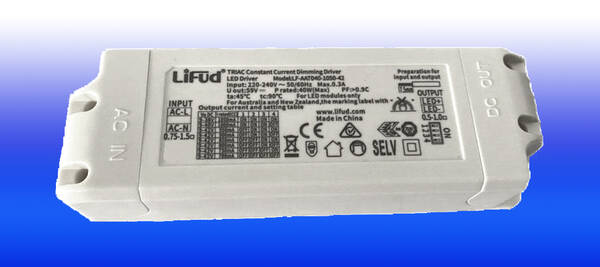

LTDR40DIM is a 40W constant current Triac dimmable LED driver with 0-100% dimming range.
It is compatible with leading and trailing edge dimmers and has flicker-free effect during the whole process of dimming.
Its rated input voltage ranges from 198 to 253Vac and output current is adjustable from 700 to 1050mA via a DIP switch with every 50mA as a step.
It is compatible with leading and trailing edge dimmers and has flicker-free effect during the whole process of dimming.
Its rated input voltage ranges from 198 to 253Vac and output current is adjustable from 700 to 1050mA via a DIP switch with every 50mA as a step.
- Constant current output and the output current adjustable via a DIP switch.
- Built-in active PFC function.
- Smooth dimming; dimming depth =1%.
- Supports Triac dimming.
- 5-year warranty.
- Maximum output voltage: 42V.
- Maximum output current: 1050mA.
-
Application:
Horticultural lighting.
Indoor office lighting.
Decorative lighting.
Commerical Lighting.
Residential Lighting.
Technical:LTDR40DIM Datasheet pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
LT DR40DIM
40W Dimmable Driver for LTSP40 & LT32CCT LED Panels |
