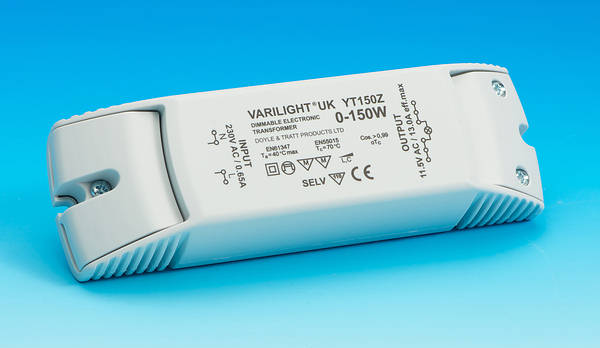

Premium Electronic Lighting Transformer 0w - 150w
Product Code: LT YT150
5021575960051
YT150Z
Loading …
Length - 167mm.
Height - 38.5mm.
Width - 52.5mm.
TLC - Premium Transformer ( 0w - 150w )
Unique internal architecture enables up to 10 x LT YT150`s to be used on one dimmable circuit
(currently a maximum of 5 transformers per circuit can be used).
Transformer performs from 0W (ie total lamp failure) to its maximum rating and every stage between.
Perfect compatibility with TLC iQ Dimmers
Short-circuit protected to insure against clumsy installation. Normal service is resumed when short circuit is removed.
Thermal and Overload protection. Both of these features are fully reversible so as not to damage the transformer or any equipment on the circuit. Ultra-cool running reduces risk of product failure.
Captive screws for ease of installation in tricky areas.
Designed in conjunction with electricians for ease of fitting with particular attention paid to cable termination.
Clear and simple labelling and fitting diagram
Soft start to extend lamp life.
Fully tested and certified.
2 pairs of input terminals. 3 pairs of output terminals (load can be split or draw total load from 1 pair of terminals)
Note: - Not suitable when used in conjunction with LEDs and a dimmer
- Input voltage 230V 10% /50Hz
- Input current 0,65A for 150W
- Power range 150VA: 0-150W
- Output voltage 11,5V max. 13,0A
- Power factor > 0,99
- Ambient temperature 0 - 40°C
- Insulation class II
- Casing type EC05
- Input terminals quantity 4
- Output terminals quantity 6
- Weight 212g
- IP20 protection
Length - 167mm.
Height - 38.5mm.
Width - 52.5mm.
Technical:LTYT150 Datasheet |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
LT YT150
Premium Electronic Lighting Transformer 0w - 150w |
