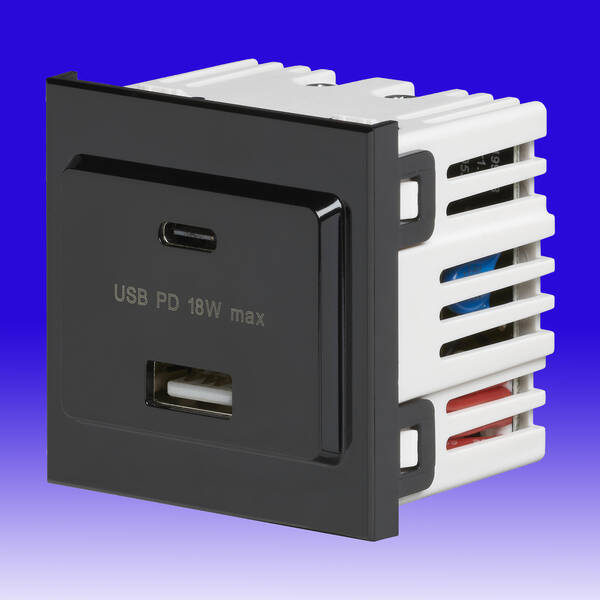

MK 3.1A USB Euro 2 Port Charging Module A+C - Black
Product Code: MK K5847B
5063208000000
K5847BLK
Loading …
50 x 50mm
Min. mounting box depth:
47mm
MK
USB PD 3.1A Charging Module - Type A+C
Black
USB PD 3.1A Charging Module - Type A+C
Black
USB Type A+C 18W Power Delivery (PD) Charging
One 18W universal USB PD will be able to power a wide variety of electronic devices.
The charger will communicate with connected electronic devices using PD protocol to negotiate charging parameters (current/voltage), in order to optimize charging speed and also protect the battery lifetime.
Standard snap-fit Euro module design: fits into any standard Euro front plate with a 50 x 50mm aperture.
Ultimate flexibility of application with a selection of frontplate options as well as custom combination plates.
N.B. When both A & C ports are in use, the output voltage is 5V with combined total current and power of 3A and 15W respectively.
One 18W universal USB PD will be able to power a wide variety of electronic devices.
The charger will communicate with connected electronic devices using PD protocol to negotiate charging parameters (current/voltage), in order to optimize charging speed and also protect the battery lifetime.
Standard snap-fit Euro module design: fits into any standard Euro front plate with a 50 x 50mm aperture.
Ultimate flexibility of application with a selection of frontplate options as well as custom combination plates.
N.B. When both A & C ports are in use, the output voltage is 5V with combined total current and power of 3A and 15W respectively.
- 18W Fast charging with PD protocol
- Voltage: 220-250Va.c. 50/60Hz
- USB outlets are designed to provide optimum charging compatibility across a wide range of devices
- Differing manufacturers devices can be charged
simultaneously via the two USB outlets - Electronically protected against an overload or
short circuit on either USB outlet - Terminal capacity: 3 x 2.5mm2 with captive terminal screws
- Both USB ports support max. 18W of charging power
- USB Type-A port:
5V DC 3A (15W)
9V DC 2A (18W)
12V DC 1.5A (18W) - USB Type-C port:
5V DC 3A (15W)
9V DC 2A (18W)
12V DC 1.5A (18W) - 2 Year product guarantee
50 x 50mm
Min. mounting box depth:
47mm
Technical:MKK5847 Brochure - 390kb pdf MKK5847 Datasheet - 100kb pdf USB Charging Module FAQs - 110kb pdf |
|
