RC3 Digital Inspection Camera - 15m
Product Code: RU N10214
9120045477894
RUN10214
Loading …
Cable length: 15m
Camera diameter: Ø13mm
Monitor dimensions:
96mm x 172mm x 31mm
Camera reel dimensions:
Ø260mm x 63mm
Runpocam App:
Runpotec
RC3 Digital Inspection Camera - 15m
RC3 Digital Inspection Camera - 15m
The RC3 Digital Inspection Camera combines innovative technology with smart connectivity to make professional inspections easier and more precise. Equipped with a flexible dual camera system, it delivers images and videos in full HD quality.

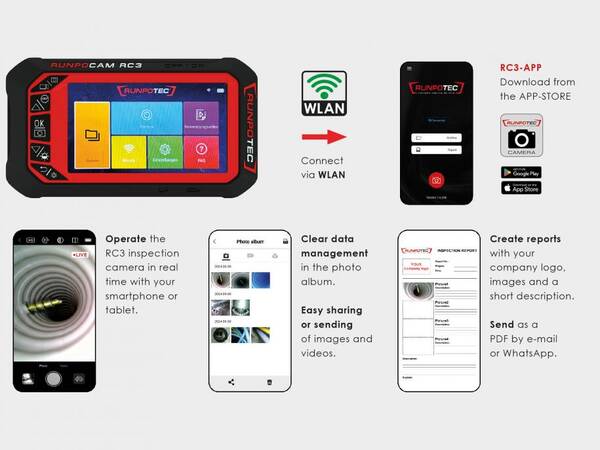

The RC3 app enables the preservation of evidence, image archiving and comprehensive documentation of recordings, and it allows for easy sharing of images and videos. Reports with a company logo and description can be sent as a PDF via email or WhatsApp.

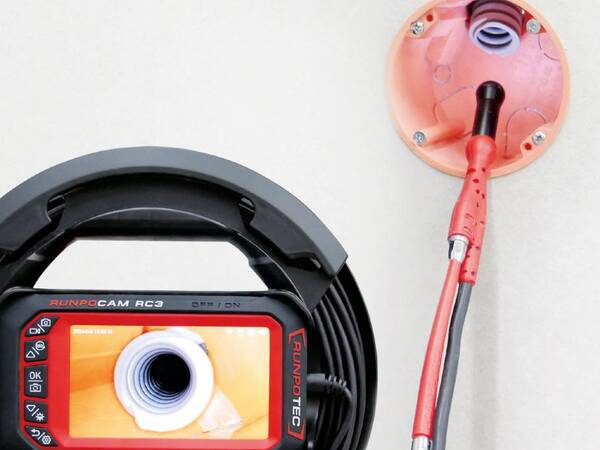

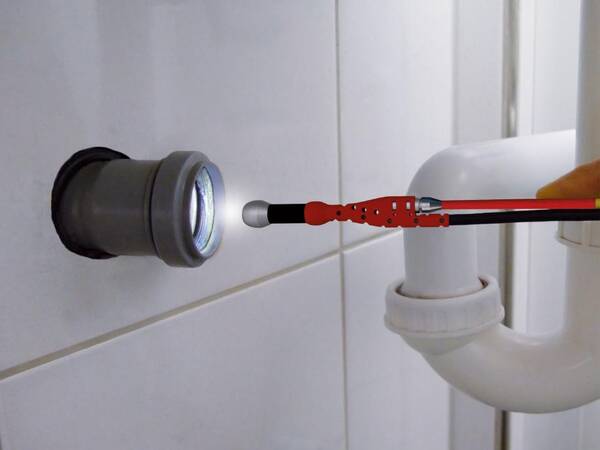

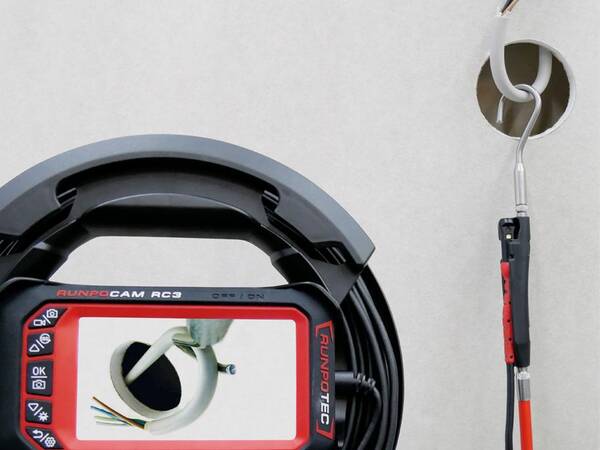

The camera is perfect for use in areas that are difficult to access because it can be controlled via WLAN using the RC3 app on a smartphone. With an IP67 protection class, whether it's hollow walls, pipes (with a min. internal diameter of 14mm) or ventilation systems, the RC3 delivers razor-sharp images and can be conveniently operated via mobile devices.
It should be noted that the camera can only be used in combination with the RUNPOTEC cable pulling systems (GF3, GF4.5, GF6, RUNPOSTICKS and RP1), with different systems being used depending on the application.
The RC3 app enables the preservation of evidence, image archiving and comprehensive documentation of recordings, and it allows for easy sharing of images and videos. Reports with a company logo and description can be sent as a PDF via email or WhatsApp.
The camera is perfect for use in areas that are difficult to access because it can be controlled via WLAN using the RC3 app on a smartphone. With an IP67 protection class, whether it's hollow walls, pipes (with a min. internal diameter of 14mm) or ventilation systems, the RC3 delivers razor-sharp images and can be conveniently operated via mobile devices.
It should be noted that the camera can only be used in combination with the RUNPOTEC cable pulling systems (GF3, GF4.5, GF6, RUNPOSTICKS and RP1), with different systems being used depending on the application.
-
Camera head Ø13mm with front and side camera:
Both cameras offer full HD image and video resolution (1920 x 1080) with integrated, dimmable LEDs (8 LEDs on the front camera, 1 LED on the side camera). Camera resolution 998,400 pixels (1280 x 720) – both front and side camera - 5 inch IPS colour display:
Clear view thanks to the high-resolution display with 518,400 pixels (960 x 540) - WLAN connection and RC3 app control:
Convenient control and monitoring via smartphone or tablet (Android 6.0+ / iOS 10.0+) - Removable monitor module:
Robust design with shock-resistant rubber cover for use in demanding environments - RTG 6 thread:
For connecting to RUNPOTEC insertion tools, for use in pipes from min. Ø14mm, as well as large pipes and even without pipes, such as hollow walls, cable ducts and double ducts and much more
-
IP67 protection class:
Camera head and cable are protected against dust and water - 15m camera cable:
Offers a wide range and flexibility during the inspection - Lithium-ion battery:
Runtime of up to 3 hours for long inspections without interruption - Dimmable LED light:
Perfect visibility even in dark or poorly lit areas - Box with rotating handle and grip:
Practical and secure storage of the device - Wide range of accessories:
Comes with an 8-piece accessory box, including: 1 x RC2/RC3 thread attachment, 1 x flexible attachment, 1 x 1m fibreglass rod Ø3mm, 1 x 8Gb micro memory card, 1 x connection thread, 1 x magnet, 1 x fishing hook, 1 x USB charging cable - 1.5m
Cable length: 15m
Camera diameter: Ø13mm
Monitor dimensions:
96mm x 172mm x 31mm
Camera reel dimensions:
Ø260mm x 63mm
Runpocam App:
Technical:RUN10214 Datasheet - 860kb pdf |
|
