13.8VDC Switch Mode Power Supplies - 25A
Product Code: SK 650761
5015972228623
650.761UK
Loading …
220mm x 50mm x 115mm
Output channels:
3
Short circuit protection.
Overload protection.
Auto reset.

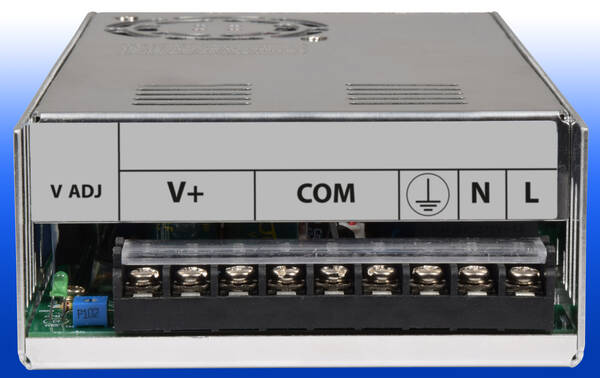

Easy installation, screw terminals.
Cooling fan.
13.8V Switch Mode Power Supplies - 25A
(Max 345W)
(Max 345W)
For indoor use only
13.8VDC regulated switch mode power supplies.
Powered from either a 110V or 240V AC input and suitable for use in applications that require a stable and regulated DC voltage output.
The primary advantage of switch-mode power supplies is their higher efficiency compared to linear power supplies.
This efficiency is achieved by rapidly switching the input voltage on and off at a high frequency and then filtering and regulating the output voltage to the desired level.
Switch mode power supplies offer several advantages. As well as higher efficiency, they are smaller in size, lighter in weight, and have the ability to handle a wide range of input voltages.
The specific voltage of 13.8V is commonly used because it aligns with the nominal voltage of a 12V lead-acid battery when it is fully charged. This makes these power supplies compatible with systems that are normally battery-powered and allows them to provide a stable power source even when the battery voltage fluctuates.
n.b. "Switch mode" is often used interchangeably with "switching mode" or "switching power supply" to refer to the same concept.
13.8VDC regulated switch mode power supplies.
Powered from either a 110V or 240V AC input and suitable for use in applications that require a stable and regulated DC voltage output.
The primary advantage of switch-mode power supplies is their higher efficiency compared to linear power supplies.
This efficiency is achieved by rapidly switching the input voltage on and off at a high frequency and then filtering and regulating the output voltage to the desired level.
Switch mode power supplies offer several advantages. As well as higher efficiency, they are smaller in size, lighter in weight, and have the ability to handle a wide range of input voltages.
The specific voltage of 13.8V is commonly used because it aligns with the nominal voltage of a 12V lead-acid battery when it is fully charged. This makes these power supplies compatible with systems that are normally battery-powered and allows them to provide a stable power source even when the battery voltage fluctuates.
n.b. "Switch mode" is often used interchangeably with "switching mode" or "switching power supply" to refer to the same concept.
-
Automotive and marine applications
13.8VDC regulated switching power supplies are used in vehicles and boats for various purposes. They can power devices such as communication equipment, entertainment systems, lighting and other electrical accessories. - Security and surveillance systems
These power supplies can be used to provide power to security cameras, DVRs (digital video recorders), and other surveillance equipment. They ensure a stable power source for continuous operation and reliable video recording. - Electronics and electrical testing
In electronics labs and testing environments, these power supplies are used to provide a stable voltage source for testing and powering electronic circuits, components, and devices. - Amateur radio
These power supplies are often used by amateur radio operators to power their radio equipment. They provide a reliable and constant power source for transmitting and receiving signals.
-
LED lighting
13.8VDC regulated switching power supplies are commonly used to power 12VDC LED lighting systems such as LED strips, bulbs, and other lighting fixtures as these often require a stable and regulated power source to ensure optimal performance and longevity. - Telecommunications/Data applications
13.8VDC power supplies are used in telecommunications equipment, such as routers, switches, and modems, to provide a regulated power source for reliable operation and data transmission. - Industrial automation
In industrial settings, these power supplies can be used to power various control systems, sensors, and actuators. They provide the necessary voltage to operate and control industrial machinery and processes.
220mm x 50mm x 115mm
Output channels:
3
Short circuit protection.
Overload protection.
Auto reset.
Easy installation, screw terminals.
Cooling fan.
Technical:13.8V Power Supply Datasheet |
|
