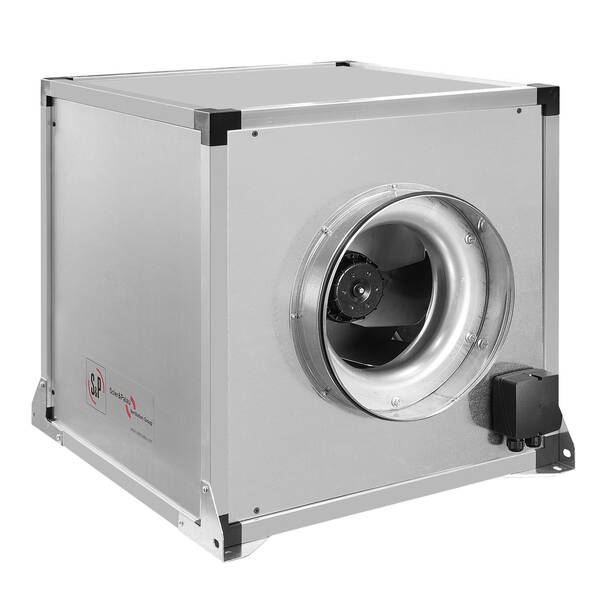

Centrifugal In-Line Acoustic Box Fan Pack 7 - 500mm Duct c/w VFD Controller
Product Code: SL CVP7
8413893747891
CVAT PACK 7
Loading …
Weight: 32.0kg.
Watch Video
For all dimensions see
datasheet below
Applications:
Commercial kitchen canopy extract systems.
Centrifugal In-Line Acoustic Box Fan - 500mm Duct
c/w VFD controller
c/w VFD controller
Finish:
Galvanized steel with Aluminium profile edging.
Plug & Play Fan and Inverter Speed Controller Package.
The CVAT fans are centrifugal for mounting into circular duct or rectangular duct.

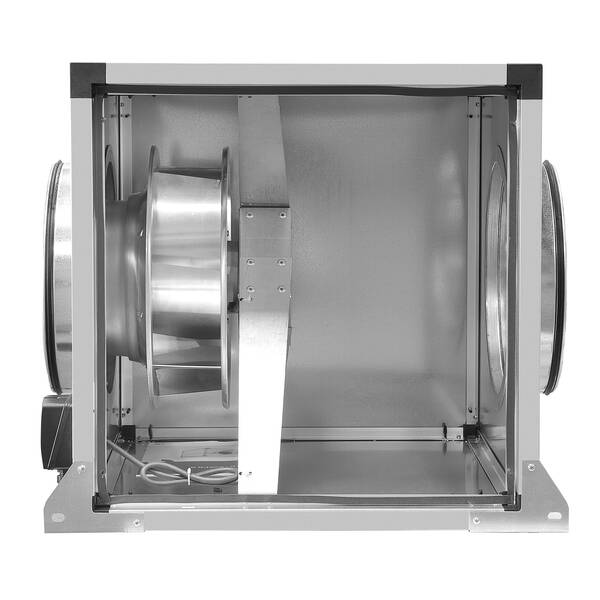

Double thickness side panels lined with a 25 mm thickness of fireproof
fiberglass acoustic insulation.

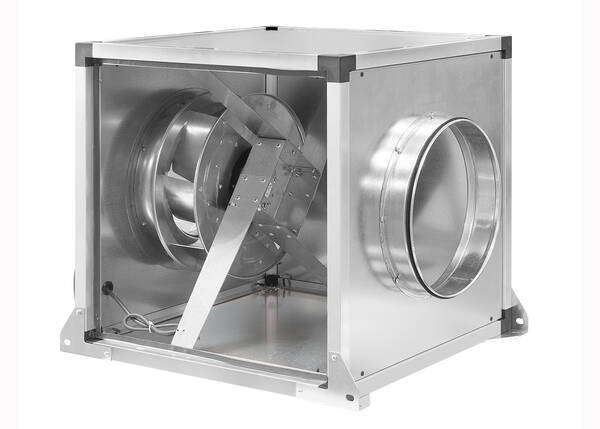

Dynamically Balanced Backward curved centrifugal Impellers to reduce dirt
accumulation.
Fans CVAT are designed for transport of air without mechanical
particles, which could cause abrasion or imbalanced of the impeller.
Galvanized steel with Aluminium profile edging.
Plug & Play Fan and Inverter Speed Controller Package.
The CVAT fans are centrifugal for mounting into circular duct or rectangular duct.
Double thickness side panels lined with a 25 mm thickness of fireproof
fiberglass acoustic insulation.
Dynamically Balanced Backward curved centrifugal Impellers to reduce dirt
accumulation.
Fans CVAT are designed for transport of air without mechanical
particles, which could cause abrasion or imbalanced of the impeller.
- Max Amp: 4.3.
- Sound dB(A) @3m: 48.
- Requires a 1PH 230V 50Hz electrical supply.

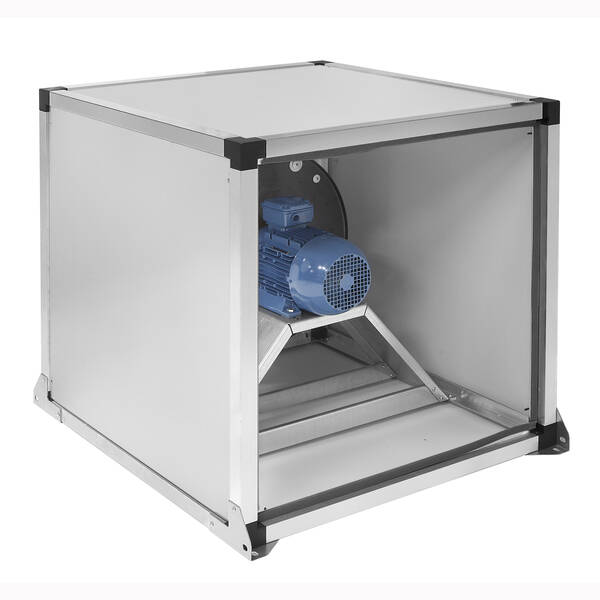

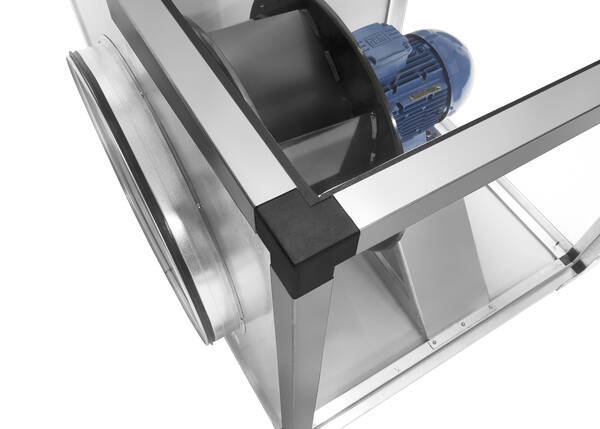

- Robust centrifugal backward inclined impeller matched with an energy efficient 3PH motor (fan).
- Supplied as standard with a 1PH-3PH variable frequency drive (VFD) speed controller, pre-configured for precise operation with S&P 3PH CVAT fan.
- 3 Year Warranty.
- Max Airflow m3/s: 2.267.
- Nominal RPM: 1480.
- Max Wattage: 1347.
- Suitable for circular ductwork (500mm Diameter).
- Motor overload protection provided by pre-configured VFD.
- Low noise levels.
- Includes fireproof insulated interchangeable panels.
- Suitable for duct airstream temperatures up to 40°C.
Weight: 32.0kg.
Watch Video
For all dimensions see
datasheet below
Applications:
Commercial kitchen canopy extract systems.
Technical:Inverter Instructions 900kb Datasheet 500kb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
SL CVP7
Centrifugal In-Line Acoustic Box Fan Pack 7 - 500mm Duct c/w VFD Controller |
