16A Single Channel DIN Rail Mounted Timer 24hr/7 Day
Product Code: SM NTDR16C
5012483015902
NTDR16C
Loading …
Height: 90mm
Width: 18mm
Depth: 60mm
Timeguard
16A Single Channel DIN Rail Timer 24hr/7 Day
16A Single Channel DIN Rail Timer 24hr/7 Day

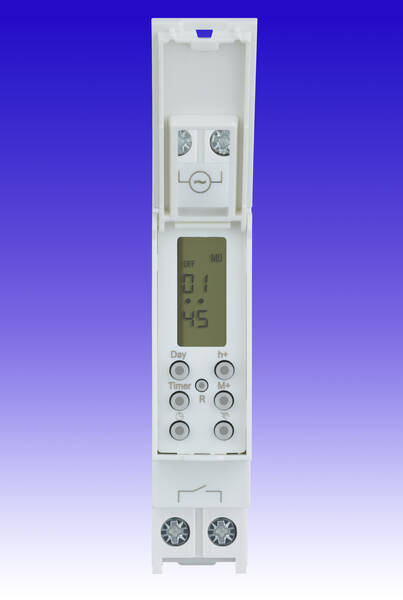

The SMNTDR16C is a single module DIN Rail timeswitch with a full digital 24 hour display and volt free output.
The battery backup allows for up to 1000 hours of power reserve from a power cut,
keeping your programme sets retained for when power is restored.
This unit boasts a high load capability without the need for a contactor.
The battery backup allows for up to 1000 hours of power reserve from a power cut,
keeping your programme sets retained for when power is restored.
This unit boasts a high load capability without the need for a contactor.
- Operating voltage: 230V AC, 50Hz
- DIN Rail mount
- Earth class: Class II
- Battery type: NiMH 1.2V 40mAH
- Power reserve: Up to 1000 hours
- Battery charge time: 24 hours
- Contact type: Normally open
- Program modes: 24 Hour / 7 Day, manual override
- Switch type: Single pole, single throw
- Standby consumption: <1W
- Single channel
- Switch rating: 16A Resistive, 2A Inductive, 400W LED
- Shortest switching time: 1 minute
- Programmable slots: 6 ON, 6 OFF
- Permanent ON facility
- Cable capacity: 2.5mm²
Height: 90mm
Width: 18mm
Depth: 60mm
Technical:SMNTDR16C Datasheet - 375kb pdf Instructions - 720kb pdf |
|
