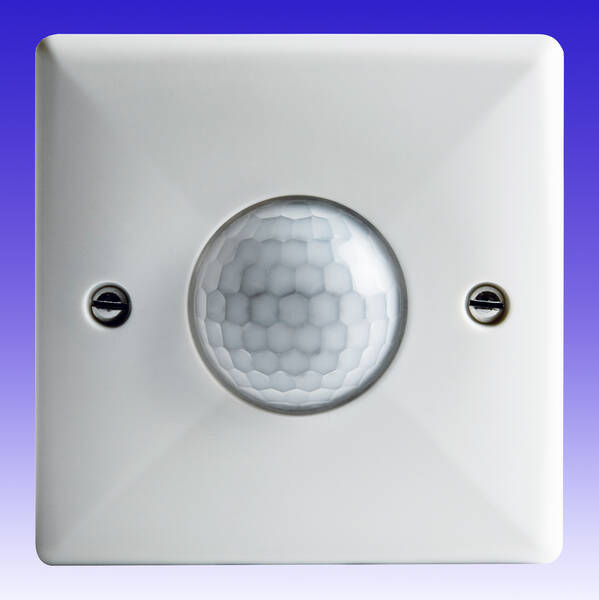

120° Wall Mount PIR Occupancy Switch
Product Code: SM PDWM1500
5012483011867
PDWM1500
Loading …

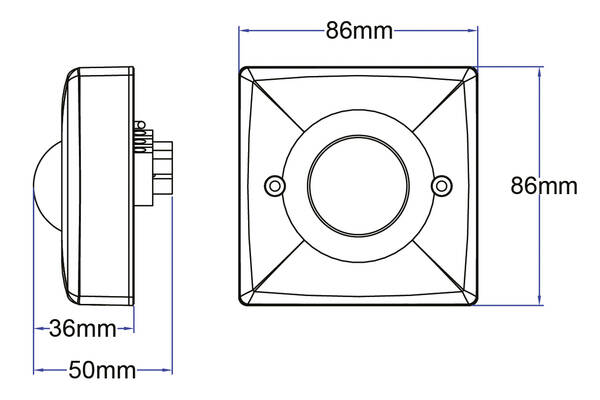

Height: 86mm
Width: 86mm
Projection: 36mm
Recessed depth: 14mm
Timeguard
120° Wall Mount PIR Occupancy Switch
120° Wall Mount PIR Occupancy Switch
Timeguard take PIR Presence Detection to the next level for optimum coverage and with up to 1500W loading and 10m detection range this powerful unit is the ideal choice for all energy saving installations in the workplace, corridors, offices, toilets etc.
- Operating voltage: 230V AC, 50Hz
- Optimum mounting height: 1m
- Presence detection: 5m
- Motion detection: 10m
- Detection angle: 120°
- Single channel
- Switch rating:
420W LED
1500W Halogen or Fluorescent
250W Fan - Standby consumption: <1W

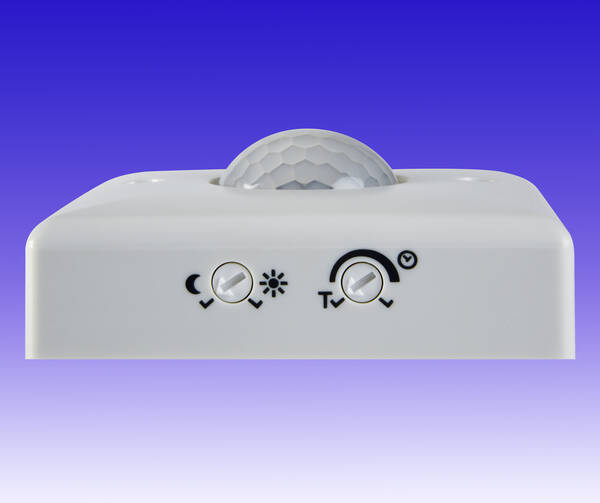

- Dial adjustment
- ON time adjustment: 1-30min.
- LUX level: 5 to 1000
- Permanent ON facility: yes (pulse override)
- Units can be wired in parallel
- Installation type: wall mount
- Class II
- Operating temperature: -20°C to 40°C
- IP rating: IP55
- 3 year warranty
Height: 86mm
Width: 86mm
Projection: 36mm
Recessed depth: 14mm
Technical:SMPDWM1500 Datasheet - 410kb pdf Instructions - 2.1mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
SM PDWM1500
120° Wall Mount PIR Occupancy Switch |
