Electronic Boost Timer 15min to 4 Hour
Product Code: SM TGBT4N
5012483015186
TGBT4N
Loading …
Width: 85mm.
Height: 85mm.
Depth: 31mm.
TimeGuard

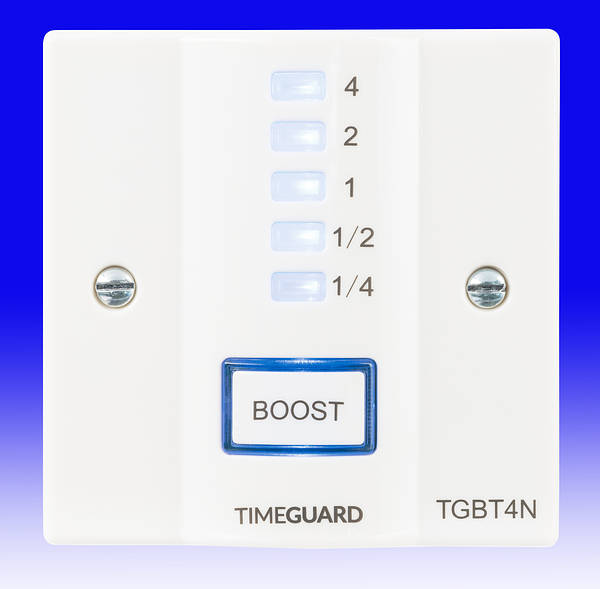

TGBT4N 4 Hour - Electronic Boost Timer
TGBT4N 4 Hour - Electronic Boost Timer
BoostMaster Countdown Switches now added to the range providing timed output.
Automatic timed countdown selections for up to 4 hours using
a simple push button, making them completely effortless.
Automatic timer countdown selection for up to 4 hours – 13A (3kW) loading.
Typical applications such as immersion heaters, room heaters, towel rails and lighting.
Fits a standard flush or surface mount BS wall box min. 25mm deep.
Automatic timed countdown selections for up to 4 hours using
a simple push button, making them completely effortless.
Automatic timer countdown selection for up to 4 hours – 13A (3kW) loading.
Typical applications such as immersion heaters, room heaters, towel rails and lighting.
Fits a standard flush or surface mount BS wall box min. 25mm deep.
- Contact Type - Normally open.
- Setting Type - Digital.
- Operating Voltage - 230V 50Hz.
- Switch Rating 230V AC 13A (3kW) resistive, 1000W Filament lighting, 500W Fluorescent lighting, 100W CFL or LED lighting.
- Timer Mode - Boost.
- Operating Temperature: 0°C to 45°C.
- Boost Times - ¼ hour, ½ hour, 1, 2 and 4 hours.
- Wall Box - Minimum depth 25mm.
- Warranty – 3 Years
Width: 85mm.
Height: 85mm.
Depth: 31mm.
Technical:Boost Timer Instructions 450kb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
SM TGBT4N
Electronic Boost Timer 15min to 4 Hour |
