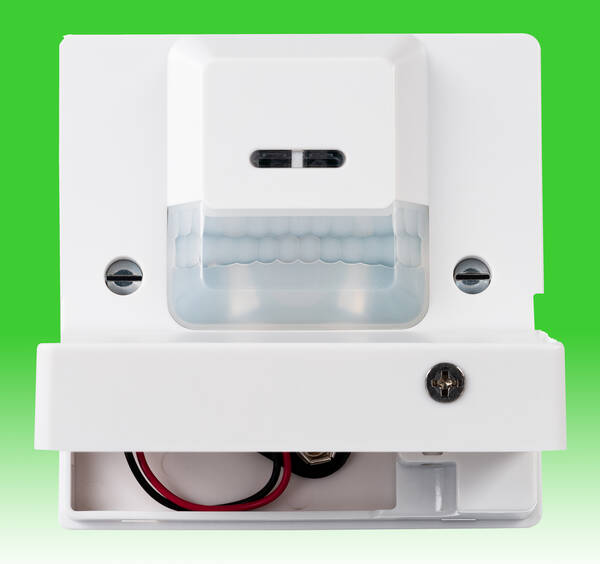

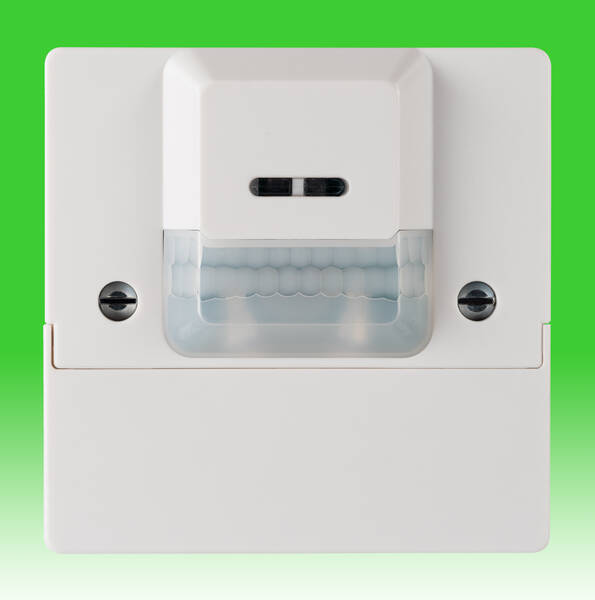

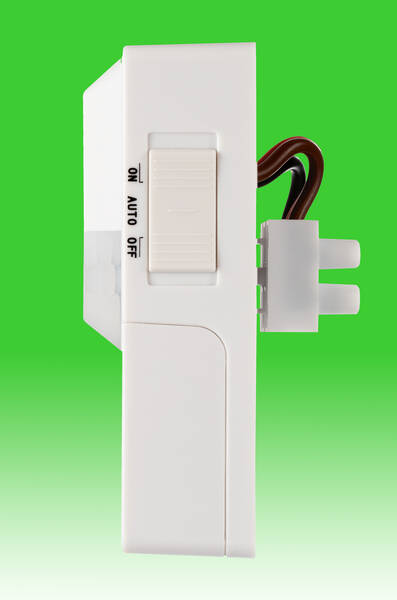

Motion Sensor PIR Light Switch - 2 Wire
Product Code: SM ZV810N
5012483015049
ZV810N
Loading …
86mm x 86mm x 30mm
Timeguard
Motion Sensor PIR Light Switch - 2 Wire
Motion Sensor PIR Light Switch - 2 Wire
Style and functionality with Timeguard's range of energy-saving, programmable and motion sensor light switches.
- Operating voltage: 230V AC, 50Hz
- Battery: 9V DC battery supplied (replaceable)
- Earth class rating: Class II
- IP rating: IP20

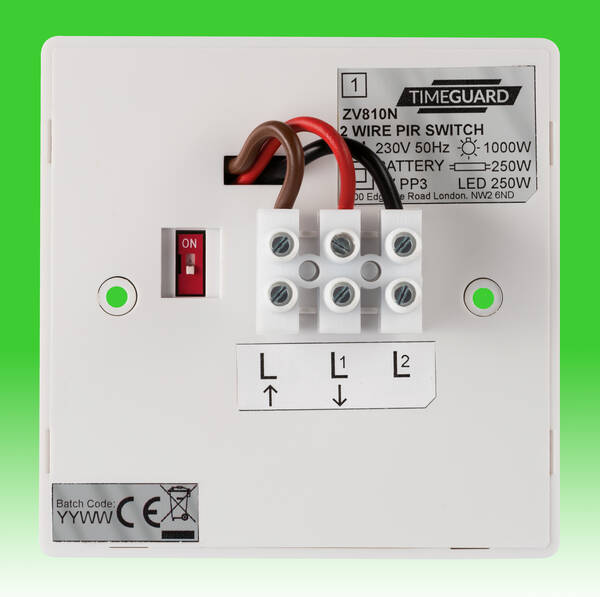

- 2-wire connection - no neutral required
- Fits a standard flush or surface mount wall box, min. 25mm depth
- Switch type: single or two way
- Detection angle: 170°
- Motion detection range: 8m front, 4m side
-
Switch rating:
400W LED
2000W Incandescent/Halogen
250W Low energy (CFL)

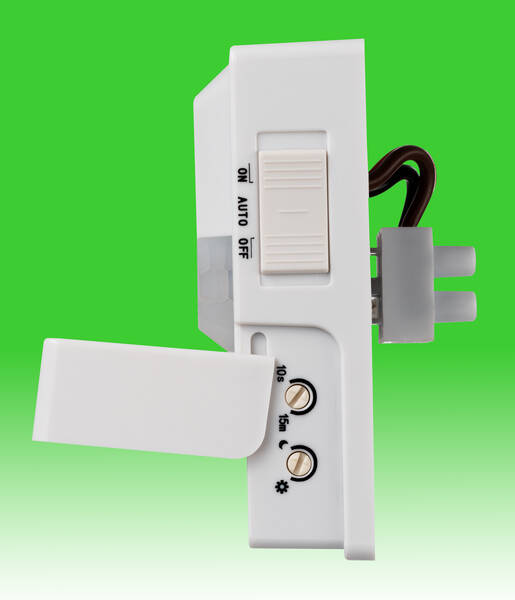

250W Fluorescent - Permanent ON facility (slider switch)
- Multiple unit support
- ON time adjustment: 10 seconds to 15 minutes
- LUX level: 1 to 10
- Concealed front panel with retaining screw
86mm x 86mm x 30mm
Technical:SMZV810N Datasheet - 350kb pdf Instructions - 2.63mb pdf |
|
