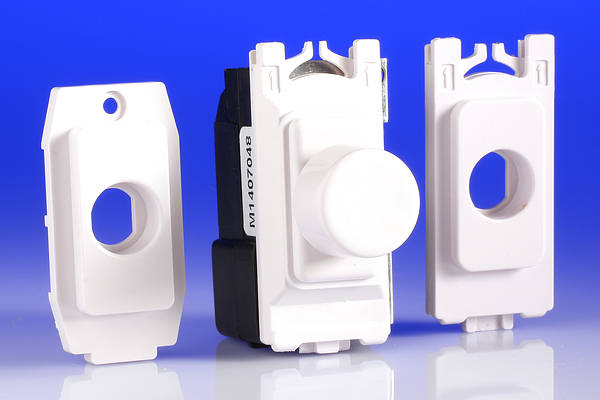

120W V-PRO Silent LED Multi Grid Dimmer - White
Product Code: VL GJP100WMG
5021575969047
GJP100W.MG
Loading …
Min 35mm deep boxes recommended
to aid heat dissipation.
LED Loads
1-10 LEDs per dimmer (max. 120W)
Incandescent
(max. 200W per dimmer)
Mains Halogen
(max. 150W per dimmer)
Eco Halogen
(max. 150W per dimmer)
Low Voltage Halogen
(max. 150W per dimmer)
Varilight
0w to 120w 2 Way V-PRO LED Multi Grid Dimmer
White
for use with MK, Schneider Ultimate & Lisse, Crabtree,
Hager, Deta, BG and Varilight PowerGrid Plates
0w to 120w 2 Way V-PRO LED Multi Grid Dimmer
White
for use with MK, Schneider Ultimate & Lisse, Crabtree,
Hager, Deta, BG and Varilight PowerGrid Plates
Professional Trailing-Edge Dimmers (V-Pro).
Our most versatile dimmer switch.
High quality UK design and manufacture.
Trailing edge for smooth, totally silent dimming.
Intelligent detection of the lamp type for adaptive control of most loads.
Overload protection. Superb performance with most dimmable LED lamps.
Soft start and gentle waveform to considerably extend lamp life
- Soft start to extend lamp life Saves energy
- Steps down output under partial overload,
- Switches off under gross overload, protecting components and extending product life.
- Normal operation resumes once load is corrected.
- iQ intelligent control of awkward loads
- Push-on / Push-off 2 Way switching
- Specifically for use on the primary circuit of low voltage lighting transformers.
- Any combination of transformers up to the maximum rating may be connected
- Automatic self-resetting overload protection
- Automatic self-resetting thermal protection
- How to Program Varilight V-Pro Dimmers
-
Suitable for
Incandescent GLS Lamps
Candle, Golf Ball etc
12V Dichroic lamps (best with Telco premium low voltage transformers)
Mains Halogen (GU10 Etc)
Varilight Dimmable CFL
Leading Edge Dimming Loads
Trailing Edge Dimming Loads
Other Dimmable CFL (subject to manufacturers Guidelines)
Dimmable Mains LED
Very low wattage loads - Not Suitable for
Dimmable Ballast
Fluorescent Tubes
Wire Wound Low Voltage (or other inductive Load)
TRIAC dimmable drivers (Choose V-COM series dimmers)
Min 35mm deep boxes recommended
to aid heat dissipation.
LED Loads
1-10 LEDs per dimmer (max. 120W)
Incandescent
(max. 200W per dimmer)
Mains Halogen
(max. 150W per dimmer)
Eco Halogen
(max. 150W per dimmer)
Low Voltage Halogen
(max. 150W per dimmer)
| British Made - |
Technical:Dimmer Selection Guide - pdf 180k MultiGrid Adaptors - pdf 180k Grid Instructions - pdf 180k V-PRO Instructions - pdf 180k VLGJP100WMG Datasheet |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
VL GJP100WMG
120W V-PRO Silent LED Multi Grid Dimmer - White |
