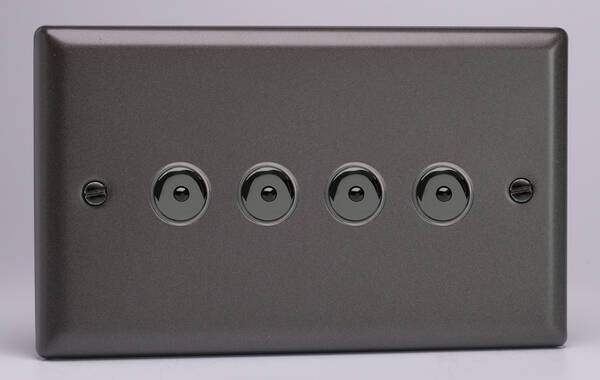

4 Gang 100W V-PRO IR Remote Control/Touch LED Dimmer - Graphite
Product Code: VL IJPI104
5021575572025
IJPI104
Loading …
Do not apply products with metal faceplates directly to freshly plastered or damp surfaces as product may tarnish. If in doubt, use polythene as a temporary gasket to protect the product. Do not use masking tape on this product.
Min Box Depth:
25mm.
Graphite
4 Gang 100w V-PRO IR Master Remote Touch LED Dimmer
4 Gang 100w V-PRO IR Master Remote Touch LED Dimmer
The V-PRO™ IR dimmer range features intelligent overload protection, short circuit protection
and, most importantly, an adjustable minimum brightness and a choice of dimming modes
so that it can be used with lamps which require leading or trailing edge dimming.
This makes the dimmer extremely versatile because it is equipped to deliver
the best possible dimming performance from a given lighting load.
V-Pro™ dimmers are suitable for 0 - 100W of LED lighting (1 - 10 LEDs).
The dimmers also feature soft start to improve lamp life and totally silent operation.
You can dim the lights using touch control or by a remote control handset.
The V-Pro IR master dimmer switches are one way but can be used in conjunction with V-Pro IR slave units in a multi-way circuit (including intermediate and 2 way) so that the lights can be dimmed from more than one location.
In this type of circuit you should use one V-Pro IR master dimmer and any number of V-Pro IR slave units.
and, most importantly, an adjustable minimum brightness and a choice of dimming modes
so that it can be used with lamps which require leading or trailing edge dimming.
This makes the dimmer extremely versatile because it is equipped to deliver
the best possible dimming performance from a given lighting load.
V-Pro™ dimmers are suitable for 0 - 100W of LED lighting (1 - 10 LEDs).
The dimmers also feature soft start to improve lamp life and totally silent operation.
You can dim the lights using touch control or by a remote control handset.
The V-Pro IR master dimmer switches are one way but can be used in conjunction with V-Pro IR slave units in a multi-way circuit (including intermediate and 2 way) so that the lights can be dimmed from more than one location.
In this type of circuit you should use one V-Pro IR master dimmer and any number of V-Pro IR slave units.
- Per Gang Dimmer Load.
- Dimmable LEDs:
Min Load: 0W.
Max Load: 100W (or 1 - 10 LEDs).
Remote control sold separately.
- Full functionality can be achieved by choosing the Varilight® LightScene™ remote control handset, including a master control function which will switch several dimmers on and off simultaneously, and enabling the user to record up to 4 lighting "scenes" and recall them or the previous light settings at the touch of a button.
- V-Pro IR dimmers are capable of learning to respond to a spare button on many existing infra-red remote control handsets.
Do not apply products with metal faceplates directly to freshly plastered or damp surfaces as product may tarnish. If in doubt, use polythene as a temporary gasket to protect the product. Do not use masking tape on this product.
Min Box Depth:
25mm.
| British Made - |
Technical:Dimmer Selection Guide - pdf 180k V-PRO IR Instructions - pdf 180k VLIJPI104 Datasheet |
|
