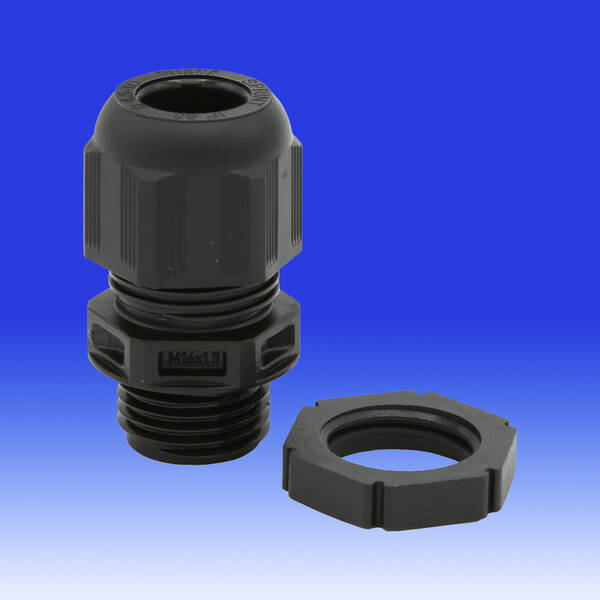

16mm Compression Gland LSF + Locknut for Cable 4.5-10mm - Black (10 Pack)
Product Code: WK GLP16B
4007686028041
99717
Loading …
Dimensions
Wiska
16mm IP68 Compression Gland LSF c/w Locknut - Black
(10 Pack)
16mm IP68 Compression Gland LSF c/w Locknut - Black
(10 Pack)
Product Colour - RAL 9005.
Order no. RAL 9005 - 10106819.
Type - GLP16 Black.
Pack of 10
Protection class: IP69, IP68 (5 bar 30 min).
Order no. RAL 9005 - 10106819.
Type - GLP16 Black.
Pack of 10
Protection class: IP69, IP68 (5 bar 30 min).
- Dimensions
- Length screw-in thread (L): 9mm
- Collar diameter ( E ): 22mm
- Total length (TL): 31mm - 37mm
- Ø Connection thread ( D ): 16mm
- Nut Size ( SW ): 20mm
- Ø cable diameter min: 4.5mm
- Ø cable diameter max: 10mm
- Material cable gland: Polyamide
- Material sealing gasket: EPDM
- Glow wire test: 750°C
- Type of cable anchorage: A
- Temp. range min: -40°C
- Temp. range max: 100°C
- Install. torques fitting: 3.5N/m
- Install. torques cap nut: 1.5N/m
Technical:WKGLP16B Datasheet - 220kb pdf |
|
