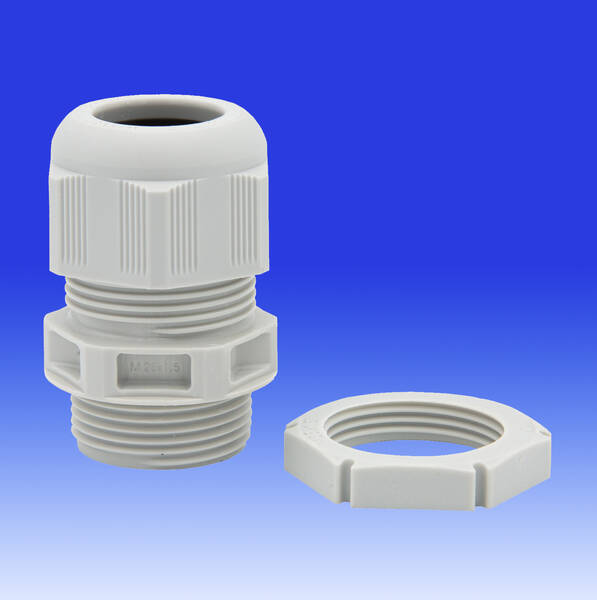

25mm Compression Gland LSF + Locknut for Cable 9-17mm - Grey (10 Pack)
Product Code: WK GLP25G
4007686025644
99704
Loading …
Dimensions
Wiska
25mm IP68 Compression Gland LSF c/w Locknut - Grey
(10 Pack)
25mm IP68 Compression Gland LSF c/w Locknut - Grey
(10 Pack)
Product colour - RAL 7035.
Type - GLP25 Grey.
Pack of 10
Protection class: IP69, IP68 (5 bar 30 min). UV resistant and halogen free.
Type - GLP25 Grey.
Pack of 10
Protection class: IP69, IP68 (5 bar 30 min). UV resistant and halogen free.
- Dimensions:
- Length screw-in thread(L): 10mm
- Collar diameter ( E ): 32mm
- Total length (TL): 38mm - 47mm
- Connection thread ( D ): Ø25mm
- Nut size ( SW ): 29mm
- Cable diameter min.: Ø9mm
- Cable diameter max.: Ø17mm
- Material cable gland: Polyamide
- Material sealing gasket: EPDM
- Glow wire test: 750°C
- Type of cable anchorage: A
- Temp. range min: -40°C
- Temp. range max: 100°C
- Install. torques fitting: 4N/m
- Install. torques cap nut: 3N/m
Technical:WKGLP25G Datasheet - 180kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
WK GLP25G
25mm Compression Gland LSF + Locknut for Cable 9-17mm - Grey (10 Pack) |
