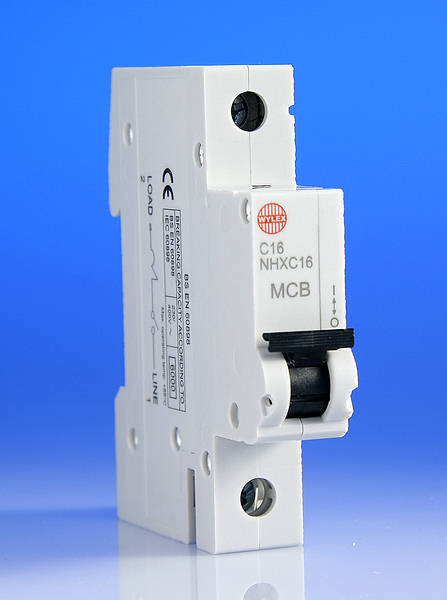

16A Wylex MCB - C Curve
Product Code: WY NHXC16
5013601081946
NHXC16
Loading …
MCB's may differ slightly on new purchases and from existing mcb's
but are all interchangeable
MCB terminal capacity,
Wylex
NHXC MCB ( Type C )
Rated 16 Amps
NHXC MCB ( Type C )
Rated 16 Amps
Type C devices are capable of supplying the majority of inductive and capacitive loads such as
motors, transformers and tungsten or fluorescent lighting
Surges on energisation, for example with discharge lighting, may well reach 25 times the rated current of the device,
but only for very short duration.
Type B devices will often be adequate, but for more specialised circuits,
Type C may be required. The lighting fitting manufacturer’s recommendations should be observed.
- Wylex NHXC MCBs have a short circuit breaking capacity of 6000A (M6).
- The current carrying capacity of the cable should always exceed the current rating of the MCB to prevent damage.
- The operating dolly may be locked in either the ON or OFF position without affecting the ability of the trip mechanism to operate.
- When in the off position, a contact gap of 4 mm is achieved.
- Wylex NHXC MCBs may therefore be used as single pole isolating switches where appropriate.
MCB's may differ slightly on new purchases and from existing mcb's
but are all interchangeable
MCB terminal capacity,
Technical:MCB Selection Data Sheets |
|
