Halogen
HeatersINSTALLATION AND OPERATING INSTRUCTIONS
The following information should be considered when installing Halogen
Infrared Heaters.
Installation should always be carried out by a qualified electrician or
a competent person in accordance with current electrical regulations,
protected by a suitably rated isolator and fuse or type 3 mcb.
- The heaters should always be installed using the mounting brackets
provided to ensure adequate clearance from the wall.
- A minimum air gap of 450mm should always be allowed between the top
of the heater and the ceiling or roof.
- A safety distance of 1mtr should always be left in front of a 1.5KW
heater. Heaters of 3KW and 4.5KW should have a safety distance of at
least 1.5mts and the 6KW heater leave 2mts.
- You also should ensure no flammable material could come into contact
with the heater.
- Heaters should not be installed in areas where hazardous vapours may
be present as defined in BS5345
- It is recommended the heaters be operated with a guard in front of
the lamp and should always be fitted to units mounted below 2.2mtrs.
- The safety guards are only intended to prevent large objects from
directly hitting the lamps. Some applications will necessitate
additional precautionary measures.
- The heater should only be installed in an indoor or weather
protected environment.
The essential element of the heater is the halogen filled quartz linear
lamp with a tungsten element. This operates at about 2200°C and is housed
in a quartz sleeve to filter out the white light and emit short wave
infrared radiant heat.
The lamp operates at full output almost instantly and emits a radiant
energy of 1.2microns.
Quartz heaters are recommended by The Electricity council and Building
Services Research Association for General space heating, Zone heating and
localised spot heating
Before installing this heater, please read all the enclosed
instructions carefully and follow any recommendations regarding
installation and use.
Electrical installation The H range comprises 1, 2 and 3 lamp
Heater Models.
- One and two-lamp heater models are factory fitted with high
temperature silicon rubber flexible cable conforming to BS 6500 having a
temperature rating of 180°C continuous.
- Three-lamp heater models are factory wired according to the order
specification i.e. single phase or 3 phase and neutral. Use high
temperature silicon rubber flexible cable conforming to BS 6500 having a
temperature rating of 180°C continuous.
- Appliances must be earthed.
- It is advised that Type 3 (Type C) MCBs are used. In multi-lamp
single phase installations, in order to prevent the initial inrush
current causing nuisance tripping, MCBs over rated by 60 - 70% may be
required.
The H fitting has been packed with a separate wall mounting bracket and
lamp(s) ready for attachment and fitting to the heater. Please leave the
lamp(s) in transit packing until ready to fit.
Lamp Installation (If required) 1) Undo 4 screws on each end
cover, remove covers and safety guard. 2) Peel protective cover from
reflector. 3) Carefully remove lamp from its box, centre lamp to
brackets with leads pointing upwards. 4) Insert each end of lamp
halfway under each spring clip. 5) Push each end of lamp with equal
thumb pressure fully into clips.
N.B. Any inadvertent finger marks on the tube glass sleeve can be
removed using methylated spirits on a soft cloth
6) Connect lamp leads to connector blocks. Tighten nuts/screws 7)
Re-assemble heater by fitting one-end cover, then guard and second
end-cover. 8) Ensure no wires are trapped under end-covers before
tightening screws. 9) Place heater face down and attach one ‘U’ bracket
to back.
Location
- Heaters should be angled at 30° to 45° from the vertical whether
wall or ceiling mounted.
- There must always be a minimum clearance of 450mm between top of
heater and ceiling.
Wall mounting

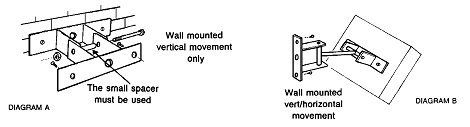

- Decide whether vertical movement only (Diagram A) or
vertical/horizontal movement (Diagram B) is required for correct
positioning of heaters and assemble as shown.
- Avoid mounting heaters on structures liable to vibrate.
- Recommended mounting heights and safety distances should always be
observed.
|
Wall mounting Height(Metres) |
Safety distance from Heater (m) |
Output |
Minimum |
Recommended |
Maximum |
Minimum |
1 or 1.5kW |
2.2 |
2.5 |
3.0 |
1.0 |
2kW |
2.2 |
2.5 |
3.2 |
1.5 |
3kW |
2.2 |
2.5 |
3.5 |
1.5 |
4kW |
2.5 |
3.5 |
4.0 |
1.5 |
4.5kW |
3.0 |
3.5 |
4.5 |
1.5 |
6.0kW |
3.5 |
4.0 |
5.5 |
2.0 |
Commissioning
- Perform Insulation and Earth continuity Tests.
- Switch on heater(s) and confirm that lamp(s) operating.
- Ensure each heater aims its warmth into the target area by adjusting
heater angle(s) as necessary then tighten bracket bolts when
satisfactory coverage is achieved.
- Check that lamp(s) remain in a horizontal plane for all angles of
heater(s).
- Lamps must only be operated within 5° of the horizontal plane.
- The user/customer should be made aware of all aspects of operation
and safety and strongly advised to retain these instructions for
reference.
- In unoccupied premises it is recommended that the heating system is
switched off and isolated from the electrical supply.
Maintenance Halogen heaters contain no moving parts and
therefore very little maintenance is required other than to ensure that
there is no excessive build?up of dust/dirt on the reflectors or lamps as
this can cause overheating and premature lamp failure. Depending on siting
conditions a heater should be regularly inspected, but at least once per
year.
Before any maintenance work is carried out
- Allow heater case/lamp to cool to avoid injury.
- Always isolate appliance(s) from electrical power supply.
- Re?read instructions prior to lamp replacement.
WARRANTY. Your BN Thermic product is guaranteed for one year
from date of purchase. We will repair or replace at our discretion any
part found to be defective. We cannot assume any consequential liability.
This guarantee is in no way prejudices your rights under common law and is
offered as an addition to consumer liability rights.
|
