CXL24
CXL24
Performance
Outputs Available (watts) 650, 1350
Maximum Loading (kW) 2000
Input Rating 3.4
Charge Acceptance 23.8

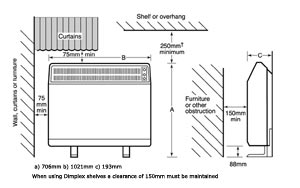

Dimensions
Height (mm) 706
Width (mm) 1021
Depth (mm) 193
Weight (incl. bricks) (kg) 146
Packed Weight (kg) 29.5
Controls
INPUT CHARGE CONTROL: This control determines the amount of charge taken in by by the heater, which in turn determines the temperature of the heater`s storage core. The higher the charge, the higher the core temperature.
ROOM TEMPERATURE BOOST: This is dependant upon the amount of charge taken in by the heater. This control allows extra warmth to be released by means of a damper that is opend to allow a greater air flow through the heater`s core.
CONVECTOR: The convector may be used independently of the storage heater to, for example, top of the current heat level on very cold days.
THMERMOSTAT: Adjustable rotary dial allowing temperature ranges from 5°C to 35°C.
Storage Core
High density bonded magnetite bricks
Insulation
Front and rear: Microporous Silica
Top and ends: Resin-free mineral wool
Base: Calcium Silicate slab
Input Charge Controller
23.8
Thermal Cut Out
Bi-metal, manual reset
Number of Storage Bricks
16 (8 packs)

Damper Control (Boost)
Bi-metallic strip. Selection variable from early to late or zero boost.

Direct Acting Heater
Convector
Colour/Finish
Front and sides: Willow white
Rear and wall spacer: Birch grey

Cable Length
No cable fitted

IP Rating
IPX2

Element
Number of Elements: 4
Storage Elements: 850W Incoloy sheathed
Product Description
The CXL Combination Storage Heater is the largest of the range with an input rating of 3.4kW.

Key Features
Provides a continuous source of warmth, primarily from cheap off peak electricity.
Convector elements give completely silent top up heating.
Convector thermostat can be set to maintain constant room temperatures and automatically switch on as necessary.
Storage heater controls and components based on the market leading XL range includes reliable manual input control and room temperature boost to make optimum use of the heat stored.
Conveniently positioned convector controls on the front panel.
Lower convector loadings selectable by installer.
For stability and safety heater must be supported on the feet provided and securely fixed to a wall.



Standard Warranty
12 months


Supply Connection
Located at front right hand end of base -accessible by removal of front panel assembly. Hidden cable support straps at rear of heater allow neat supply cable connection from either side of heater.


Construction Details
Galvanised finish sheet steel base, mounted on steel feet, supporting double skin front and outer panels. One piece front panel/grille assembly and front inner skin remove for brick loading.


Assembly Information
Remove front panel assembly then front inner skin. Remove internal packing containing elements, position rear layer of bricks, heating elements and front layer of bricks.
