Libra Wirefree Bell Push & Plug-in Chime

Instructions for Model No D349


Pack Contents
Bell Push
Plug-in Door Chime
Adhesive pad and screws for mounting the Bell Push
You will need
A small flathead screwdriver
A Philips crosshead screwdriver

Installation
Please note: positioning the Bell Push or Door Chime on or near metal structures or reinforced PVCµ doors or door frames may reduce the
transmission range.

Bell Push
You can attach the Bell Push directly on to your door frame using the adhesive pad making sure the surface on which it is to be placed is clean and dry.

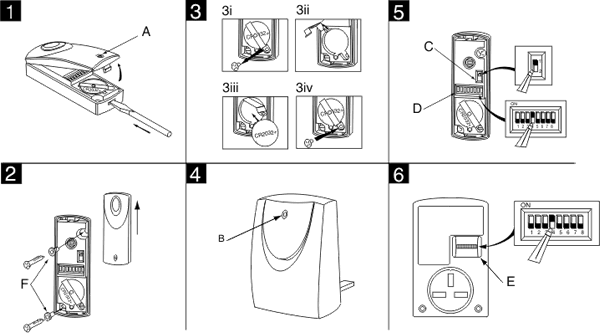

Alternatively open the front cover using a flathead screwdriver (Diagram 1) and mount using the screws provided (See Diagram 2), ensuring that the rubber grommets (F in Diagram 2) remain in place.

To ensure that weather proofing is maintained, always mount the Bell Push in the upright position shown in Diagram 2 and replace the front cover securely.
When the Bell Push button is pressed, the Confidence Light (A on Diagram 1) will illuminate to reassure the caller that the Bell Push is working. When it does not illuminate the battery needs replacing. Use a CR2032 Lithium Coin Cell battery, inserting it as shown in Diagram 3.

Door Chime
Plug into any 220-240V indoor socket. The Power On Light (B in Diagram 4) will illuminate as an indication that the Chime is being powered.

Tune Selection
Your Bell Push can be set up to make the Door Chime play a 2 note or 4 note sequence.
The Tune Selector in the Bell Push (C in Diagram 5) is factory set to position 1 making the Door Chime play the standard 2 note sequence. If you would prefer the 4 note sequence just move the Tune Selector to position 2.
You can change the note sequence at any time by using the procedure above.


System Codes - VITAL INFORMATION
Your Libra Wirefree Bell Push and Door Chime use a coded signal to ensure there is no interference to or from a neighbouring Friedland wirefree product.
Your Bell Push and Door Chime need to have identical codes so that they can recognise each other.
In the unlikely event that your Door Chime rings without your Bell Push being used, it means another Friedland wirefree product, either your own or a neighbour's, is using the same code.You should change your code by following this procedure:-
1. Remove the front cover from the Bell Push. Using a pen tip alter one or more of the 8 switches (D in Diagram 5) to the ON position.
2. On the back of the Chime you will also find 8 switches (E in Diagram 6). Again using
a pen tip alter the switches 1 to 8 to correspond exactly to the switches you have
set in the ON position in the Bell Push.

Example: if you set switch 1 in your Bell Push to the ON position, then you must set
switch 1 in your Door Chime to the ON position.

Other Libra Products
All Friedland Libra products are compatible and will activate each other if the system codes are set to be the same, as described above. For example, if you install an additional Libra Bell Push for your back door, just ensure that you adjust the system code to be the same as your other Bell Push and your Door Chime.

Movement Activated Door Chime
Friedland Libra chimes can also be activated by a Friedland Spectra 433MHz PIR Movement Detector/ Transmitter. All you have to do is make sure that the PIR and Door Chime have the same system codes



Caradon Friedland guarantees this product for
3 years from the of purchase.
This does not effect your statuory rights
If you require further information
about Libra products,
call the Friedland helpline on
0161 432 0277 ext 888.



Trouble shooting

Problem Possible Cause Solution
Chime not
sounding 		Batteries may not be inserted
correctly		 Check all batteries have been
inserted correctly
  Chime may be positioned out
of range of the Extender		 Move your Chime closer to the
Extender
  A metallic object may be
blocking the signal from the
Extender		 Experiment with the location of your
Chime to see if you can position it in
a more suitable place
  The battery in the Extender
may need replacing		 Press the Bell Push. If Confidence
Light (D) Diagram 1 does not
illuminate, replace the Extender battery
  Your Extender and Chime may
have different system codes		 Check the system codes in both your
Chime and Extender
  Your volume control may be
set to the mute setting		 Set volume control to position 1 or 2

The Extender may not be
wired correctly		 Press the Bell Push. If Confidence Light
(D Diagram 1),does not illuminate,
check the extender wiring. If you are
extending an existing datebattery powered
Chime, swap the two wires over at the
transmitter terminals
False
activation
of the Chime		 Another of your own or a
neighbour's wirefree product
may be using the same code		 Change the system codes in both your
Extender and Chime
