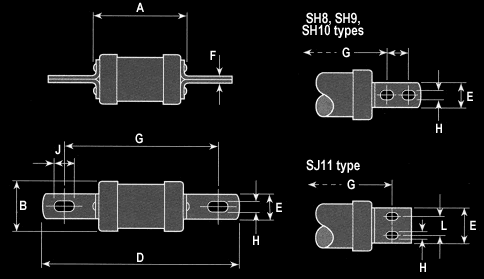

Fuselink
Type
|
A
max.
mm
|
B
max.
mm
|
D
max.
mm
|
E
mm
|
F
mm
|
G
nom.
mm
|
H
mm
|
J
mm
|
L
mm
|
|
SE4M
|
57
|
26
|
116
|
13
|
1.6
|
97
|
7.2
|
11
|
-
|
|
SF4M
|
58
|
26
|
136
|
16
|
3.2
|
111
|
8.7
|
16
|
-
|
|
SF5
|
48
|
27
|
134
|
16
|
3.2
|
111
|
9
|
12.5
|
-
|
|
SF5M
|
48
|
30
|
137
|
19
|
3.2
|
111
|
9
|
12.5
|
-
|
|
SF6
|
48
|
30
|
137
|
19
|
3.2
|
111
|
9
|
12.5
|
-
|
|
SF6M
|
48
|
40
|
137
|
19
|
3.2
|
111
|
9
|
12.5
|
-
|
|
SF7
|
48
|
40
|
137
|
19
|
3.2
|
111
|
9
|
12.5
|
-
|
|
SF7M
|
51
|
40
|
138
|
25
|
5.0
|
111
|
9
|
12.5
|
-
|
|
SG7
|
48
|
40
|
159
|
19
|
3.2
|
133
|
10.5
|
14
|
-
|
|
SF8
|
51
|
40
|
138
|
25
|
5.0
|
111
|
9
|
12.5
|
-
|
|
SH8
|
51
|
40
|
211
|
25
|
5.0
|
133
|
10.5
|
14
|
25.4
|
|
SH9
450-500
|
59
|
53
|
212
|
25
|
6.3
|
133
|
10.5
|
14
|
25.4
|
|
SH9
560-630
|
59
|
63
|
212
|
25
|
6.3
|
133
|
10.5
|
14
|
25.4
|
|
SH10
|
84
|
82
|
210
|
26
|
10
|
133
|
10.3
|
16
|
25.4
|
|
SJ11
|
83
|
100
|
198
|
63.5
|
9.5
|
149
|
14.3
|
19
|
32
|
|
