Series 2 - Overview
- 136Kb
|
Horstmann's CentaurPlus range of single and two
channel central heating programmers offers leading
edge microprocessor technology at an affordable
price.
With CentaurPlus, up to three ON and three OFF
commands can be programmed for each day.
The two channel models are perfect for accurate
pre-programmed control of central heating and
hot water.
The single channel versions are ideal for combi
boilers.
Ideal for new heating systems, CentaurPlus can
also be used for upgrading installations.

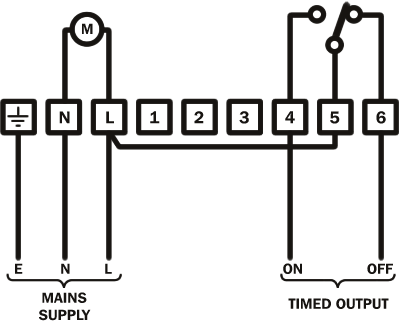

Thanks to its use of the industry standard,
six terminal wall plate, CentaurPlus can be fitted
as a straightforward plug in replacement for many
other manufacturers' models.
|
|
Inexpensive and easy
to install
|
Three ON and three OFF periods
each day
|
|
Simple to use
|
Hot water boost and central
heating advance
|
|
Easy plug in replacement
of any programmers that
use a 'standard' six terminal wall plate
|
Mains powered with
battery back-up
|
|
Single and two channel models
with 24 hour and
7 day options
|
Programme options:
ON 24hrs, OFF,
All Day or Auto
|
| CENTAURPLUS
- C17, C21 & C27 |
| Contact rating |
3 (1) Amps 230V AC |
| Contact type |
Micro-disconnection changeover |
| Voltage free |
(C11 and C17 only) |
| Supply |
230V AC 50Hz only |
| Operating temperature range |
0ºC to +40ºC |
| Battery life |
10 months continuous operation (minimum) |
| Case material |
Thermoplastic, flame retardent |
| Dimensions |
84mm x 150mm x 29mm |
| Display |
Liquid crystal. Day of week indication (C17 and
C27) |
| Clock |
12 hour AM/PM |
| Displayed time adjustments |
1 minute steps |
| Switched time adjustments |
10 minute steps |
| Programme selection |
Auto, On all day, On 24 hours, OFF |
| Operating periods per day |
C11 and C17 - three per day. C21 and C27 - three
per day for CH and three per day for HW.
Separate programmes possible for each day of the
week (C17 and C27) |
| Override |
C11 and C17 - one hour boost, one hour extension
to On period, instant advance.
C21, and C27 - one hour boost (HW only), one hour
extension to On period (HW only), instant advance
(CH only). |
| Mounting |
Industry standard six terminal plug in wall plate. |
|
|
|
CentaurPlus C11 - ( To Order Only P.O.A
)
Simple, low cost 24 hour version of the C17.
CentaurPlus C17
Single circuit, 7 day time control suitable for
combi boiler applications, an extra heating zone,
or the pump on a solid fuel boiler.
CentaurPlus C21
Simple, low cost 24 hour version of the C27.
CentaurPlus C27
Two channel 7 day programmer allowing independent
time control
of central heating and hot water.
CentaurPlus C27
Two channel 7 day programmer allowing independent
time control
of central heating and
hot water.
|
|
|
|
| |
|
