4" Window / Wall Fans



4" Wall Fans

~

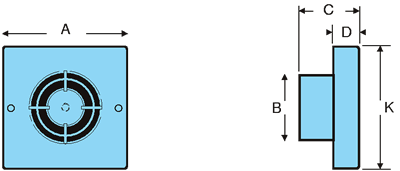

4" Wall Fan dimensions (mm)
Fan
A
B
C
D
K
Sound Level
RD G510NT
RD G510T
RD G510PC
156
98
77
28
156
41 db
BG XF100H
BG XF100PIR
163
98
75
30
163



Fan
Max Duct Length
All Above
2 - 3 Mts




4" Window Fans

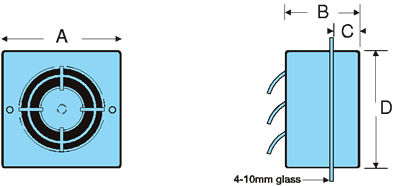

4" Windowl Fan dimensions (mm)
Fan
A
B
C
D
Sound Level
BG WF100T
BG WF100H
163
90
30
163
41 db



4" Fan Output
m3 / hr @ Free discharge
All 4" Fans
85
