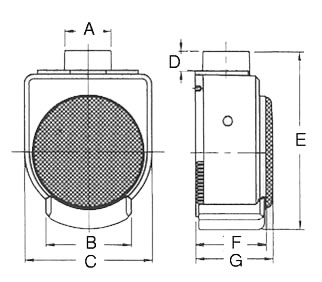

Dimensions
(mm) for CK range of Fans
|
|
Fan
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
Sound Level
|
|
CK40F
|
98
|
179
|
266
|
42
|
370
|
140
|
162
|
55 db
|
|
CK60F
|
116.5
|
-
|
293.5
|
42
|
362
|
145
|
174
|
59 db
|
|
Typical
Kitchen Fan Output at set distances using Flexible
Pvc Ducting
|
|
m3
/ hr @
|
|
Fan
|
Duct dia
( mm )
|
0 Mts
|
3 Mts
|
5 Mts
|
8 Mts
|
10 Mts
|
Max Duct Length
|
|
CK40F
|
100
|
375
|
250
|
216
|
165
|
132
|
11
|
|
CK60F
|
125
|
625
|
404
|
340
|
244
|
180
|
11
|
|
Typical
Kitchen Fan Output at set distances using Pvc Soil
Pipe
|
|
m3
/ hr @
|
|
Fan
|
Duct dia
( mm )
|
0 Mts
|
3 Mts
|
5 Mts
|
8 Mts
|
10 Mts
|
Max Duct Length
|
|
CK40F
|
100
|
375
|
312
|
270
|
207
|
165
|
13
|
|
CK60F
|
125
|
625
|
505
|
425
|
305
|
225
|
13
|
