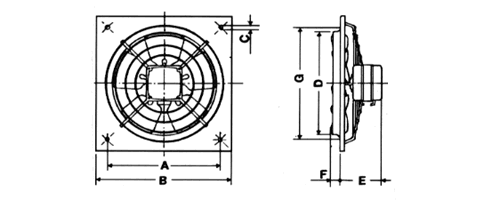

HXM Fan dimensions
(mm)
|
|
Fan
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
Sound Level |
| HXM
- 200 |
222
|
266
|
X9
|
205
|
X85.5
|
19
|
211
|
36
|
| HXM
- 250 |
275.5
|
333
|
X9
|
255
|
X92.5
|
31
|
261
|
42
|
| HXM
- 300 |
336.5
|
400
|
10.5
|
305
|
X92.5
|
35.5
|
311
|
48
|
| HXM
- 350 |
390
|
465
|
10.5
|
361
|
105.5
|
34.5
|
371
|
53
|
| HXM
- 400 |
420
|
500
|
10
|
400
|
141
|
52
|
414
|
57
|
|
HXM Fan Output
|
|
m3
/ hr @ Free discharge
|
|
HXM
- 200
|
HXM - 250
|
HXM - 300
|
HXM - 350
|
HXM - 400
|
|
500
|
900
|
1400
|
1800
|
3000
|
|
