Soler & Palau - TD - Mixed Flow Duct Fans

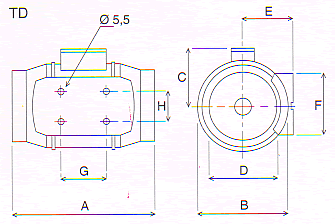

TD Fan dimensions (mm)
Fan
A
B
C
D
E
F
G
H
TD - 160
215
132
105
100
X70
145
36
131
TD - 250
303
176
115
X97
100
X90
80
X60
TD - 350
258
176
115
123
100
X90
80
X60

TD Fan ----With Timer
( single speed )
TD Fan ----Without Timer
( two speed )
Fan
Sound Level
Fan
Sound Level
TD - 160T
18 db
TD - 160
14 db
18 db
TD - 250T
24 db
TD - 250
15 db
24 db
TD - 350T
25 db
TD - 350
22 db
25 db


Expected output when using with Ducting

Typical Mixed Flow Fan Output at set distances using Flexible Pvc Ducting
m3 / hr @
Fan
Duct dia
( mm )
0 Mts
2 Mts
3 Mts
4 Mts
5 Mts
Max Duct Length
TD160
100
160
118
113
108
104
6
TD250
100
250
163
145
126
108
6
TD350
125
350
260
249
238
228
6
-
Typical Mixed Flow Fan Output at set distances using Pvc Soil Pipe
m3 / hr @
Fan
Duct dia
( mm )
0 Mts
2 Mts
3 Mts
4 Mts
5 Mts
Max Duct Length
TD160
100
160
148
142
136
130
9
TD250
100
250
204
181
158
135
7.5
TD350
125
350
324
311
298
285
9
