EZTAG3 Pro Access Control Kit Silver - IP65 c/w Tags + Mushroom Exit Button
Product Code: EZ TAG3PROM
5060654460792
EZT3KM

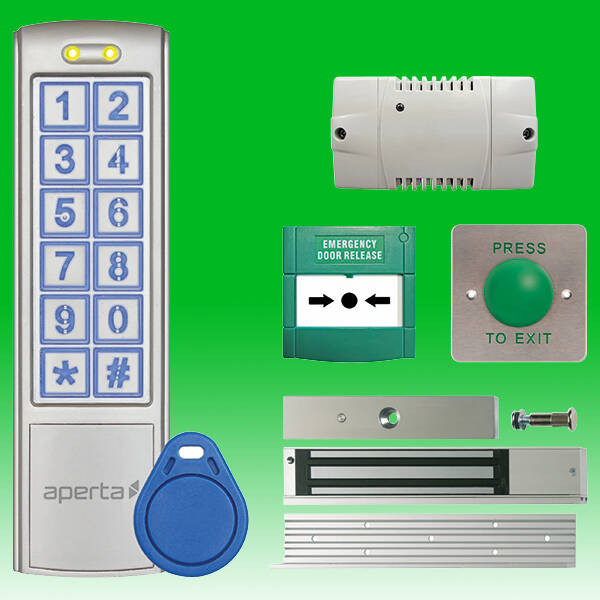

CONTENTS
Weatherproof tough external keypad with proximity function
250KG Magnetic lock Release
Power supply
Mushroom exit button
Emergency exit button
10 x Proximity keys
Weight: 1.86kg
EZTAG3 Pro - Weatherproof Access Control
Keypad Silver with Proximity Function - IP65
c/w Mag Lock & Proximity Tags
with Mushroom Exit Button
Keypad Silver with Proximity Function - IP65
c/w Mag Lock & Proximity Tags
with Mushroom Exit Button
Everything apart from the cable is included to meet the operational and legal requirements for securing a entrance against un-authorised access whilst allowing swift access for authorized users .
OPERATION
Users approach the keypad and enter a four digit code or hold a personal proximity tag
within a few inches to activate one of the EZ-TAGs on board relays.
This relay in turn is used to carry power from a 12vdc power supply to an appropriate door release.
Higher levels of security can be obtained by requiring end users
to enter both a code and present a tag for authorised entry.
EZ-TAG can also be used as a door bell for visitors.
To exit the building users simply press the clearly marked “ mushroom exit button “ which release the magnetic lock . In case of an emergency which has created power failure an emergency exit button , included in the system , will cut the power to the lock release until reset allowing permanent easy escape .
PROGRAMMING
Programming the system is kept as simple as possible, all functions including
addition and removal of tags is carried out at the keypad itself, the unit is totally
self contained, no PC or laptop required.
- Easy install
- Tough Construction
- Simple self contained programming
- Combined keypad / reader / controller
- Suitable for 1 to 10,000 key tag holders
- 20 separate user groups
- 10 x Proximity Keys Tags - Supplied
- Emergency door open code function
- Weather/ dust proof robust construction
- Twin relay outputs
- Door bell function.
- Supplied with 12v 2amp Power Supply
- Electro Magnetic Lock - Single door - IP20
- Holding force - 250KG
- " LZ " bracket is Supplied
An " LZ " bracket is required on most inward opening doors
No bracket is normally required if the door opens outward .... quite rare - Voltage 12VDC
- Current 420ma
- Keypad IP65 rated.
- Suitable for use with virtually any lock release.
CONTENTS
Weatherproof tough external keypad with proximity function
250KG Magnetic lock Release
Power supply
Mushroom exit button
Emergency exit button
10 x Proximity keys
Weight: 1.86kg
Technical:EZ-TAG3 Instructions 425kb pdf EZ-TAG3PRO Quick Start 228kb pdf IP Rating ChartWarranty:ESP |
|
