10A 30mA RCBO - Fusebox 6kA (Type A) B Curve (Compact) - Bi-directional
Product Code: FB RTAMB10BD
5060523523566
RTAMB10BD
Loading …

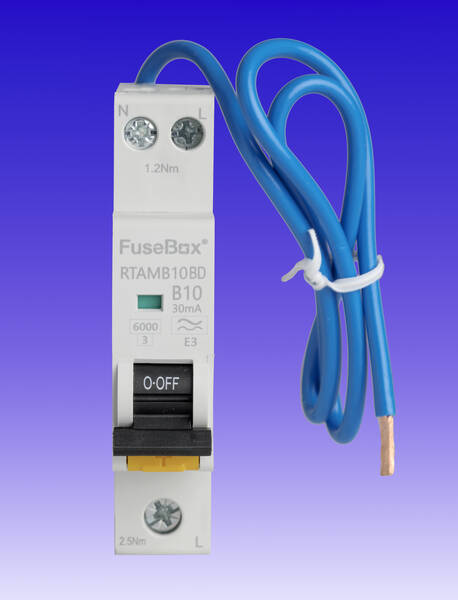

6A shown
FuseBox
10 Amp 30mA RCBO - Type A
B Curve - Bi-directional
10 Amp 30mA RCBO - Type A
B Curve - Bi-directional
Compact Bi-directional RCBO with switched LINE and NEUTRAL.
Used for the protection against overload, short circuit and earth leakage in solar applications, or where current flows in both directions. Type A for AC and pulsating DC sensitivity with a short circuit capacity of 6kA.
Compact in size, increasing working space within a FuseBox consumer unit making installation,
connection and testing easier and quicker.
Flying Neutral cable can be cut to suit but should be terminated.
Used for the protection against overload, short circuit and earth leakage in solar applications, or where current flows in both directions. Type A for AC and pulsating DC sensitivity with a short circuit capacity of 6kA.
Compact in size, increasing working space within a FuseBox consumer unit making installation,
connection and testing easier and quicker.
Flying Neutral cable can be cut to suit but should be terminated.
- Rating: 10A
- Tripping curve: B
- Number of poles: 1P + N (switched neutral)
- Residual operating current: 30mA
- Type: A
- Rated short circuit capacity: 6kA
- Maximum cable capacity: 16mm²
- Complies with IEC 61009-1 & IEC 61009-2-2
Technical:Compact BD RCBO Datasheet - 250kb pdf FuseBox Brochure - 7mb pdf |
|
