240V GU10 LED Fire Rated Downlight - White New
Product Code: FR CDW
5055832976783
VFCFW
Loading …
Height: 104mm.
Diameter: 85mm.
Cut-out: 65mm.
Recessed Depth: 80mm.
Minimum void: 154mm.
Fire Rated (90 Minutes) Downlight
GU10 LED Downlights
GU10 LED Downlights
to meet the stringent legal requirements of the Building Regulations Parts B&E.
The recent addition of Part E to the Building Regulations has presented the House Builder with
the problem of how to maintain acoustic integrity yet allow the installation of downlighters,
which by their very nature, must puncture the ceiling lining, which affords acoustic integrity.
The design provides a sealed barrier between the underside of the ceiling and its associated void area.
This clever design also incorporates intumescent materials which ensure the luminaire can withstand the onslaught of fire in accordance with the requirements of Part B of the Building regulations.
Thus from one simple to install luminaire the both regulations can be complied with, negating the need for separate fire hoods or a segregated ceiling void as requested by The Standard Robust Details.
- Fast-fix installation
- Push-fit terminals
- Loop in/ loop out
- GU10 LED
- Dimmable Dependant on lamp
- Lamp Included - No
- Input voltage - 230V 50Hz
- Construction - Pressed Steel
- Class Class I
- IP rating - IP20
- Warranty 3 Years
Height: 104mm.
Diameter: 85mm.
Cut-out: 65mm.
Recessed Depth: 80mm.
Minimum void: 154mm.

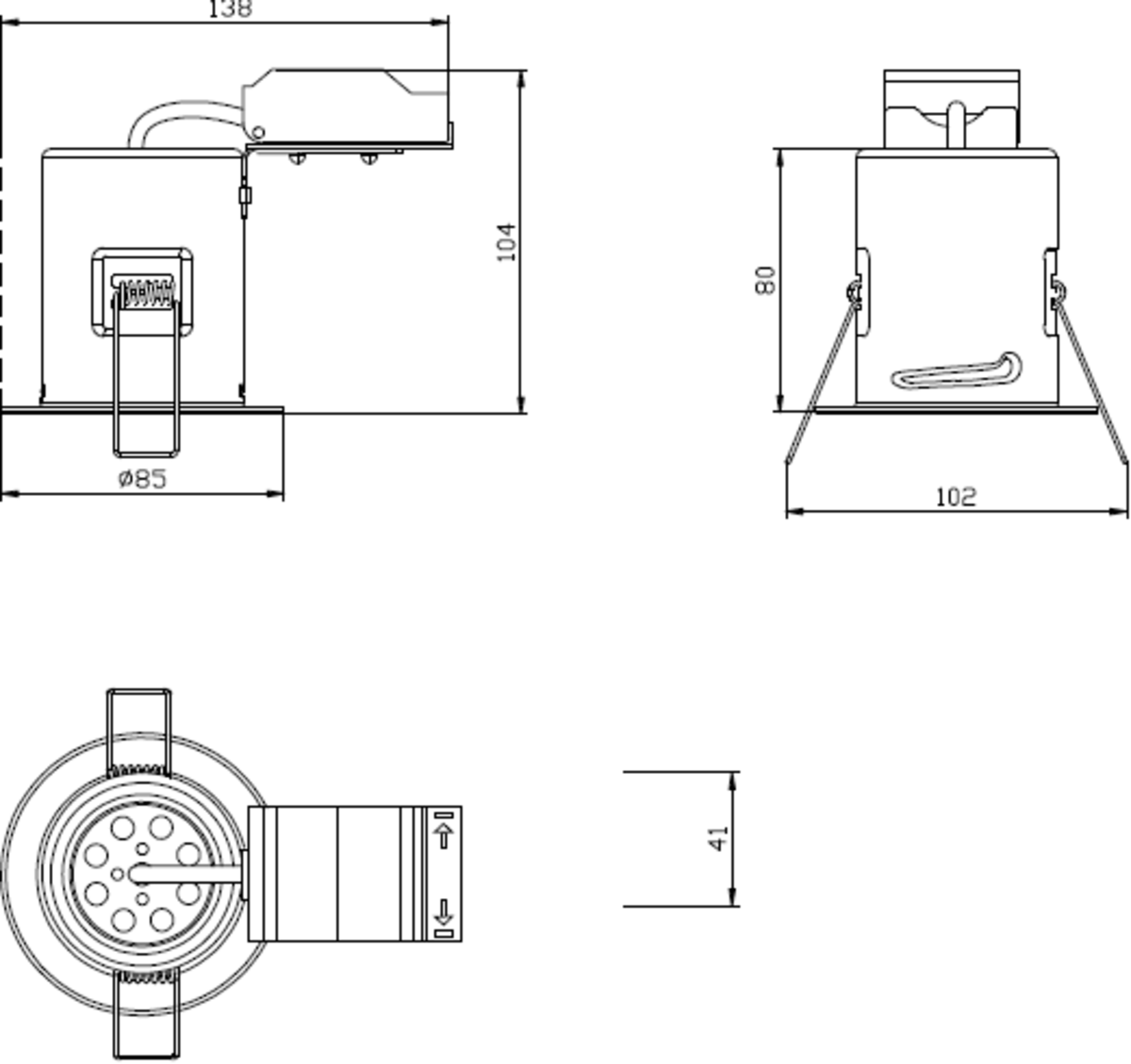

Technical:FRCDW Datasheet FRCDW Instructions FRCDW Line Drawing IP Rating Chart |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
FR CDW
240V GU10 LED Fire Rated Downlight - White New |
4W 120° GU10 WiFi Lamp RGB+ W
Loading …
LEDlite
4W Smart Wi-Fi
White + RGB LED GU10 Lamps
4W Smart Wi-Fi
White + RGB LED GU10 Lamps
NEW WiFi GU10 Smart Lamps, compatible with Alexa and
Google Home,
RGB+White colour changing mood light, controlled by smart devices.
Group lamps, Timer and Schedule functions available.
Lamp colours can be dimmed or brighten to create a range of moods.
Applications: anywhere in your home, such as bedroom,
living room, kitchen, hall, porch, pantry, wall light, stairs.
Google Home,
RGB+White colour changing mood light, controlled by smart devices.
Group lamps, Timer and Schedule functions available.
Lamp colours can be dimmed or brighten to create a range of moods.
Applications: anywhere in your home, such as bedroom,
living room, kitchen, hall, porch, pantry, wall light, stairs.
- No expensive gateway hub unit, no expensive cloud costs, or subscriptions.
- Control in the home or outside via wall switch, , voice commands or APP.
Technical:LTGU4WFBT Datasheet - 820kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
4.5w 35° GU10 SMD LED Glass Lamps
Loading …
Height - 56mm
Dia - 50mm
4.5w 35° GU10 SMD LED Glass Lamps
Non Dimmable
Special Offer
Non Dimmable
Special Offer
Energy Saving LED Glass GU10
Ideal for retrofit
Not suitable for use in fittings where the lamp is exposed to the elements
if used in enclosed fittings - fittings must be able to dissipate the heat
Ideal for retrofit
Not suitable for use in fittings where the lamp is exposed to the elements
if used in enclosed fittings - fittings must be able to dissipate the heat
Height - 56mm
Dia - 50mm
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
4.5w 35° GU10 SMD LED Glass Lamp - Cool White Special Offer |
|
|
4.5w 35° GU10 SMD LED Glass Lamp - Warm White Special Offer |
LEDlite 7W GU10 MCOB LED Lamp 40° - Dimmable
Loading …
LEDlite
7W GU10 MCOB LED Lamp 40° - Dimmable
7W GU10 MCOB LED Lamp 40° - Dimmable
The new 7W dimmable MCOB LED Lamps are exactly the same size as traditional GU10 halogen lamps
so you can directly replace your older, inefficient lamps.
Suitable for indoor or outdoor use in spotlights or downlighters.
Producing a super bright light, in warm white, neutral white and daylight these are the ultimate energy saving lamps.
Creating negligible heat, they can last up to 15 times longer than halogen equivalents. LED lamps use a fraction of the energy cost of regular halogen lamps and will more than pay for themselves.
so you can directly replace your older, inefficient lamps.
Suitable for indoor or outdoor use in spotlights or downlighters.
Producing a super bright light, in warm white, neutral white and daylight these are the ultimate energy saving lamps.
Creating negligible heat, they can last up to 15 times longer than halogen equivalents. LED lamps use a fraction of the energy cost of regular halogen lamps and will more than pay for themselves.
Technical:LTMCOBD7 Datasheet - 520kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
LEDlite GU10 SMD LED Ceramic High Output Lamps - Non Dimmable
Loading …
LEDlite
Non Dimmable
5 Watt 110° GU10 SMD LED Ceramic High Output Lamps
Non Dimmable
5 Watt 110° GU10 SMD LED Ceramic High Output Lamps
a standard halogen GU10 lamp with an 85% saving of energy.
With a newly designed unique ceramic body, creating negligible heat,
with the same size as a standard halogen lamp, the spread of light and look of this innovative lamp
will be an excellent replacement for your old halogen lamps lasting many times longer!
Producing a super bright daylight white light
Using 5w of power, these are the ultimate energy saving lamp.
These high performance SMD LED's are of outstanding performance and quality
and not to be confused with cheaper budget LED's on sale!
Technical:Datasheet 1.2Mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
LEDlite GU10 SMD LED Lamps
Loading …
See product for Accessories
LEDlite
Dimmable
5 Watt 110° GU10 SMD LED Lamps
Dimmable
5 Watt 110° GU10 SMD LED Lamps
a standard halogen GU10 lamp with an 85% saving of energy.
With a newly designed unique ceramic body, creating negligible heat,
with the same size as a standard halogen lamp, the spread of light and look of this innovative lamp
will be an excellent replacement for your old halogen lamps lasting many times longer!
Producing a super bright light, in daylight white.
Using 5w of power, these are the ultimate energy saving lamp.
These high performance SMD LED's are of outstanding performance and quality
and not to be confused with cheaper budget LED's on sale!
Dimmable (most trailing edge dimmers)
| See product for Accessories |
Technical:Datasheet 1.2Mb pdf Dimmer Mode Change Instructions 80kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
5 Watt GU10 MCOB LED Lamps
Loading …
LEDlite
5 Watt GU10 MCOB LED Lamp
Non Dimmable
5 Watt GU10 MCOB LED Lamp
Non Dimmable
With a specially designed aluminium reflector, to mimic a halogen GU10 lamp and lens to maximize light distribution
This lamp boasts a light output 30% higher than an average 50 watt GU10 halogen lamp.
With a power output of only 5 watts this range constitutes a 90% saving of electricity
with a life expectancy of more than ten times that of the halogen.
The lamp has a 40 degree standard beam angle
Available in three different colours: warm white; Neutral White and daylight.
Technical:Data Sheet 1.2Mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
5 Watt GU10 MCOB LED Lamp 40° - Daylight Special Offer |
|
|
5 Watt GU10 MCOB LED Lamp 40° - Neutral White Special Offer |
|
|
5 Watt GU10 MCOB LED Lamp 40° - Warm White Special Offer |
AURORA 5W 38° GU10 LED Lamp
Loading …
EN DGU55CW
EN DGU55DL
EN DGU55WW
AURORA
5W 38° GU10 LED Dimmable Lamp
5W 38° GU10 LED Dimmable Lamp
GU10 lamp suitable for a range of applications. The 38 degree beam angle is perfect for focused spotlighting.
Features
Aluminium heat sink to improve reliability
Sparkling, low glare multifaceted lens
Dimmable GU10 lamp
2 Year warranty
Features
Aluminium heat sink to improve reliability
Sparkling, low glare multifaceted lens
Dimmable GU10 lamp
2 Year warranty
Technical:Datasheet - 860kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
AURORA 5w 60° GU10 LED Lamp - PRO Range
Loading …
AU DGU5CW
AU DGU5DL
AU DGU5WW
AURORA
LED Dimmable 5W GU10 Lamps
PRO Range
LED Dimmable 5W GU10 Lamps
PRO Range
Achieve significant energy savings and light output with ICE™ lamp 5W GU10 lamps.
ThermoTec™ heat management technology and EnFiniti™ 60° beam angle lenses
Excellent efficacy - Up to 108lm/W delivers more light using less energy
ThermoTec™ technology utilises a combination of highly efficient LED light source, aluminium heat
sinking and thermoplastic material for longer life and consistent performanceEnFiniti™ edge-to-edge multifaceted polycarbonate lens creates low glare and halogen like appearance
PRO Range - 5 year warranty.
ThermoTec™ heat management technology and EnFiniti™ 60° beam angle lenses
Excellent efficacy - Up to 108lm/W delivers more light using less energy
ThermoTec™ technology utilises a combination of highly efficient LED light source, aluminium heat
sinking and thermoplastic material for longer life and consistent performanceEnFiniti™ edge-to-edge multifaceted polycarbonate lens creates low glare and halogen like appearance
PRO Range - 5 year warranty.
Technical:Datasheet - 1mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
5w 60° GU10 LED Dimmable Pro Lamp - Cool White --- Price Drop --- |
|
5w 60° GU10 LED Dimmable Pro Lamp - Daylight --- Price Drop --- |
|
5w 60° GU10 LED Dimmable Pro Lamp - Warm White --- Price Drop --- |
LEDlite 4 Watt GU10 High Power LED Lamp 240v Colour
Loading …
LT SMD4B
LT SMD4G
LT SMD4R
LEDlite
4 Watt GU10 High Power LED Lamp 240v
Colour
4 Watt GU10 High Power LED Lamp 240v
Colour
The 4W SMD Coloured GU10 LED Lamps are exactly the same size
as traditional GU10 halogen lamps, so you can directly replace your older, inefficient lamps.
These high performance LED's are of outstanding performance and quality
and not to be confused with cheaper budget leds on sale!
as traditional GU10 halogen lamps, so you can directly replace your older, inefficient lamps.
These high performance LED's are of outstanding performance and quality
and not to be confused with cheaper budget leds on sale!
Technical:SMD4 LED Data Sheet 1.1Mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Accessories
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
