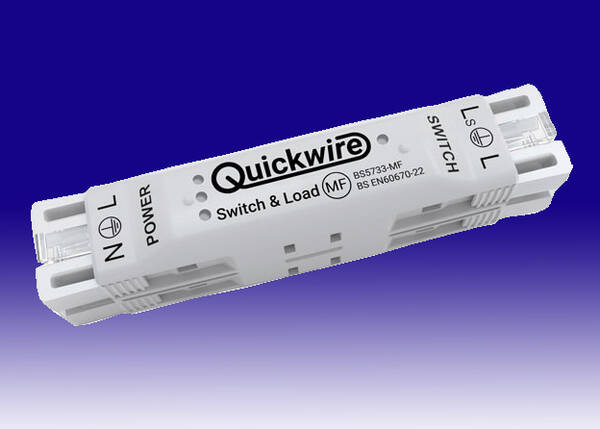

Quickwire Switch & Load Junction Box - Maintenance Free
Product Code: QW SL34
5060546250005
QSL34
Loading …
23mm x 31mm x 84mm (wired)
Conductor Size:
1.0mm² - 1.5mm²
Twin & Earth (CPC) Solid cores
Class 1 (conductors)
Note:
This product is designed for lighting installations only
Quickwire
Switch & Load Junction Box
Maintenance Free
Switch & Load Junction Box
Maintenance Free
A revolutionary new pre-wired and maintenance free junction box

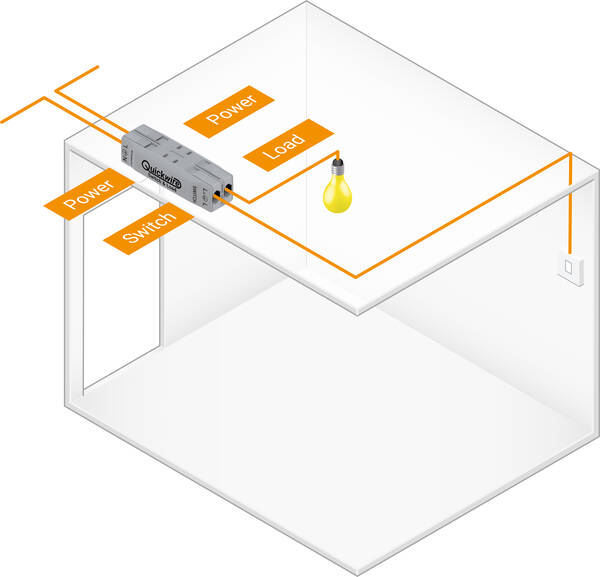

Use a single Quickwire Switch & Load for a lighting circuit with a single luminaire - connect your power,
load and switch by pushing your cable into the clearly labelled cable inlets.
The remaining power inlet can then be used to feed another lighting circuit if required.
A Quickwire junction box is remarkably simple - there are no screws, covers, clips or clamps.

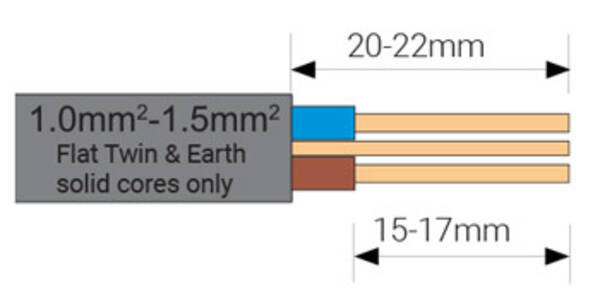

All you have to do is strip your cable before pushing it into the cable entry points.

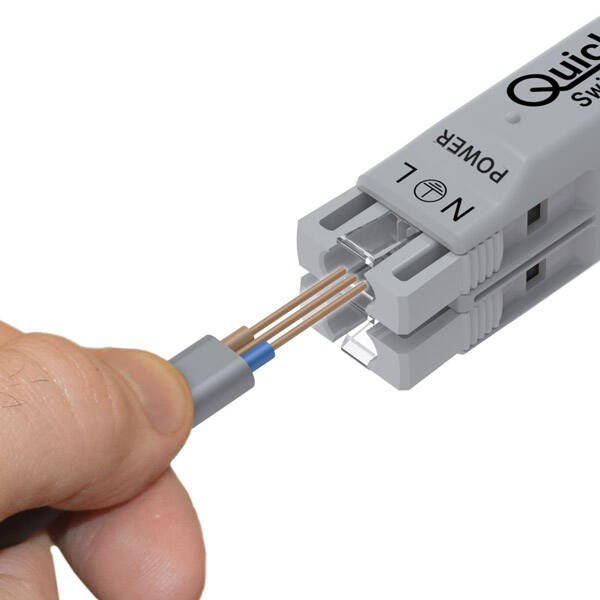

As you push the cable, the cores are guided into their correct terminals before a clever
(patented) shuttle design clamps down on the cable, completing the connection.
Rating: 16A, 250V a.c.
IP Rating: IP30
BS EN60670-22, BS 5733-MF
Use a single Quickwire Switch & Load for a lighting circuit with a single luminaire - connect your power,
load and switch by pushing your cable into the clearly labelled cable inlets.
The remaining power inlet can then be used to feed another lighting circuit if required.
A Quickwire junction box is remarkably simple - there are no screws, covers, clips or clamps.
All you have to do is strip your cable before pushing it into the cable entry points.
As you push the cable, the cores are guided into their correct terminals before a clever
(patented) shuttle design clamps down on the cable, completing the connection.
Rating: 16A, 250V a.c.
IP Rating: IP30
BS EN60670-22, BS 5733-MF
- No need to sleeve earth (another great time saver)
- Maintenance free
- Fits through a 32mm hole (it’s probably the smallest junction box out there and can fit through a downlighter hole with ease!)
- Reusable (if necessary, the cable can be removed and the junction box reused)
- Prewired with clearly labelled cable inlets (easy to wire, hard to make mistakes)
- Made at the Quickwire factory in the UK (great quality, and supports British manufacturing)
- Screwless, push-fit design - no screws, clips, clamps, or covers! (No screwdriver needed, it’s really easy to use)
23mm x 31mm x 84mm (wired)
Conductor Size:
1.0mm² - 1.5mm²
Twin & Earth (CPC) Solid cores
Class 1 (conductors)
Note:
This product is designed for lighting installations only
Technical:QuickWire Brochure - 1.75mb pdf QWSL34 Datasheet - 1mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
QW SL34
Quickwire Switch & Load Junction Box - Maintenance Free |
